Emtelle
Microduct DB2 2x14 / 10 LF
2 WAY 14/10MM GREEN 1000M
Article number: Suppl. article no:
5045273
40053
to see price and stock

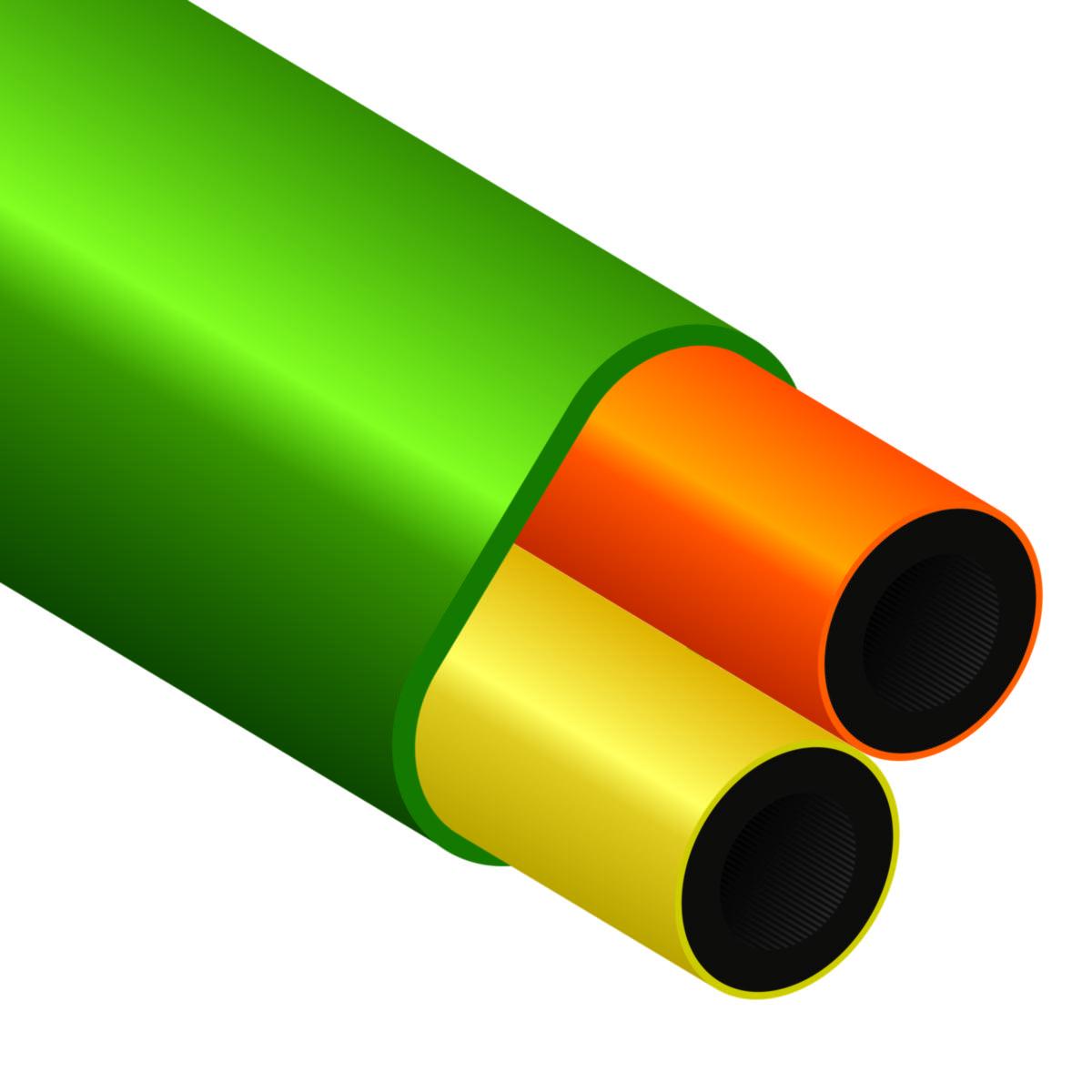

Bundled micro pipes DBMF 2 (2x14/10mm) for direct installation in the ground. Used as a duct for blowing in blown fiber or cable with OD <8mm
- Article number: 5045273
- Suppl. article no: 40053
- Material class QR6441
Technical data
- Packagin Size: 1000 M
- Outer diameter: 14 mm
- Inner diameter: 10 mm
- Number of glass fibre ducts: 2
- Bundle diameter: 15.4-29.4 mm
- Colour outer sheath: Green
- Colour inner sheath: Green
- Suitable for: Outside
- Flame resistant: No
- Halogen free: No
- Armouring/reinforcement: None
- Metal-free: Yes
- Transparent: No
- Separable: Yes
- Gastight: Yes
- Watertight: Yes
- Max. internal pressure (permanently): 15 bar
- Max. internal pressure (momentarily): 15 bar
- Suitable for outdoor installation: Yes
- Suitable for underground installation: Yes
- REACH Date: 2024-07-17
- REACH Information obligation: No
