Eurolan

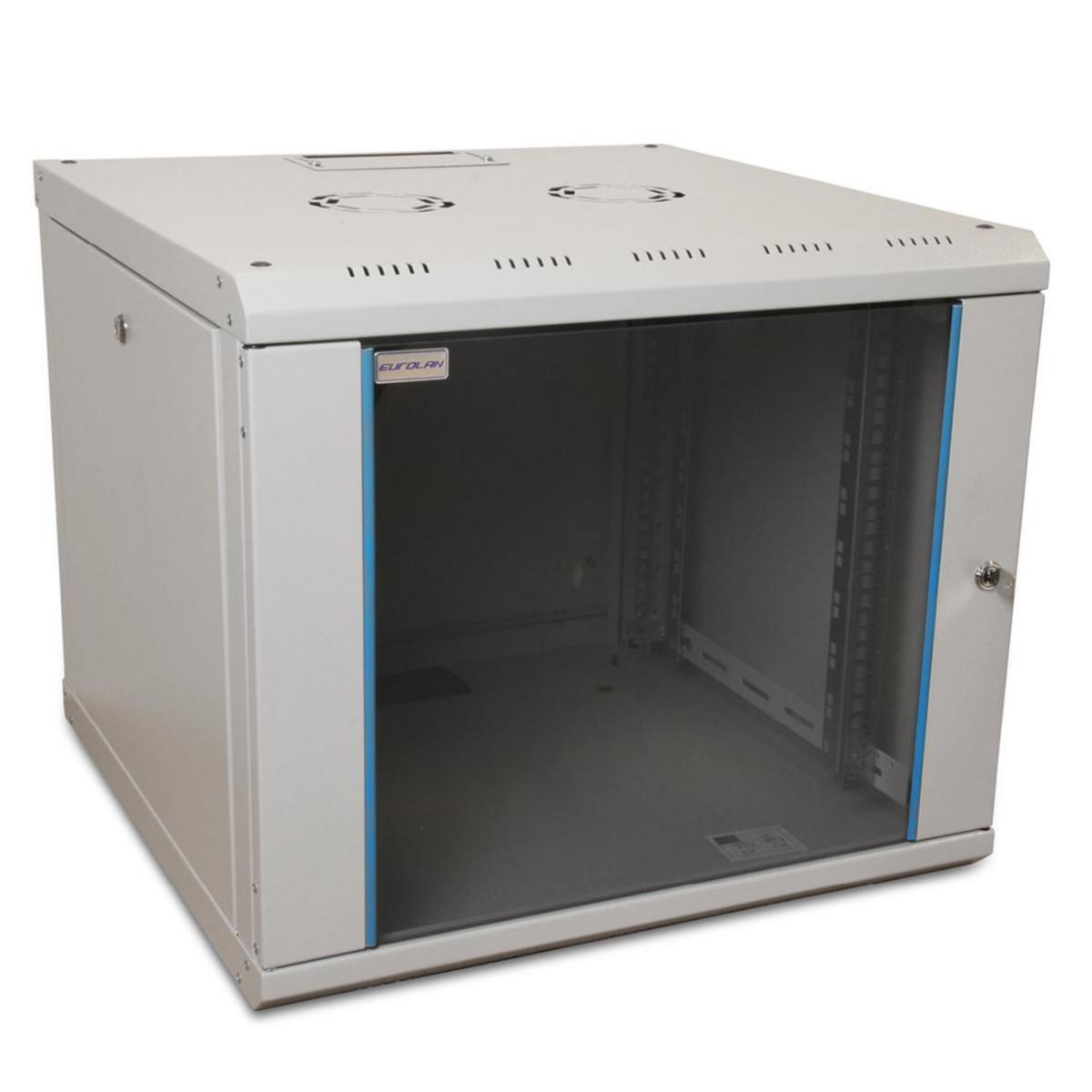

Wall cabinet 19" 60W with glass door, Eurolan
WALLCAB 7U 600X600 GLASS DOOR 60W-07-65-08GY
Article number: Suppl. article no:
2598573
60W-07-65-08GY
to see price and stock
The Eurolan Rackwall universal wall mount cabinet is intended for active and passive network equipment in broadband or office networks. Max. load: 100 kg. Front door: The door is either in tinted glass with a metal frame around it or completely in metal, both with locks. The movable door can be opened both to the left and right and can be easily changed depending on which direction you prefer. Side panels: Removable, with lock. Rear door: Removable with a fold-down section with lock. 19" tracks: Zinc-coated steel tracks, adjustable in depth. The 450 mm deep cabinet is equipped with one pair of tracks and the 600 mm deep cabinet has two pairs of tracks. Cable inputs: Two on the rear panel, one on the top and one on the bottom. Grounding: The frame and removable components are equipped with ground ink. Painting: High-quality powder paint. Color: Light gray 7035 (metal side panels).
- Article number: 2598573
- Suppl. article no: 60W-07-65-08GY
- Ean no: 7333089005424
- Material class QM520B
Technical data
- Type: 60W-07-65-08GY
- Mounting level: Front and rear
- Type of profile rail: L-shape
- Number of height units: 7
- With glazed door: Yes
- Width: 600 mm
- Material front door: Glass
- Depth: 600 mm
- Material rear door: Steel
- Colour: Grey
- With front door: Yes
- Height: 381 mm
- Number of doors: 1
- Material: Steel
- Demountable: No
- With rear door: Yes
- With earthing: Yes
- With sidewall: Yes
- With base: No
- With roof plate: Yes
- Model: With permanent frame
- Modular spacing: 482.6 mm (19 inch)
- RAL-number: 7035
- Degree of protection (IP): IP20
- Type of ventilation: Passive
- Surface finishing: Powder coating
- Rear door locking system: 1-point
- Front door locking system: 1-point
- Max. load capacity: 100 kg
