Eurolan

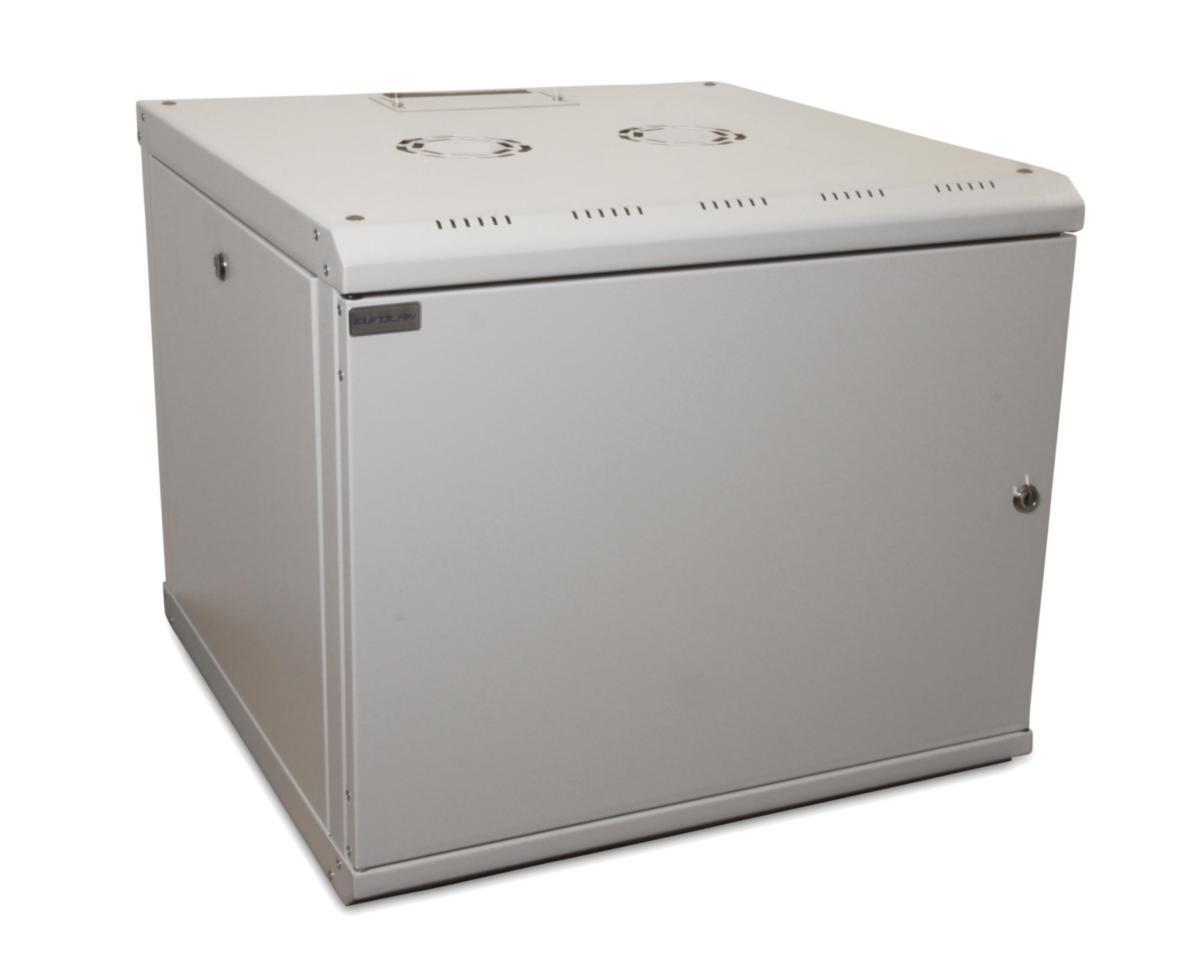

Wall-mounted cabinet 19" with plate door, Eurolan
VÄGGSKÅP ASSA 19" 9HE 600X580 60WA-09-65-09GY
Article number: Suppl. article no:
2502035
60WA-09-65-09GY
to see price and stock
The Eurolan Rackwall universal wall mount cabinet is designed for active and passive network equipment in broadband or office networks.
Height: 7, 9, 12, 16 or 20U. Max. load: 100 kg. Front door: The door is either in tinted glass with a metal frame around or completely in metal, both with locks. The movable door can be opened both to the left and to the right and can be easily adapted based on the preferred direction. Side panels: Movable, with lock. Rear door: Movable with a foldable section with lock. 19" slot: Zinc-coated steel rail, adjustable depth. The 450 mm deep cabinet is equipped with one pair of rails and the 560 mm deep cabinet has two pairs of rails. Cable entries: Two on the rear panel, one at the top and one at the bottom. Earthing: The frame and the removable components are equipped with a ground plate. Lacquering: High-quality powder coating. Colour: Light grey 7035 (side panels in metal).
Height: 7, 9, 12, 16 or 20U. Max. load: 100 kg. Front door: The door is either in tinted glass with a metal frame around or completely in metal, both with locks. The movable door can be opened both to the left and to the right and can be easily adapted based on the preferred direction. Side panels: Movable, with lock. Rear door: Movable with a foldable section with lock. 19" slot: Zinc-coated steel rail, adjustable depth. The 450 mm deep cabinet is equipped with one pair of rails and the 560 mm deep cabinet has two pairs of rails. Cable entries: Two on the rear panel, one at the top and one at the bottom. Earthing: The frame and the removable components are equipped with a ground plate. Lacquering: High-quality powder coating. Colour: Light grey 7035 (side panels in metal).
- Article number: 2502035
- Suppl. article no: 60WA-09-65-09GY
- Material class QM520B
Technical data
- Mounting level: Front and rear
- Type of profile rail: L-shape
- Number of height units: 9
- With glazed door: No
- Width: 600 mm
- Material front door: Steel
- Depth: 580 mm
- Material rear door: Steel
- Colour: Grey
- With front door: Yes
- Height: 470 mm
- Number of doors: 1
- Material: Steel
- Demountable: No
- With rear door: Yes
- With earthing: Yes
- With sidewall: Yes
- With base: No
- With roof plate: Yes
- Model: Other
- Modular spacing: 482.6 mm (19 inch)
- RAL-number: 7035
- Degree of protection (IP): IP20
- Type of ventilation: Passive
- Surface finishing: Powder coating
- Rear door locking system: 1-point
- Front door locking system: 1-point
