Siemens

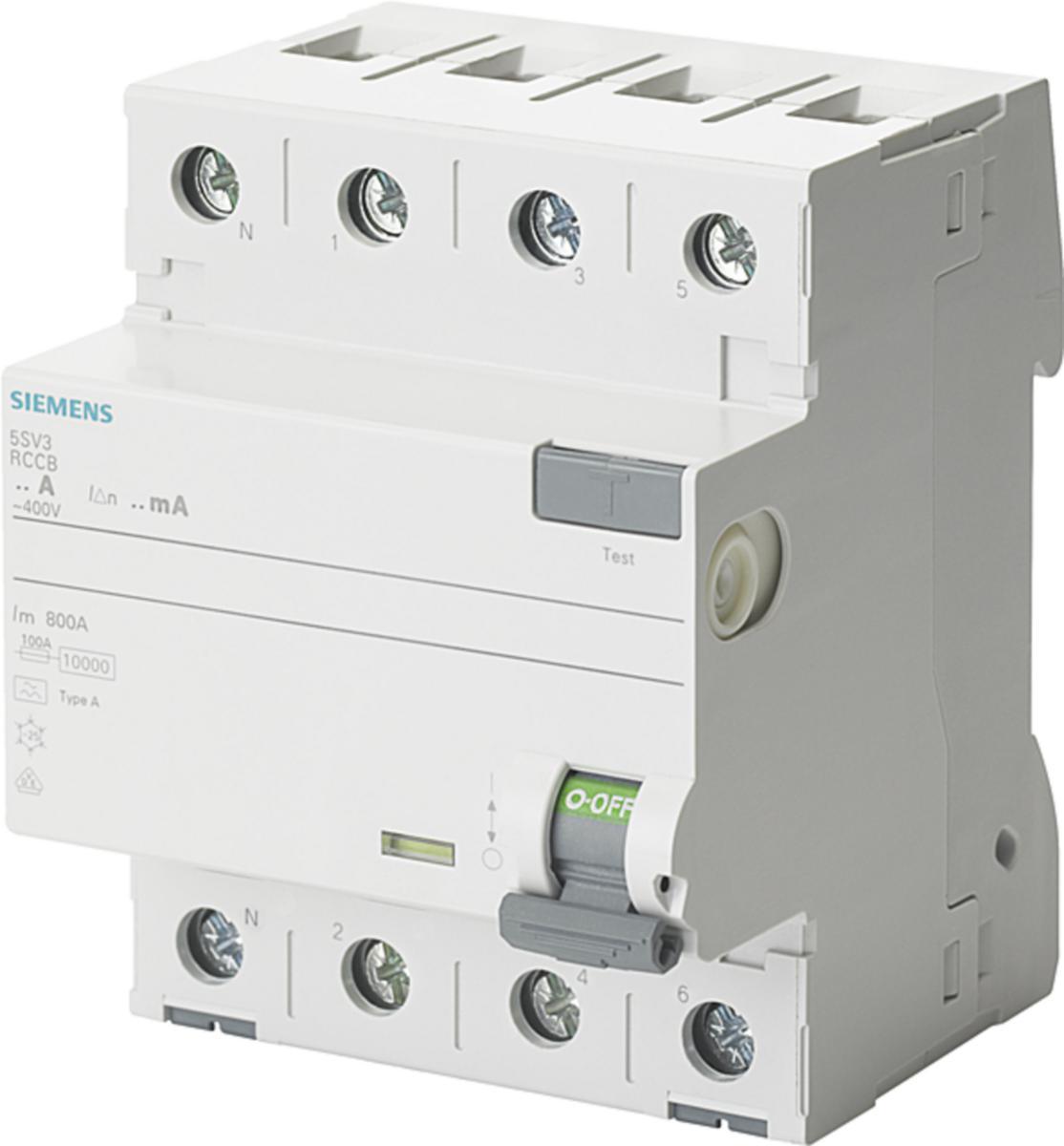

Earth fault breaker 5SV3 4-pole, with neutral to left
RCCB TYPE A 40/4 30MA 4MW NL 5SU1354-7KK06
Article number: Suppl. article no:
2167805
5SV3344-6KL
to see price and stock
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.](/globalassets/site-images/sv_icons/step/undviks.png)
![Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen. Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.](/globalassets/site-images/sv_icons/step/reachinformationrequestobligation.png)
An earth fault breaker is used as a supplementary protection to prevent personal injury and fires caused by an electric overload through insulation errors, damage or unintentional contact. For personal protection, and earth fault breaker is used with 10 or 30 mA error current sensitivity and for fire protection, and earth fault breaker with max 300 mA error current sensitivity is used. Earth fault breaker type A can handle detecting both alternating current and pulsating direct current errors. Each earth fault breaker must have its own neutral base/neutral bar, and neutral must be separated from the protective conductor. Earth fault breaker is connected upstream of the group or electrical apparatus to be protected. The earth fault breaker’s must be checked frequently with the test button that is on every earth fault breaker. When the test button is pressed, a fault current is simulated and the earth fault breaker must trigger.
- Article number: 2167805
- Suppl. article no: 5SV3344-6KL
- Ean no: 4001869430126
- Material class QL600B
Technical data
- Type: 5SV3344-6KL
- Leakage current type: A
- Number of poles: 4
- Rated voltage: 400 V
- Rated current: 40 A
- Rated fault current: 30 mA
- Built-in depth: 70 mm
- Width in number of modular spacings: 4
- Surge current capacity: 1 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 10 kA
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 0.75-35 mm²
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Mounting method: DIN rail
- Ambient temperature during operating: -25-45 °C
- With interlocking device: Yes
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide | 1-Propanone, 2-methyl-1-[(4-methylthio)phenyl]-2-(4-morpholinyl)-
- REACH Date: 2022-03-14
- REACH Information obligation: Yes
