Schneider Electric

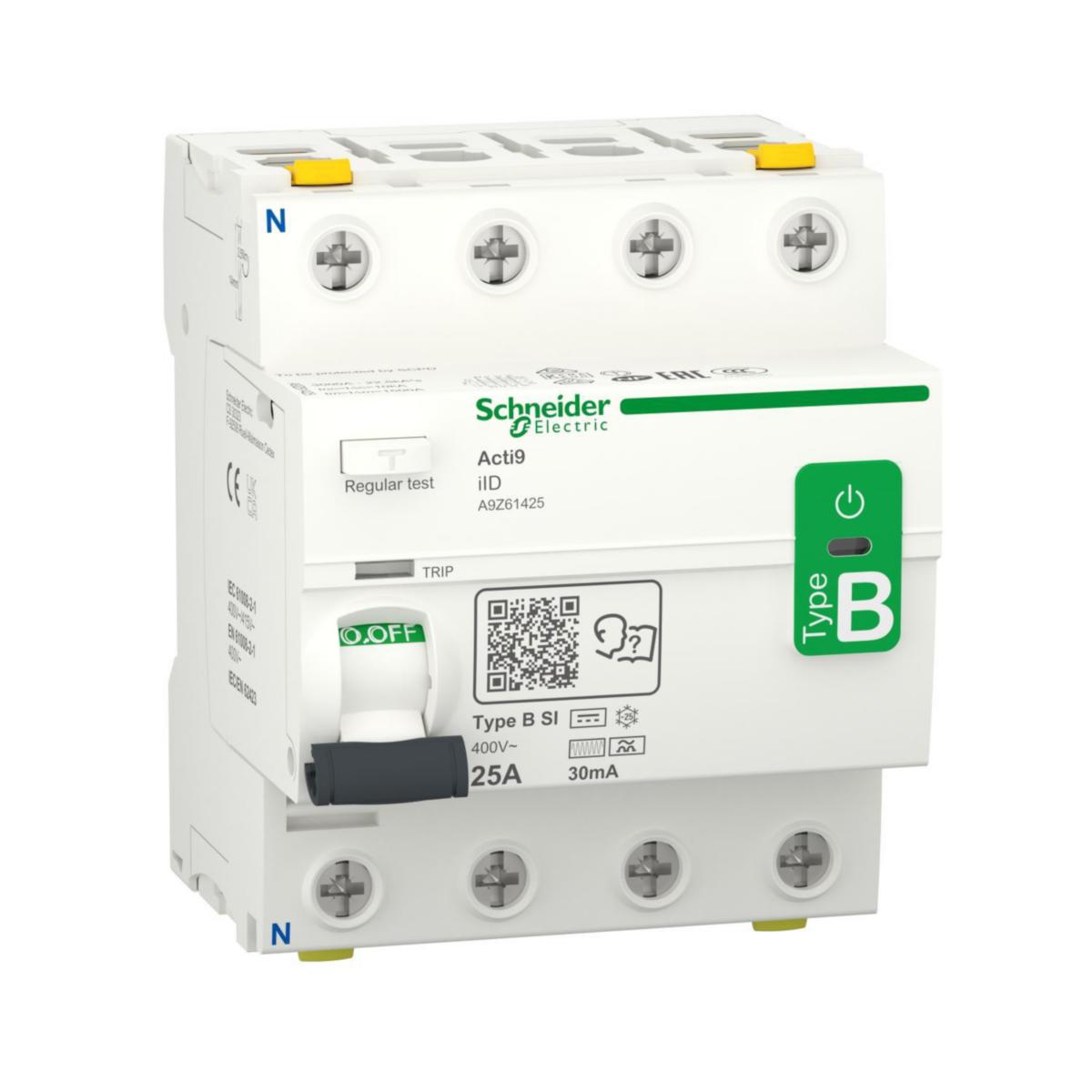

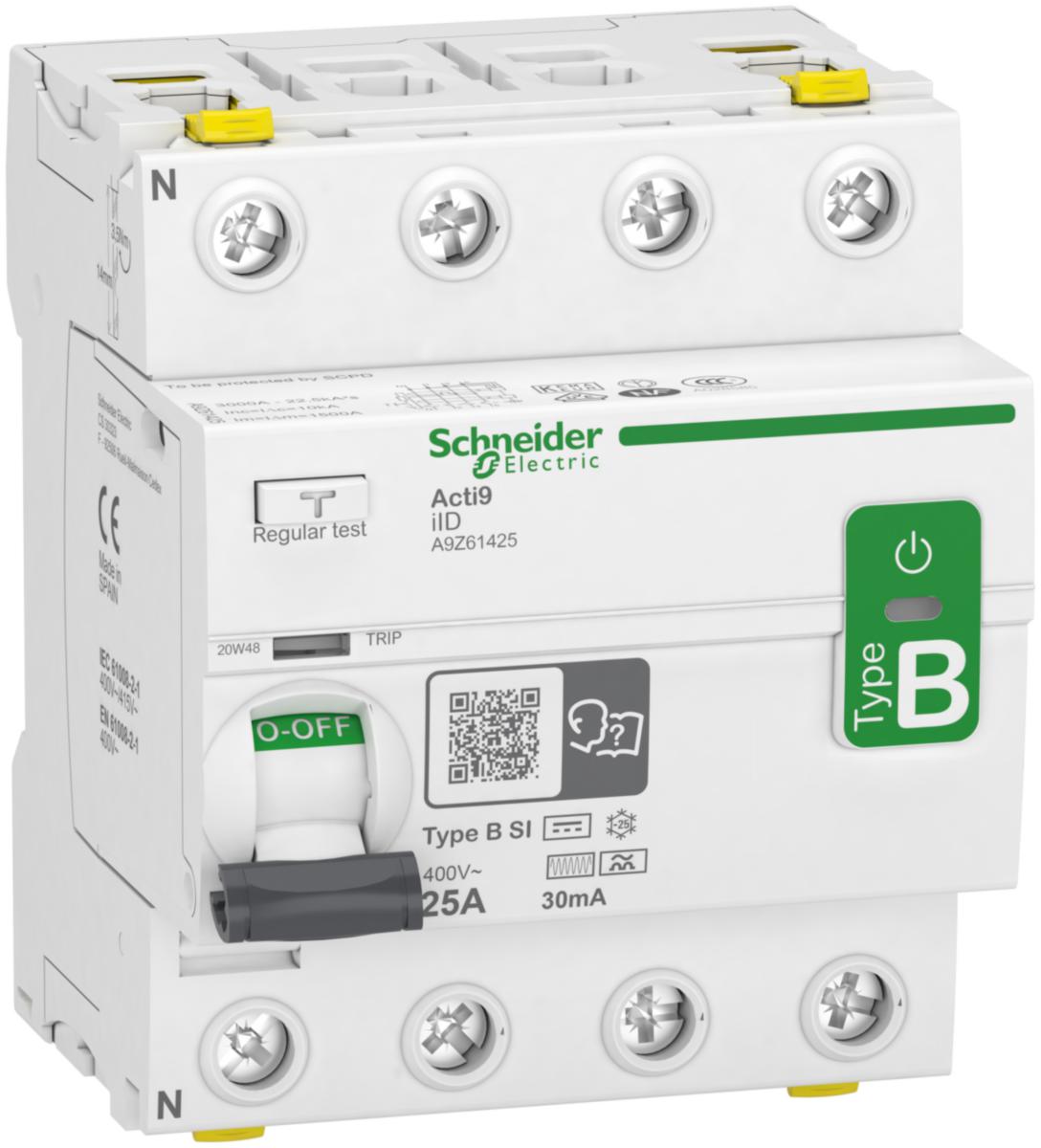

Earth fault breaker Acti9 4-pole type B
RCCB 4P 25A 30MA B-SI TYPE A9Z61425
Article number: Suppl. article no:
2165204
A9Z61425
to see price and stock
B-Class earth fault breaker intended for installations that include frequency converter.
- Article number: 2165204
- Suppl. article no: A9Z61425
- Ean no: 3606489502690
- Material class QL540A
Technical data
- Packagin Size: 1 ST/27 ST
- Leakage current type: B
- Number of poles: 4
- Rated voltage: 400 V
- Rated current: 25 A
- Rated fault current: 0.03 A
- Built-in depth: 44 mm
- Width in number of modular spacings: 4
- Surge current capacity: 3 kA
- Selective protection: No
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Mounting method: DIN rail
- Pollution degree: 3
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-60 °C
- With interlocking device: Yes
- Product series: Acti 9
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
