Schneider Electric

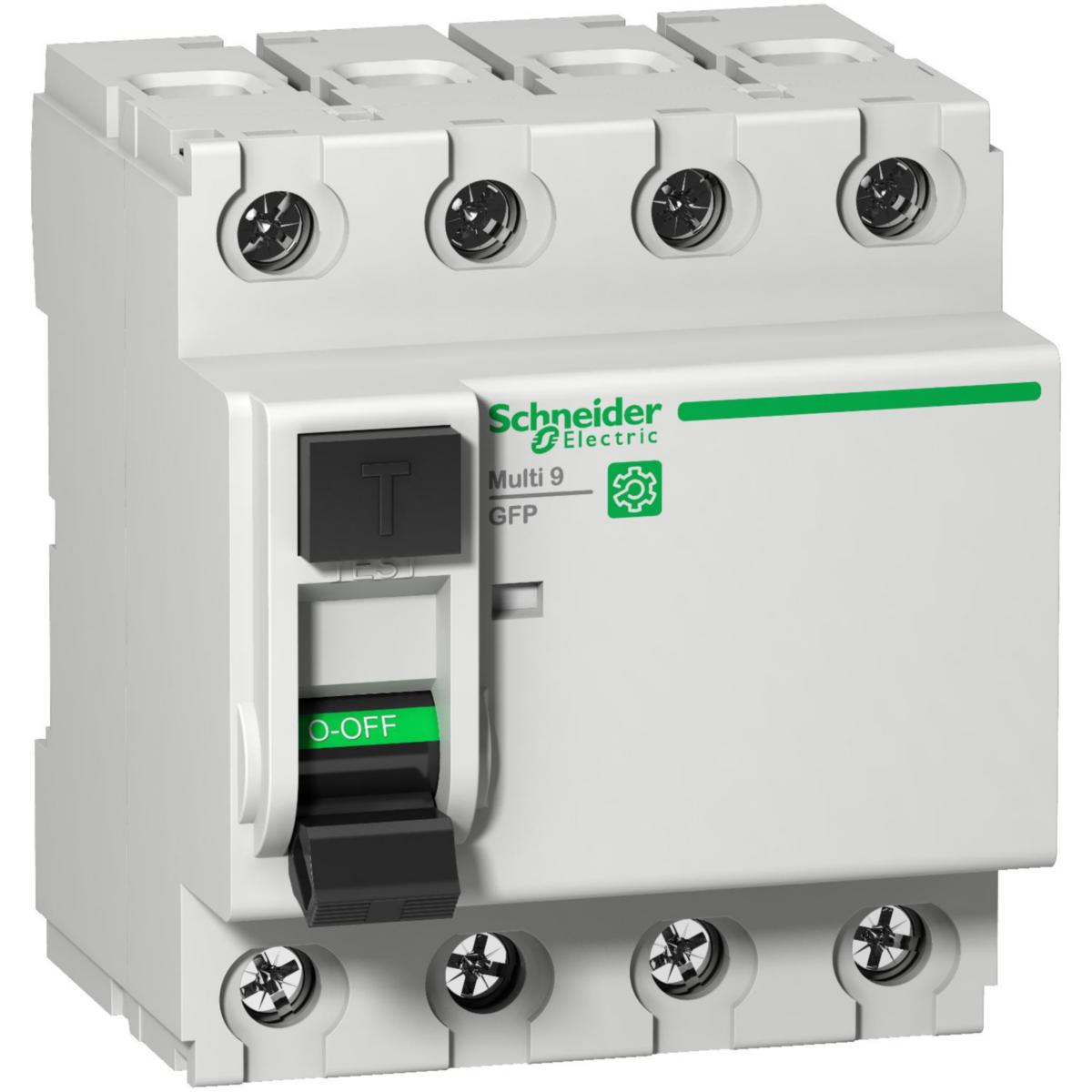

Ground fault circuit interrupter GFP UL1053 A-SI
RCCB M9 GFP 4P 40A 260MA A-SI M9R84440
Article number: Suppl. article no:
2165199
M9R84440
to see price and stock
Multi9 is a series especially for OEM builders. Lots of accessories such as phase rails, auxiliary contacts, earth fault protection etc. make it a complete series.
- Article number: 2165199
- Suppl. article no: M9R84440
- Ean no: 3606481198549
- Material class QL540A
Technical data
- Packagin Size: 1 ST/27 ST/27 ST
- Leakage current type: A
- Number of poles: 4
- Rated voltage: 240 V
- Voltage type: AC
- Rated current: 40 A
- Rated fault current: 0.26 A
- Built-in depth: 44 mm
- Width in number of modular spacings: 4
- Surge current capacity: 10 kA
- Selective protection: Yes
- Short-circuit breaking capacity (Icw): 1.5 kA
- Frequency: 50/60 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: No
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Mounting method: DIN rail
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 440 V
- Ambient temperature during operating: -25-60 °C
- With interlocking device: Yes
- Explosion-proof: No
- Product series: Multi 9
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
