Schneider Electric

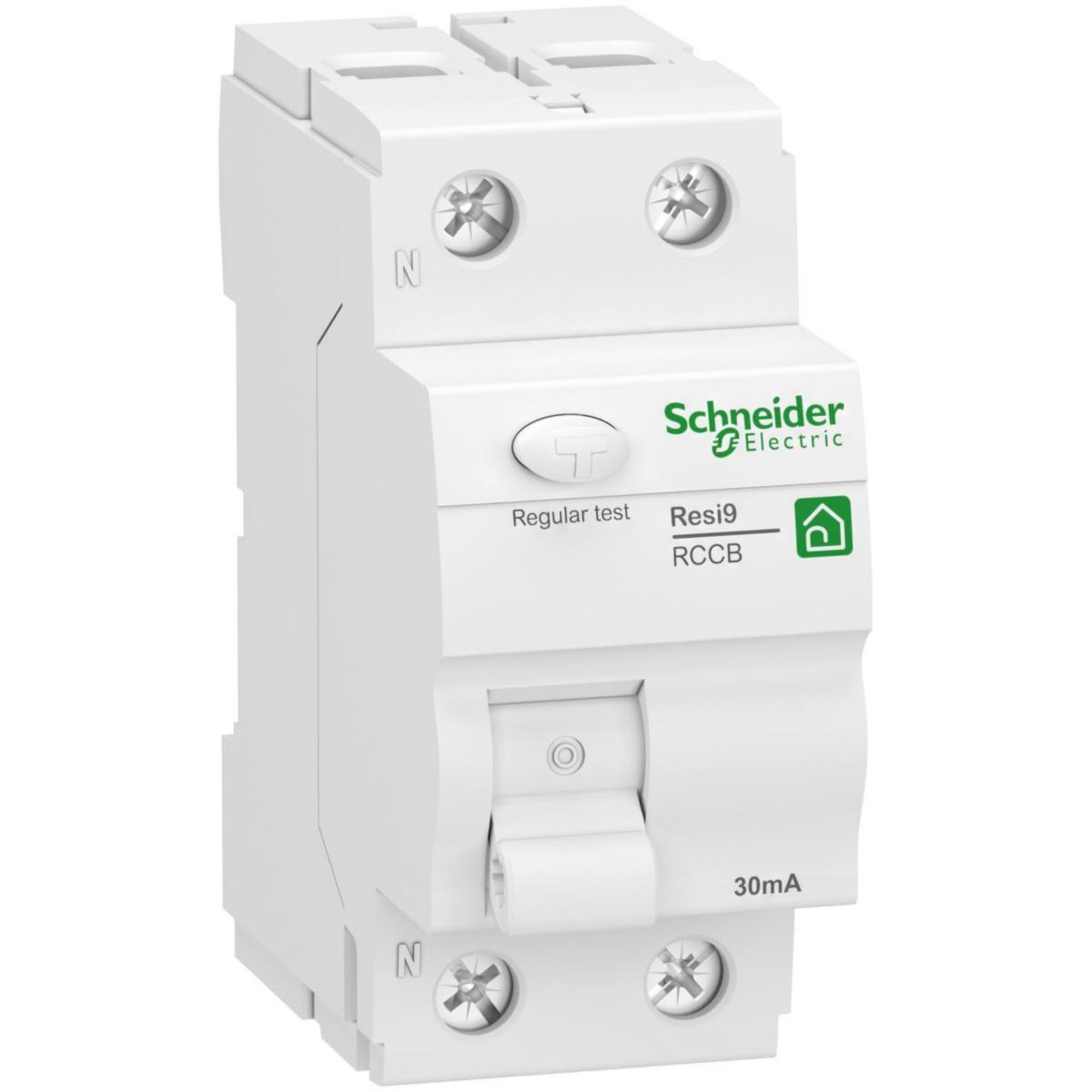

Earth fault breaker Resi9
RCCB RESI9 2P 25A 30MA R9R02225
Article number: Suppl. article no:
2165089
R9R02225
to see price and stock
Earth leakage circuit breaker for personal protection 30 mA A class
- Article number: 2165089
- Suppl. article no: R9R02225
- Ean no: 3606481334145
- Material class QL5501
Technical data
- Packagin Size: 1 ST/4 ST/24 ST
- Leakage current type: A
- Number of poles: 2
- Rated voltage: 230 V
- Rated current: 25 A
- Rated fault current: 30 A
- Built-in depth: 44 mm
- Width in number of modular spacings: 2
- Surge current capacity: 0.25 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 6 kA
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Mounting method: DIN rail
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Ambient temperature during operating: -25-40 °C
- With interlocking device: No
- Product series: Resi9
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
