Hager

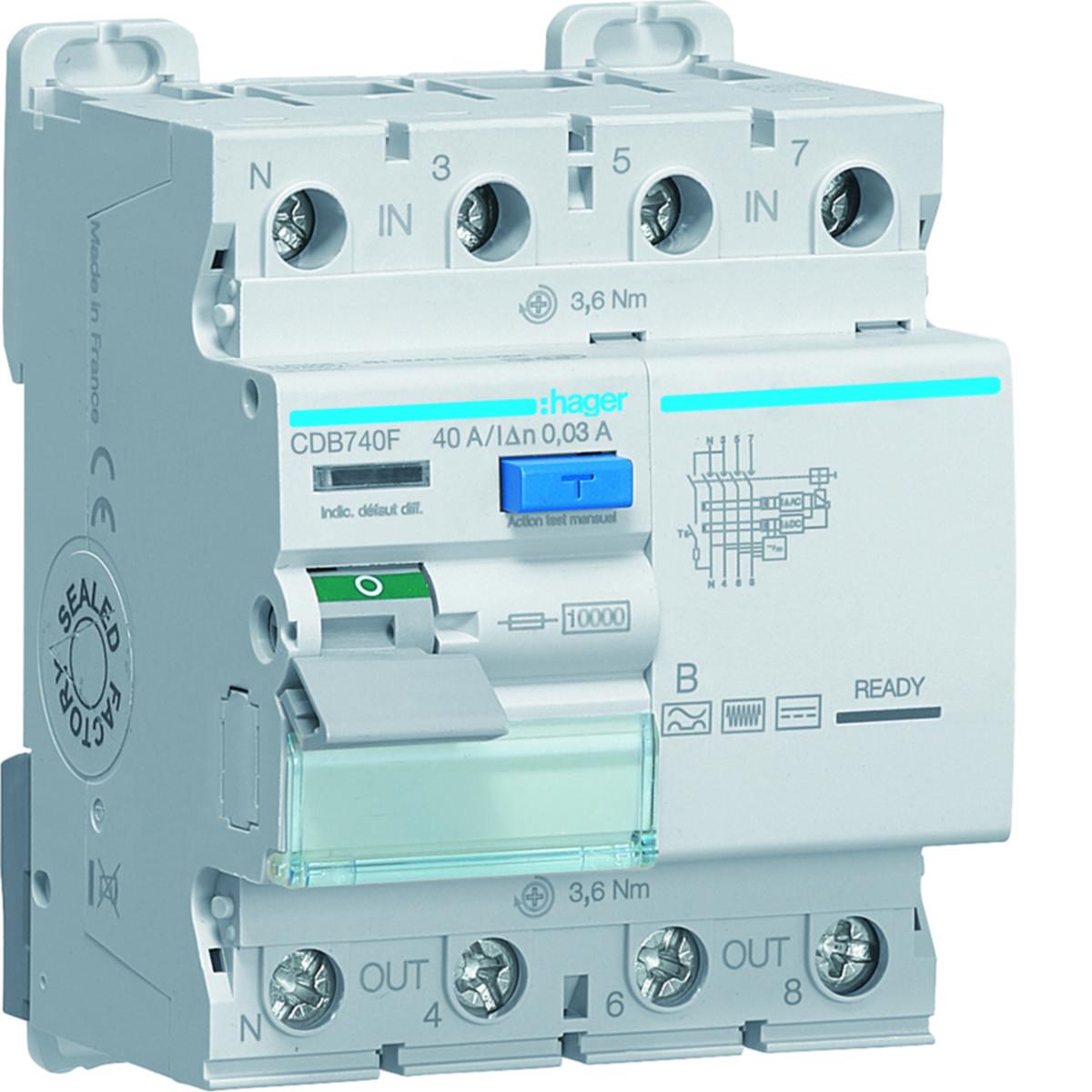

Earth fault circuit breaker 4-pole 30mA type B
RCCB 3P+N 40A 30MA B CDB740F
Article number: Suppl. article no:
2163831
CDB740F
to see price and stock
The earth-fault circuit breakers are of the electromechanical type. They are available in 2 Pole and 4 Pole versions type B detects all types of fault currents; pure alternating current and smoothed, pulsating and pure direct current. Even mixed frequencies up to 1 MHz are detected and broken in the event of a fault in a reliable manner. With rated fault current 30mA and 300mA. All can be provided with an auxiliary contact to indicate that the earth fault circuit breaker has tripped.
- Article number: 2163831
- Suppl. article no: CDB740F
- Material class QL240A
Technical data
- Packagin Size: 1 ST/33 ST/33 ST
- Leakage current type: B
- Number of poles: 4
- Rated voltage: 400 V
- Voltage type: AC
- Rated current: 40 A
- Rated fault current: 0.03 A
- Built-in depth: 70 mm
- Width in number of modular spacings: 4
- Surge current capacity: 5 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 10 kA
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1-25 mm²
- Connectable conductor cross section multi-wired: 1-16 mm²
- Mounting method: DIN rail
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 400 V
- Ambient temperature during operating: -25-70 °C
- With interlocking device: Yes
- REACH Date: 2022-11-23
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
