Hager

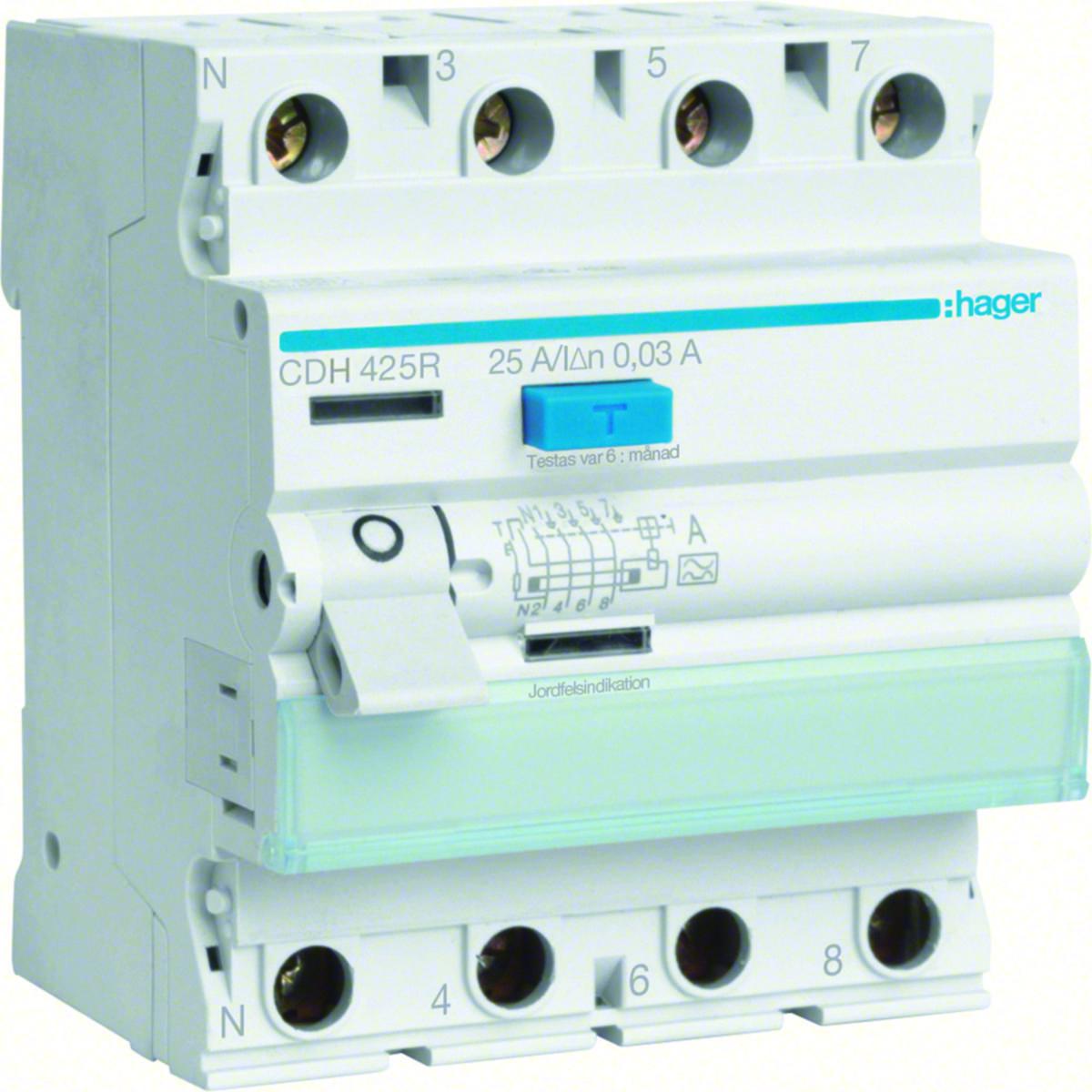

Earth fault breaker 4-pole type HI, extra disruption-proof
RCCB 4P 25A 30MA HI CDH425R
Article number: Suppl. article no:
2163611
CDH425R
to see price and stock
HI earth fault breaker can distinguish inequalities between earth and phase side from actual earth fault. It can also identify high frequency currents or currents that are caused by connections and disconnections, that usually result in faulty trippings. Traditional earth fault breakers can trip if overcurrents occur (lightening strikes or other causes of transients), which this type of earth fault breaker does not do. Earth fault breakers is time delayed 200ms.
- Article number: 2163611
- Suppl. article no: CDH425R
- Ean no: 3250611614586
- Material class QL2400
Technical data
- Packagin Size: 1 ST/36 ST
- Type: CDH425R
- Leakage current type: A
- Number of poles: 4
- Rated voltage: 400 V
- Voltage type: AC
- Rated current: 25 A
- Rated fault current: 0.03 A
- Built-in depth: 70 mm
- Width in number of modular spacings: 4
- Surge current capacity: 3 kA
- Selective protection: No
- Short-circuit breaking capacity (Icw): 6 kA
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1-25 mm²
- Connectable conductor cross section multi-wired: 1-16 mm²
- Mounting method: DIN rail
- Pollution degree: 2
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-40 °C
- With interlocking device: No
- REACH Date: 2022-11-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
