Hager

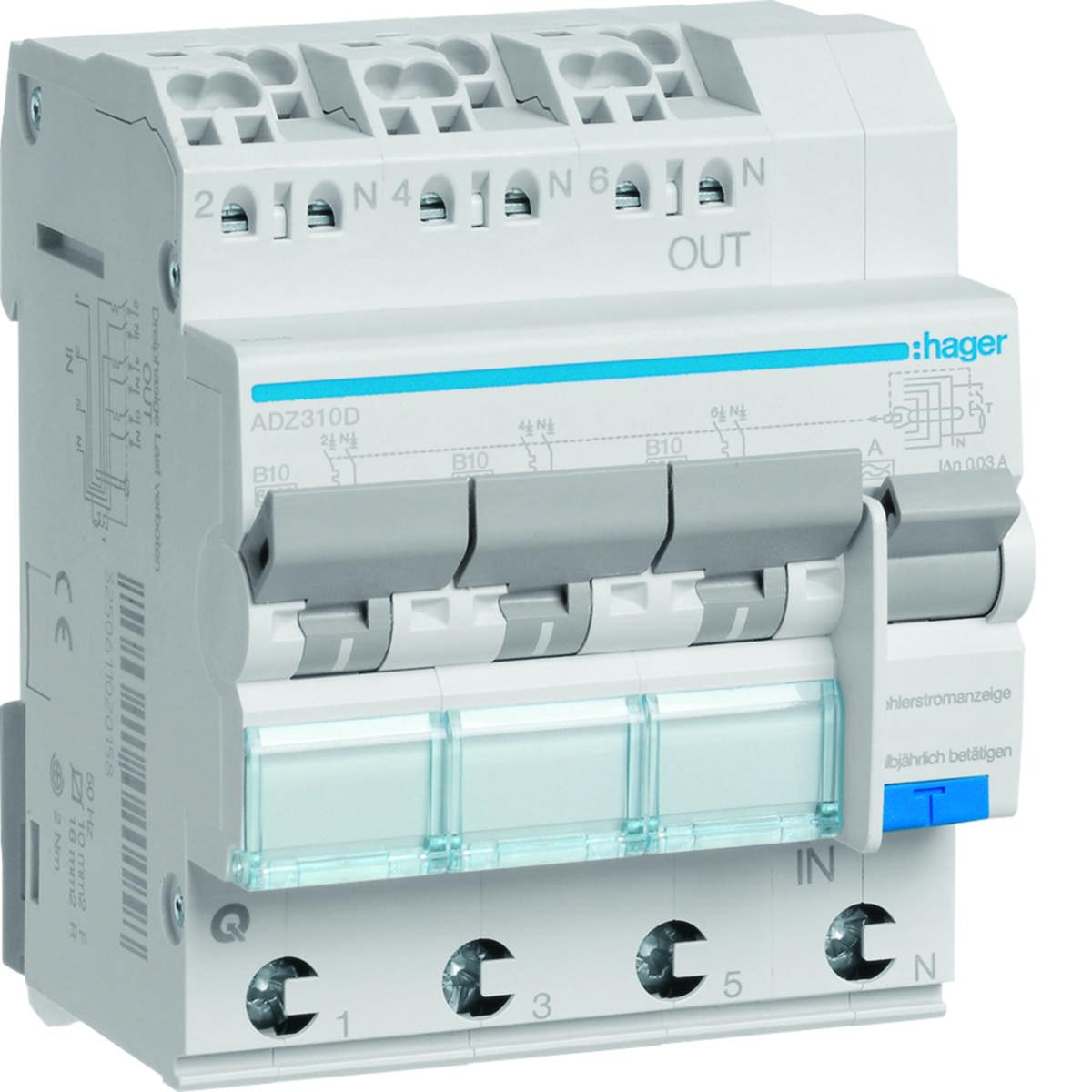

Residual current circuit breaker ADZ, B characteristics, 6kA, Hager
SINGLE ANGLE FLANGE-LIGHT METAL
Article number: Suppl. article no:
2163818
ADZ310D
to see price and stock
Personal protection switch with QuickConnect connection. The personal protection switch 3 x 1- pole + N is ideal for installation in homes. The product is three 1-pole mini-switches for three 230 V circuits with one earth fault circuit breaker. The zero can be placed on either the right or left side of the circuit breaker.
- Article number: 2163818
- Suppl. article no: ADZ310D
- Ean no: 3250611020134
- Material class QL2600
Technical data
- Packagin Size: 1 ST/36 ST/864 ST
- Number of poles (total): 4
- Number of protected poles: 3
- Rated current: 10 A
- Rated fault current: 0.03 A
- Rated short-circuit breaking capacity according to IEC 60947-2: 6 kA
- Release characteristic: B
- Leakage current type: A
- Rated voltage: 230 V
- Frequency: 50 Hz
- Voltage type: AC
- Width in number of modular spacings: 4
- Rated short-circuit breaking capacity Icn according to EN 61009-1: 6 kA
- Current limiting class: 3
- Anti-nuisance tripping version: No
- Degree of protection (IP): IP20
- Over voltage category: 3
- Concurrently switching neutral conductor: Yes
- Pollution degree: 2
- Surge current capacity: 3 kA
- Ambient temperature during operating: -25-70 °C
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- With interlocking device: Yes
- Disconnection characteristic: Undelayed
- Flush-mounted installation: Yes
- Built-in depth: 70 mm
- REACH Date: 2022-11-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
