Ifö Electric

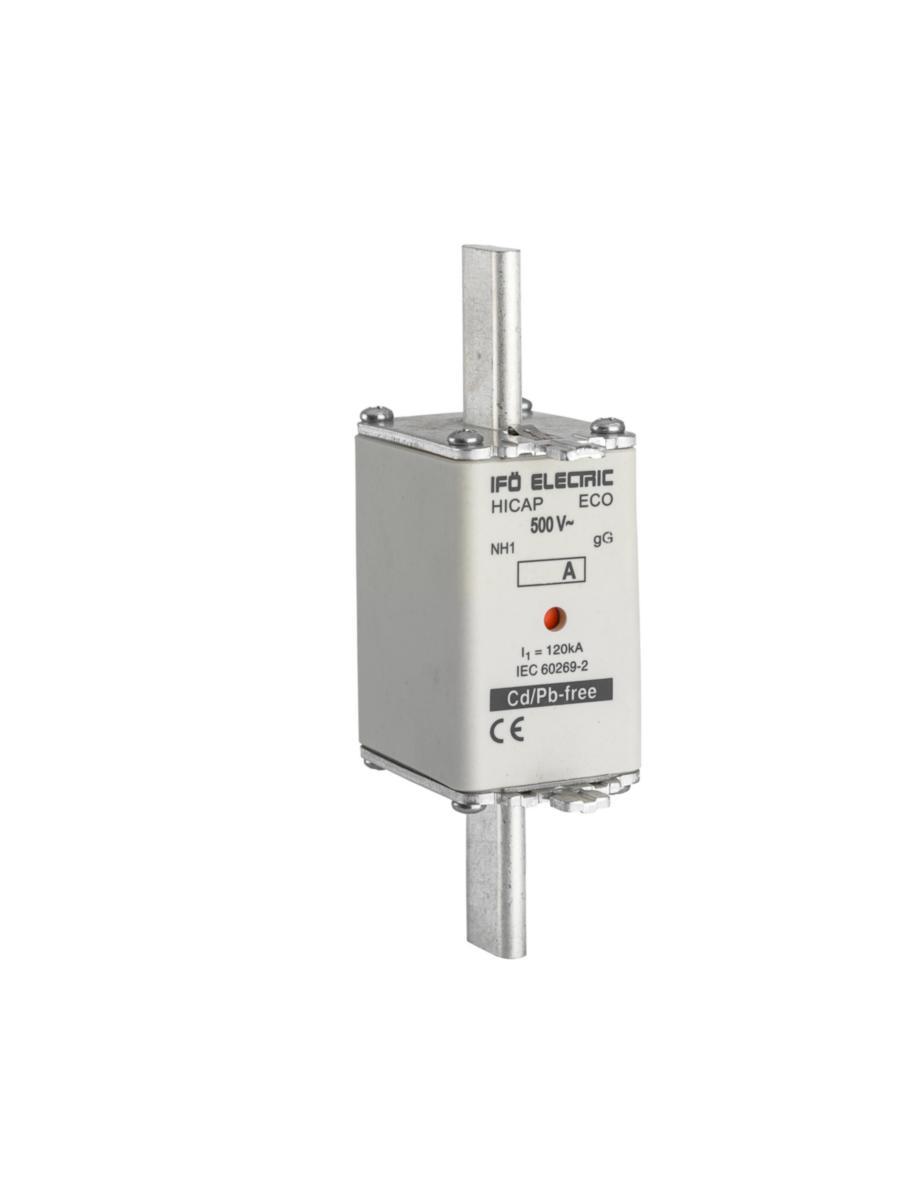

Ifö Hicap, ECO, gG, size 1, 500V
HICAP ECO GG 1 200A 500V 1 200 200 200 K
Article number: Suppl. article no:
2044326
703200
to see price and stock
Hicap Eco gG 500 V is an environmentally-friendly, lead and cadmium-free blade fuse for protecting cables. The fuse meets IEC 60269 and has high breaking ability, excellent selectivity, an optimized melting characteristics. Combination indication provides 100% indication in all types of installations.
- Article number: 2044326
- Suppl. article no: 703200
- Ean no: 7312907032002
- Material class QL0700
Technical data
- Packagin Size: 3 ST
- Type: GG - GG
- Fuse construction type according to IEC 60269: NH1
- Rated voltage AC: 500 V
- Rated current: 200 A
- Rated voltage DC: 250 V
- Voltage type: AC/DC
- Utilization category according to IEC 60269: gL/gG (cable protection/equipment protection)
- Type of fuse status indicator: Combination fuse status indicator
- Insulated metal gripping lugs (IMGL): No
- Power loss at rated current: 18 W
- Rated voltage: 500 V
- REACH Date: 2022-02-04
- REACH Information obligation: No
