AhlsellProductsElectricMains power supply equipment 06-0907 Wiring cabinets and accessoriesCable splice1 kV
Raychem

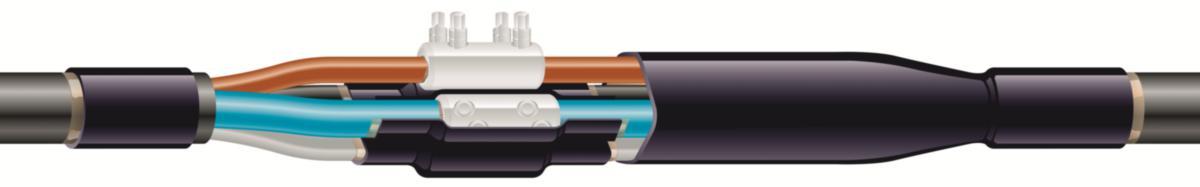

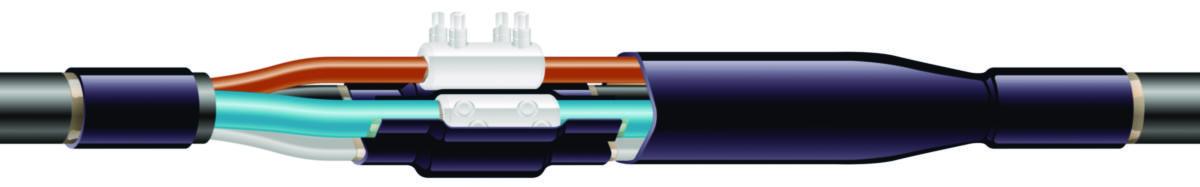

Cable joint 1kV LJSB, hot shrink joint
LV JOINT LJSB-4X010-050-SE02
Article number: Suppl. article no:
0716504
EN5520-000
to see price and stock
For jointing of plastic insulated ground cable, 4-conductor, 1kV. Base insulation and outer casing are made of thick-walled adhesive shrink tubing. The joint contains screw cutter sleeves that cover a large area area with few sizes and do not require special tools. Including screw joint sleeves.
- Article number: 0716504
- Suppl. article no: EN5520-000
- Ean no: 4042368124680
- Replaces art.nbr: 0716151 0716497
- Material class QB5200
Technical data
- Packagin Size: 1 ST/10 ST
- Type: LJSB-4X010-050-SE02
- Number of conductors: 4
- Nominal cross section conductor: 10-50 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
- Model: Heat-shrink
- Connection accessories included: Screw connector with shear-off head
- Halogen free: No
- For connection of paper- with plastic insulated cables: No
- Insulating material: Plastic
