TE Connectivity/Raychem

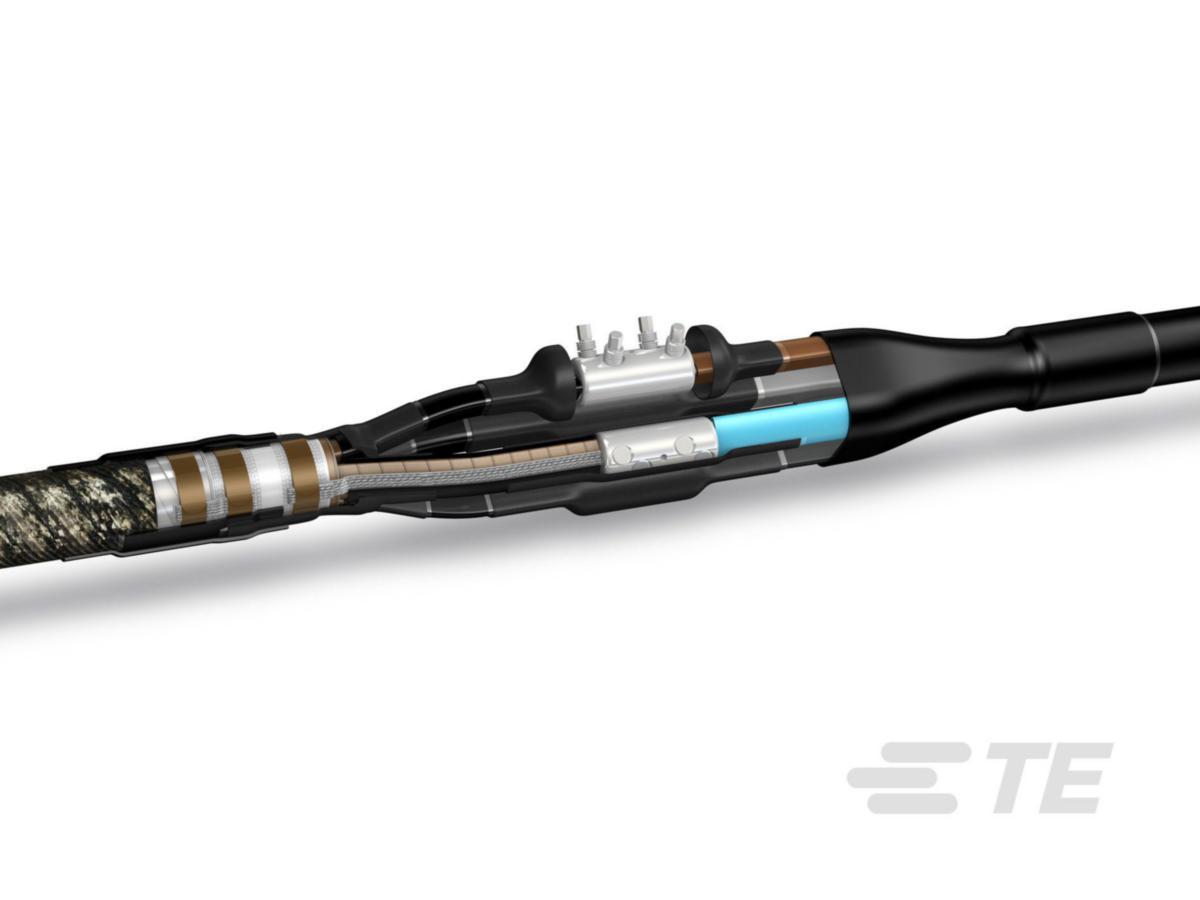

Cable joint 1kV, LJTM
CABLE JOINT 1KV SCREW PA-PL
Article number: Suppl. article no:
0716208
BM3835-000
to see price and stock
Transition splice paper insulated 4-wire cable to plastic insulated 4-wire cable. The paper cable is rebuilt with heat-shrink tubing on phases and glued branch seal to enable splicing against plastic cable. Phase insulation is glued heat-shrink tubing and outer jacket glued folding sleeve. The screw splice sleeves cover a large area with few sises and do not require special tools.
- Article number: 0716208
- Suppl. article no: BM3835-000
- Ean no: 4042368054444
- Material class QB520A
Technical data
- Packagin Size: 1 ST/5 ST/5 ST
- Type: LJTM-W-4X010-050
- Number of conductors: 4
- Nominal cross section conductor: 10-50 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
- Model: Heat-shrink
- Connection accessories included: Screw connector with shear-off head
- With protective conductor: Yes
- With concentric shielding: No
- Halogen free: Yes
- For connection of paper- with plastic insulated cables: Yes
- Mining sector approval: No
- Insulating material: Paper/plastic
