TE Connectivity/Raychem

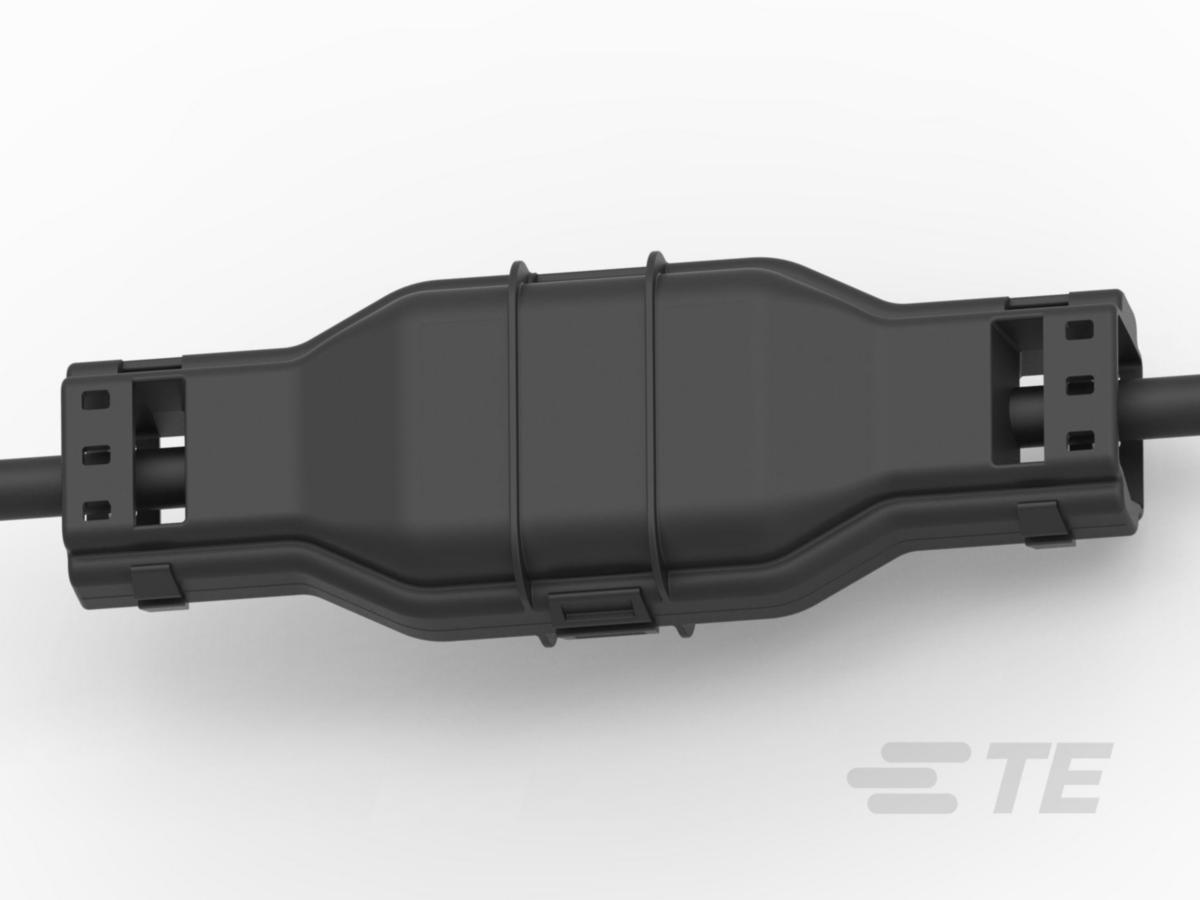

Cable joint 1 kV, Gelbox
JOINT
Article number: Suppl. article no:
0716088
E72165-000
to see price and stock
Use: For splicing of plastic-insulated earthed cable, 4- and 5-lead, up to 1kV.
Standard: Cenelec HD 623, IEC 61238–1.
Design: The splices are contained in a UV-resistant polypropylene cover that is very tough. The cover is filled with the patented PowerGel®. After splicing a lead, the user snaps together the two halves around the cable, and the splice is ready for use. Installation requires no special tools. The splice has an unlimited storage time, and its service life is at least 30 years.
Set contents: GelBox sets come complete with screw splice sleeves.
Standard: Cenelec HD 623, IEC 61238–1.
Design: The splices are contained in a UV-resistant polypropylene cover that is very tough. The cover is filled with the patented PowerGel®. After splicing a lead, the user snaps together the two halves around the cable, and the splice is ready for use. Installation requires no special tools. The splice has an unlimited storage time, and its service life is at least 30 years.
Set contents: GelBox sets come complete with screw splice sleeves.
- Article number: 0716088
- Suppl. article no: E72165-000
- Ean no: 4015899500865
- Material class QB520A
Technical data
- Packagin Size: 1 ST/10 ST/10 ST
- Type: GelBox 25-5
- Number of conductors: 5
- Nominal cross section conductor: 6-25 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
