TE Connectivity/Raychem
Cable joint 0.75kV, SMOE
JOINT
Artikelnummer: Lev. artikelnr:
0716520
786542000
för att se saldo och pris
Use: For plastic-insulated installation cables EKK, FKK, EKLK, FKLK, EKKL and FKKL 750 V.
Standard:Raychem PPR 603.

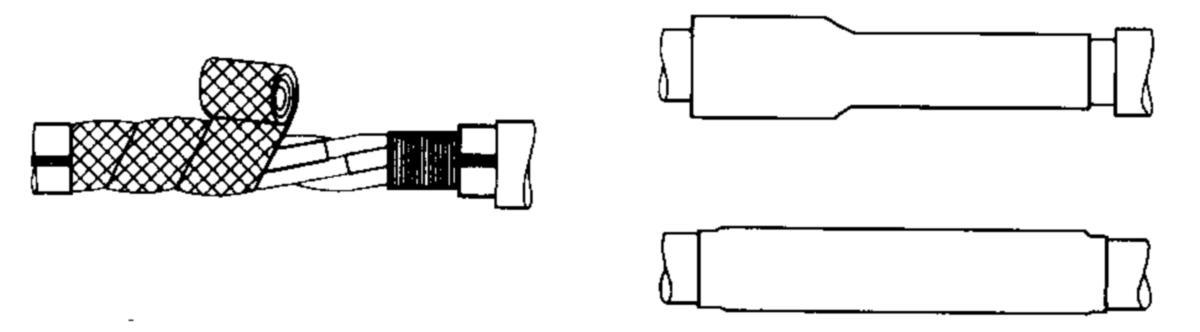

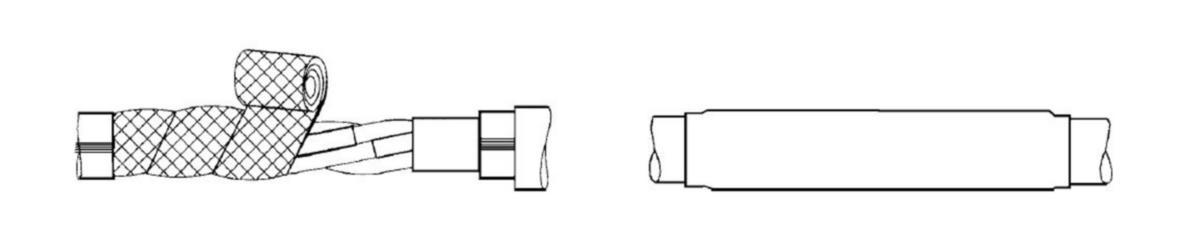

Design:Inner and outer sleeves are expanded so that they can be applied and then heat-shrunk. A hot air fan is recommended as the heating tool for this type of splice. The inner and middle sleeves are internally coated with adhesive that melts and seals during shrinking. The outer sleeve is white. All sleeves are made of flame-retardant, self-extinguishing material.
Set contents:5 inner sleeves, middle sleeve, outer sleeve, copper netting, and installation instructions. Splice sleeves not included.
Standard:Raychem PPR 603.
Design:Inner and outer sleeves are expanded so that they can be applied and then heat-shrunk. A hot air fan is recommended as the heating tool for this type of splice. The inner and middle sleeves are internally coated with adhesive that melts and seals during shrinking. The outer sleeve is white. All sleeves are made of flame-retardant, self-extinguishing material.
Set contents:5 inner sleeves, middle sleeve, outer sleeve, copper netting, and installation instructions. Splice sleeves not included.
- Article number: 0716520
- Suppl. article no: 786542000
- Ean no: 4042368733615
- Material class QB540A
Teknisk data
- Packagin Size: 1 ST/20 ST
- Type: SMOE 3234
- Number of conductors: 5
- Nominal cross section conductor: 1.5-2.5 mm²
- Rated voltage U0/U (Um): 0.6/1 (1.2) kV
