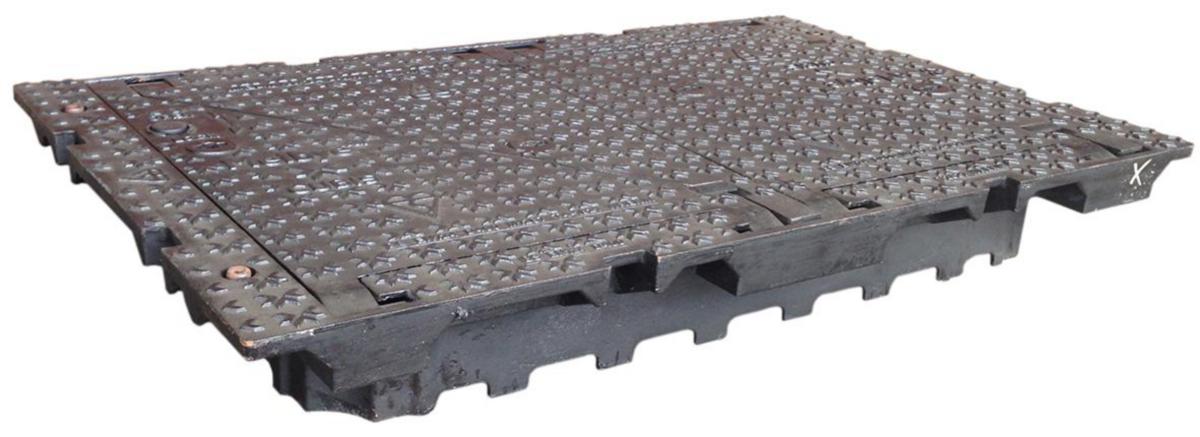

Cover for cable chamber FF12267 - DUCTAIL IRON COVER C2 D400
Melbye

Cover for cable chamber FF12267

DUCTAIL IRON COVER C2 D400
Article number:
0666349
Suppl. article no:
0666349





 to see price and stock
Produkten är miljöbedömd av SundaHus
Choose the right kind of cover that the installation requires - B125or D400. The B125 cover to FF12267 is manufactured in cast iron and is suitable for installation in parking areas and areas with slow moving vehicles. The B125 cover is lockable with a Penta Head Lock and has a 70mm frame. The D400 cover is manufactured in cast iron and is suitable for installations with high traffic. The come in four parts with a 140mm frame and lockable. Note that different installation instructions are suitable for D400 applications. With a D400-installation the three highest sections should be intact. Therefore the well should be at least 5 sections deep in such an installation.
  • Article number:
    0666349
  • Suppl. article no:
    0666349
  • Ean no:
    7332811326370
  • Material class
    QB2400
Technical data
  • Packagin Size: 1 ST/5 ST/5 ST
  • Interlockable: Yes
  • Width: 785 mm
  • Height: 190 mm
  • Material: Other
  • Clear opening: 610 mm
  • Length: 1485 mm
  • With grid: No
  • With cover: Yes
  • Material cover: Cast iron
  • Coated: No
  • Load class according to EN 1433: D-400
  • REACH Date: 2022-02-07
  • REACH Information obligation: No
