LED conversion kit for Indy44 T5
LED KIT 4000LM 3000K 1200MM
Article number: Suppl. article no:
8180060
7340194709949
to see price and stock

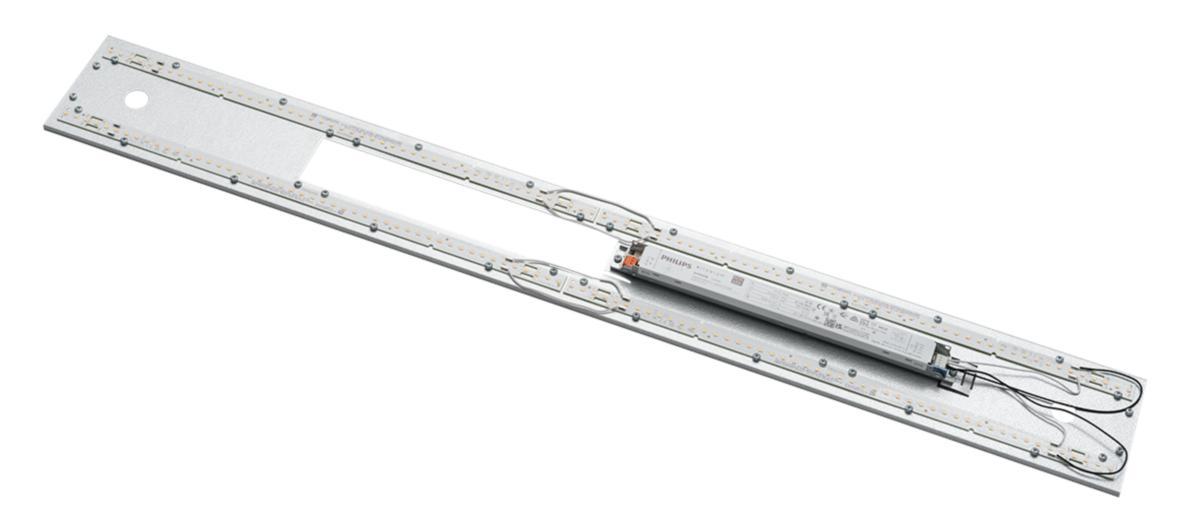

Mounting plate for LED conversion of older a-collecton fluorescent luminaires with T5 fluorescent tubes. Replaces HF device, fluorescent tube holder and terminal block. Any HF sensor can still be used. Please note that this conversion kit cannot be guaranteed to fit other fixture types.
- Article number: 8180060
- Suppl. article no: 7340194709949
- Ean no: 7340194709949
- Material class QT1600
Technical data
- Packagin Size: 1 PCS/68 PCS
- Max. system power: 34 W
- Rated luminous flux according to IEC 62722-2- 1: 4000 lm
- Colour temperature: 3000 K
- Dimmable: No
- Dimming DALI-2: No
- With light source: Yes
- Degree of protection (IP), front side: IP44
- Length: 1140 mm
- Width: 140 mm
- Height/depth: 35 mm
- Lamp holder: Other
- Lamp type: LED exchangeable
- Suitable for number of light sources: 1
- Protection class according to IEC 61140: I
- Colour rendering index CRI: 80-89
- Housing colour: Zinc
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Light outlet: Direct
- Nominal voltage: 220-240 V
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: > 80° - Extreme wide beam
- Operation by Bluetooth: No
- Number of poles: 5
- Dimming DMX: No
- Power factor: 0.97
- Colour consistency (McAdam ellipse): SDCM3
- Conductor cross section: 2.5 mm²
- Light distributor: None
- Surface protection housing: Galvanised
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 24
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Connection type: Push-in clamp
- REACH Date: 2024-11-07
- REACH Information obligation: No
