AhlsellProductsElectricLighting 70-8381 LED modules as well as conversion, replacement and rebuild kitsLED modules
Westal
Kit LED for kitchen hood
Kit LED for kitchen hood
Article number: Suppl. article no:
8100001
04-6-01
to see price and stock

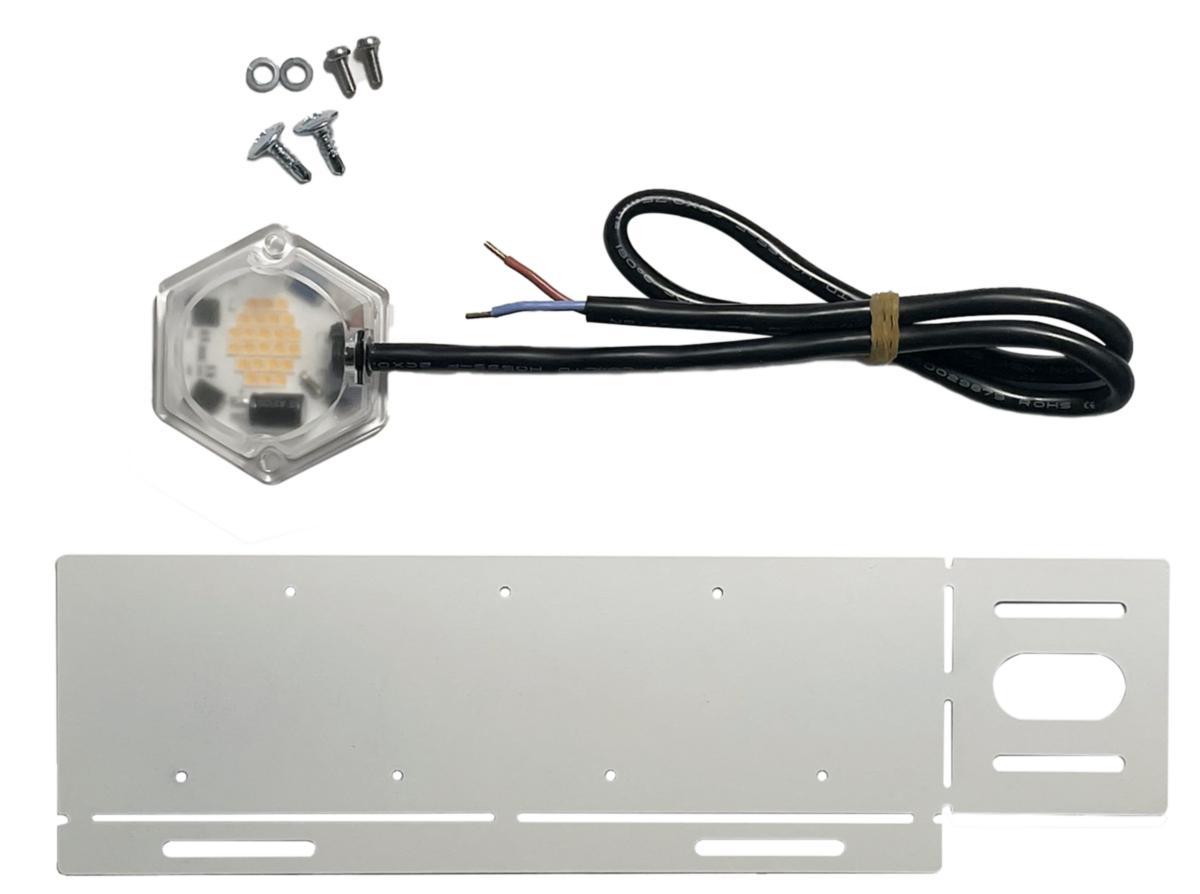

Replacement kit LED for kitchen fans. Simple to mount in existing fan covers that need to be updated in connection with the phasing out of fluorescent tubes. The kit is delivered with: Foldable plate with several mounting options, double-insulated driver-on-board LED module of 10W with 60cm 2-pole cable, screw for mounting the LED module and sheet metal screw for mounting the mounting plate in the kitchen hood.
- Article number: 8100001
- Suppl. article no: 04-6-01
- Ean no: 7393047046012
- Material class QT7000
Technical data
- Packagin Size: 1 PCS/10 PCS/10 PCS
- Max. system power: 10 W
- Rated luminous flux according to IEC 62722-2-1: 1100 lm
- Colour temperature: 3000 K
- Housing colour: White
- Degree of protection (IP): IP65
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Steel
- Nominal voltage: 220-240 V
- With control gear: Yes
- Rated lifetime L70/B50 at 25 °C: 70000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-85 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, transparent
- Built-in width: 72 mm
- Lamp type: LED exchangeable
- Suitable for built-in mounting: Yes
- Built-in length: 250 mm
- With light source: Yes
- Beam angle: Extreme wide beam >80°
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Voltage type: AC
- Light outlet: Direct
- Impact strength: IK08
- Power factor: 0.5
- Dimmable: Yes
- Colour of light: White
- Luminaire efficacy: 110 lm/W
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 70 %
- Flickering value Pst LM: 0.6
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 150
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 200
- Stroboscope effect value SVM: 0.5
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Built-in height/depth: 50 mm
- Connection type: Free conductor end
- REACH Date: 2024-01-02
- REACH Information obligation: No
