Hide-a-lite
Replacement kit ReLine
Fixture insert ReLine 600
Article number: Suppl. article no:
7218621
4559
to see price and stock

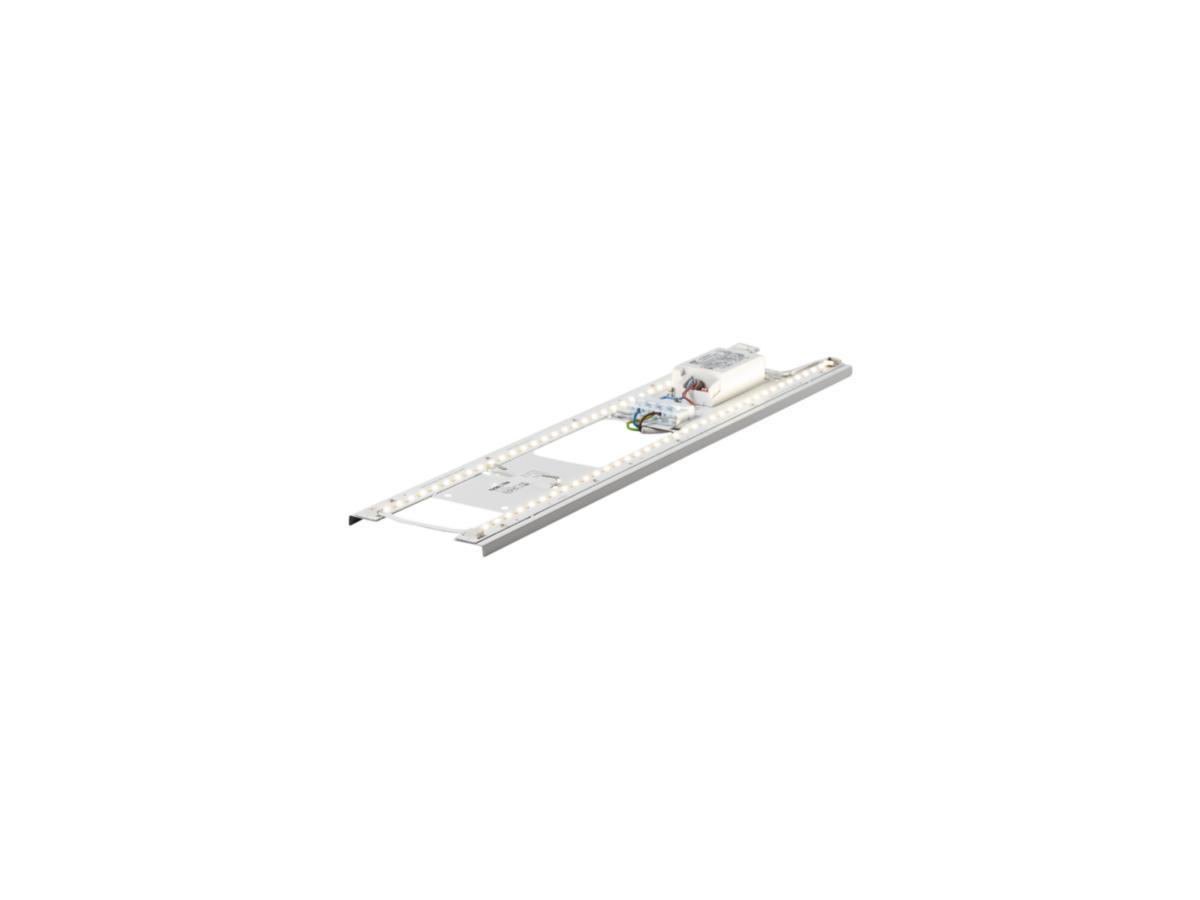

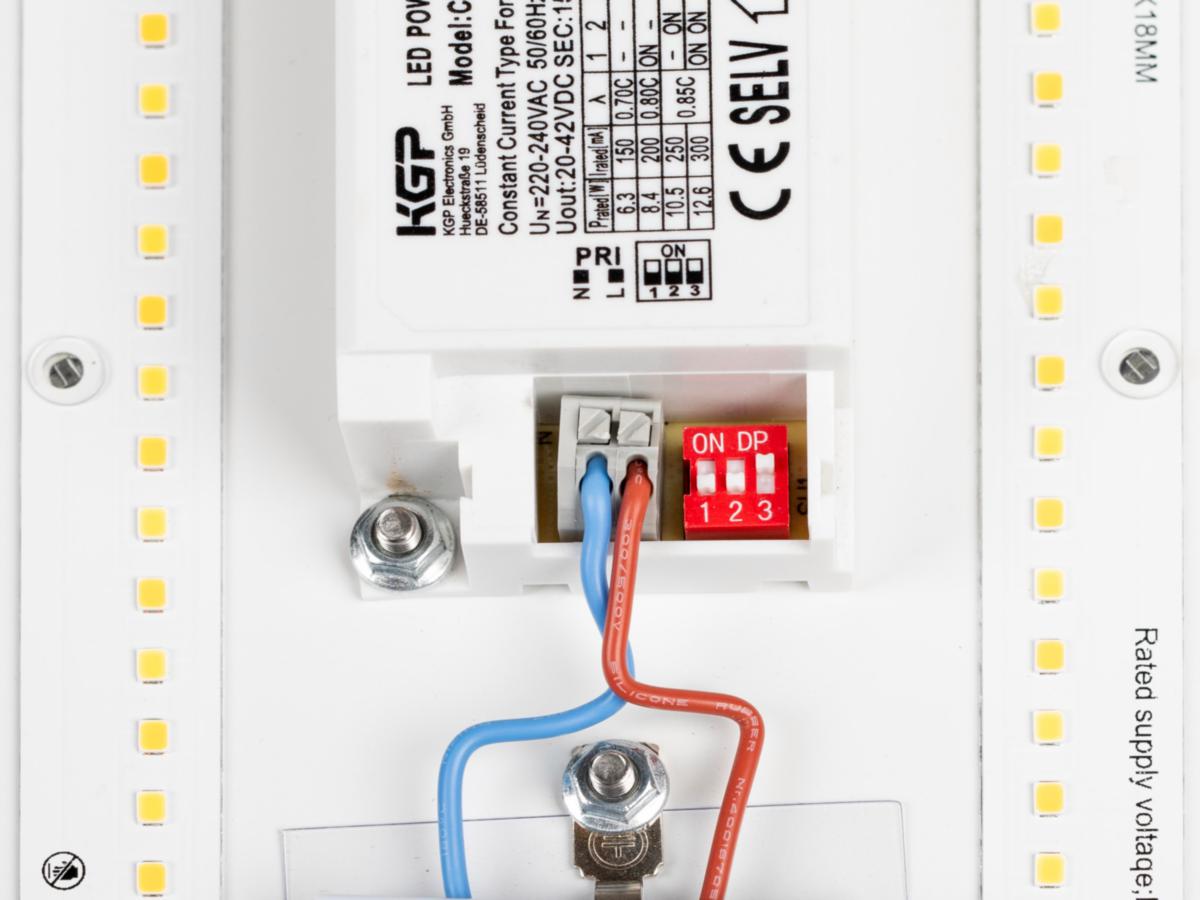

ReLine is an innovative replacement kit available in two different lengths, designed to easily upgrade your fluorescent fixtures - just open up the existing housing and replace your fluorescent tubes with ReLine. With the kit, you get replaceable LED and driver, as well as the option to select the color temperature via DIP switch Color Temp. For ReLine 1200, there is also the possibility to adjust the light flux with DIP switch Power. The kit is equipped with double-sided tape and is easily assembled with both screws and tape. Mark the luminaire with the supplied label after the replacement has been carried out.
- Article number: 7218621
- Suppl. article no: 4559
- Ean no: 7392971149400
- Material class QT0550
Technical data
- Packagin Size: 1 PCS/10 PCS
- Max. system power: 15 W
- Rated luminous flux according to IEC 62722-2- 1: 2000 lm
- Colour temperature: 3000-4000 K
- Length: 548 mm
- Width: 115 mm
- Height/depth: 35 mm
- Type of control gear: LED operating device current-controlled
- Colour of light: White
- Light distribution: Symmetric
- Degree of protection (IP): IP20
- Lamp type: LED exchangeable
- With light source: Yes
- With control gear: Yes
- Protection class according to IEC 61140: I
- Housing colour: White
- Number of poles: 5
- Power factor: 0.85
- Colour rendering index CRI: 80-89
- Dimmable: No
- Housing material: Steel
- Conductor cross section: 2.5 mm²
- Light distributor: None
- Suitable for emergency lighting: No
- With protective cover: No
- Mounting method: Other
- Nominal voltage: 220-240 V
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Beam angle: Extreme wide beam >80°
- Voltage type: AC
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 133 lm/W
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 84 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 91 %
- Total harmonic distortion: 20
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 64
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 100
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Nominal current: 300 mA
- Connection type: Push-in clamp
- Rated luminous flux according to IEC 62722-2-1: 2000 lm
- REACH Date: 2023-11-24
- REACH Information obligation: No
