Bellalite

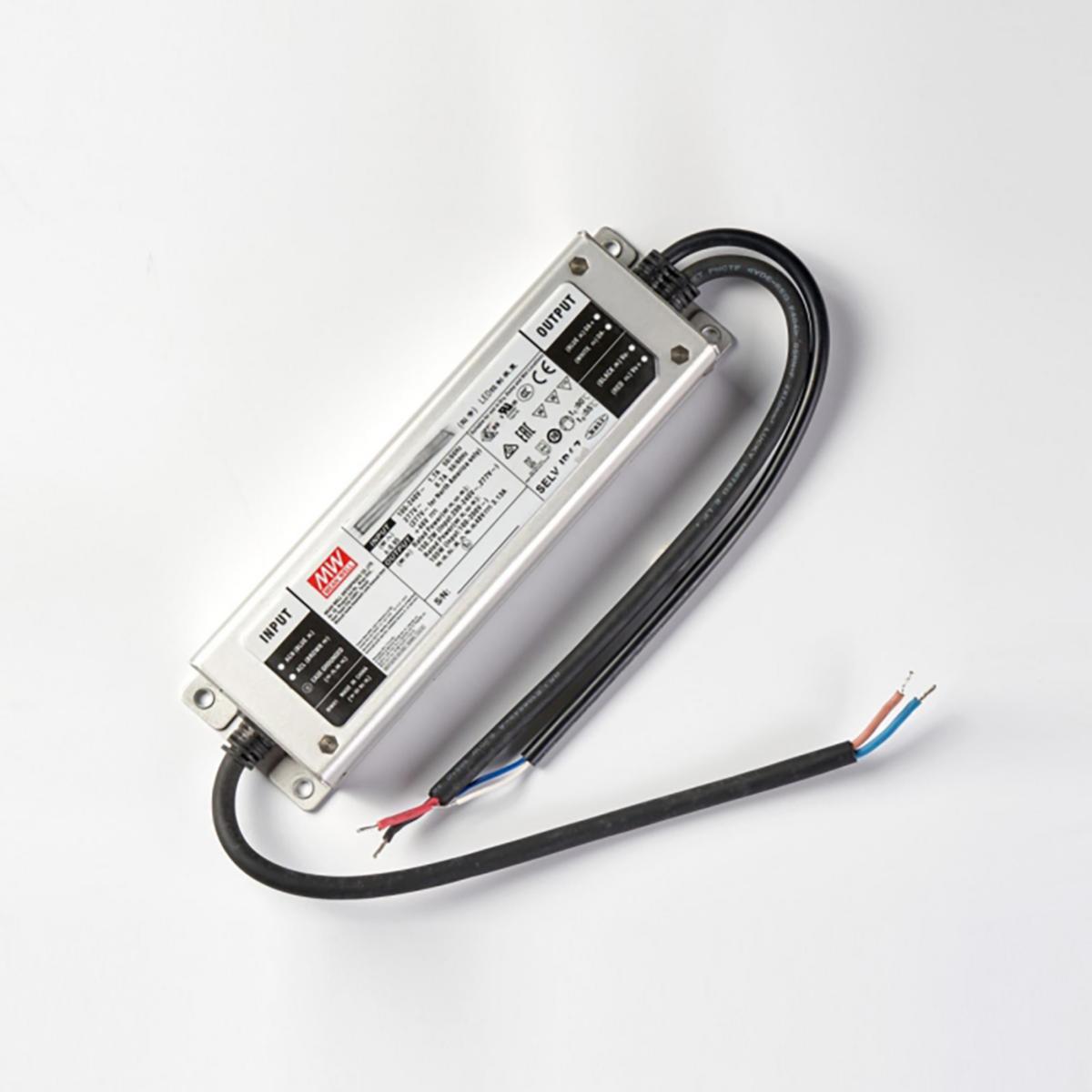

Driver 24VDC dimmable
Driver 24VDC 75W dim
Article number: Suppl. article no:
7982700
ELG-75-24B
to see price and stock
Power 24VDC dimmable 0-10VDC, PWM, IP67
- Article number: 7982700
- Suppl. article no: ELG-75-24B
- Material class QQ3890
Technical data
- Output power: 0-75 W
- Degree of protection (IP): IP67
- Suitable for constant voltage: Yes
- Suitable for constant current: No
- Suitable for DC-voltage (primary side): No
- Suitable for outdoor use: Yes
- Height: 35.5 mm
- Length: 180 mm
- Width: 63 mm
- Housing: Metal housing
- Dimmable: Yes
- Dimming DALI: No
- Dimming DALI-2: No
- Dimming 0-10 V: Yes
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Operation by Bluetooth: No
- Dimming D4i: No
- Frequency input voltage: 50-60 Hz
- Input voltage: 100-305 V
- PWM modulation: Yes
- REACH Date: 2023-08-23
- REACH Information obligation: No
