Hide-a-lite
Driver Fdim/Dali/Push 24V
Driver FDIM/DALI/PUSH 24V 75W
Article number: Suppl. article no:
7982339
7982339
to see price and stock

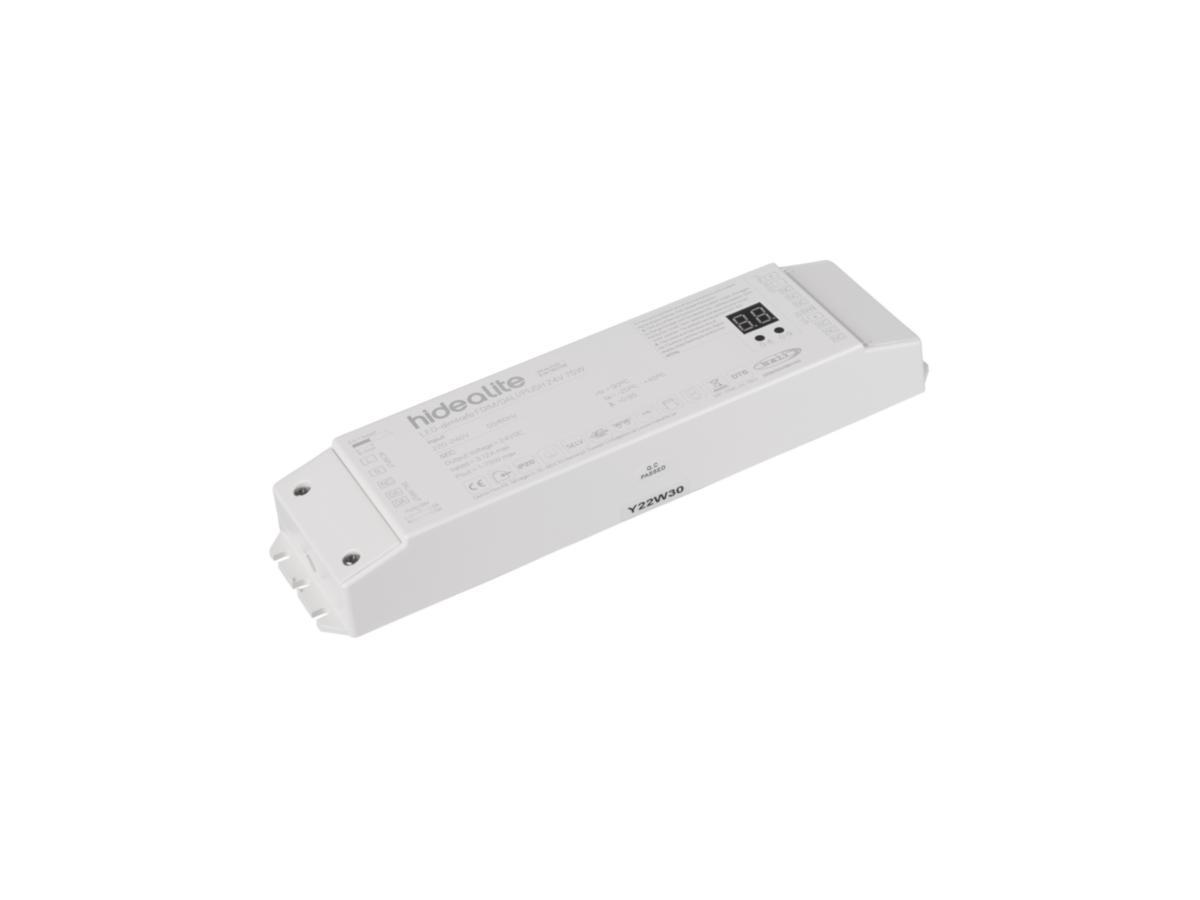

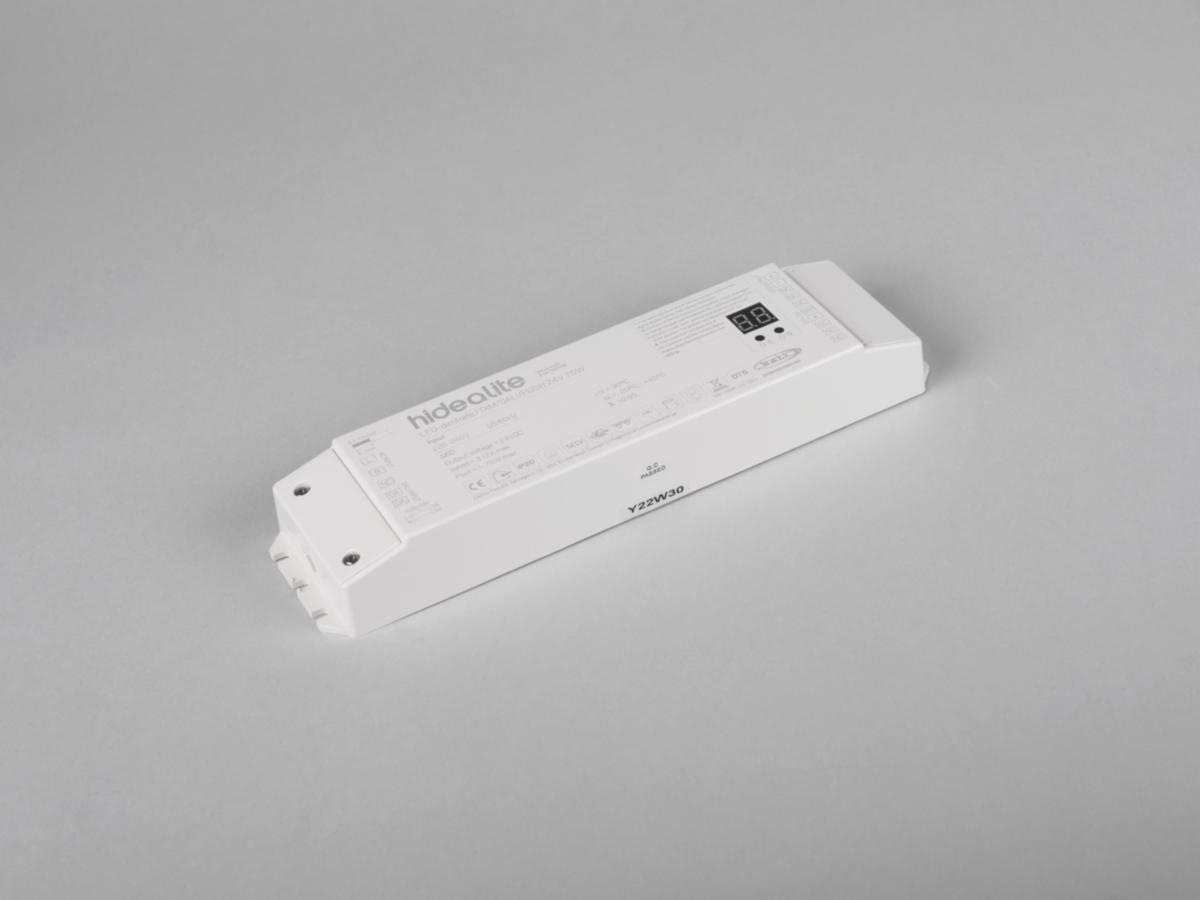

Powerful dimming transformer for 24V LED strips. Perfect for phase dimming of LED strip single color via rotary dimmer. Can also be dimmed via Push (230V), DALI or 0/1-10V. Memory function that lights up with the last set value after a power failure. The entire effect can be taken out via an output.
- Article number: 7982339
- Suppl. article no: 7982339
- Ean no: 7392971146324
- Material class QQ3820
Technical data
- Packagin Size: 1 PCS/30 PCS
- Output voltage: 24 V
- Output power: 5-75 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: Yes
- Suitable for constant current: No
- Suitable for outdoor use: No
- Height: 32 mm
- Length: 244 mm
- Width: 64 mm
- Housing: Plastic housing
- Model: Dynamic
- Protection class according to IEC 61140: II
- Dimmable: Yes
- Dimming DALI: Yes
- Dimming 0-10 V: Yes
- Dimming 1-10 V: Yes
- Dimming programmable: Yes
- Dimming with push-button: Yes
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- REACH Date: 2022-10-17
- REACH Information obligation: No
