a-collection

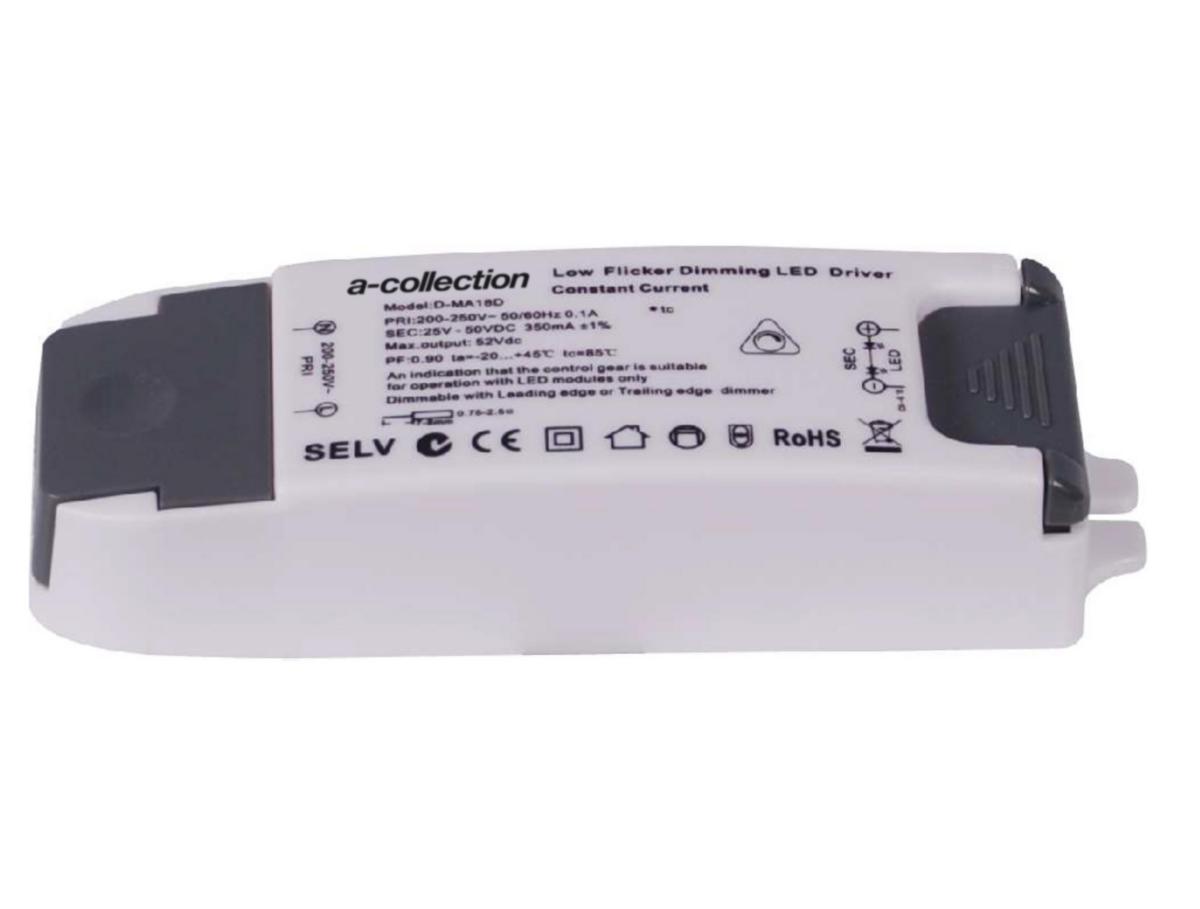

LED-Actuator aLED D9/D18, a-collection
DRIVER LED 9-18W 350MA ALED D18
Article number:
7981928
to see price and stock
Dimmable actuator for 350mA loads. The load is connected in series on the secondary side. Light control is done on the primary side.
- Article number: 7981928
- Ean no: 7333123115669
- Material class QQ3800
Technical data
- Packagin Size: 1 ST/100 ST
- Type: aLED D18
- Output current: 350 mA
- Output power: 9-18 W
- Degree of protection (IP): IP20
- Height: 28 mm
- Length: 134 mm
- Width: 44 mm
- Housing: Plastic housing
- Dimming Sine Wave Reduction: Yes
- Dimming mains voltage modulation: Yes
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
