a-collection
LED-Actuator aLED D9/D18, a-collection

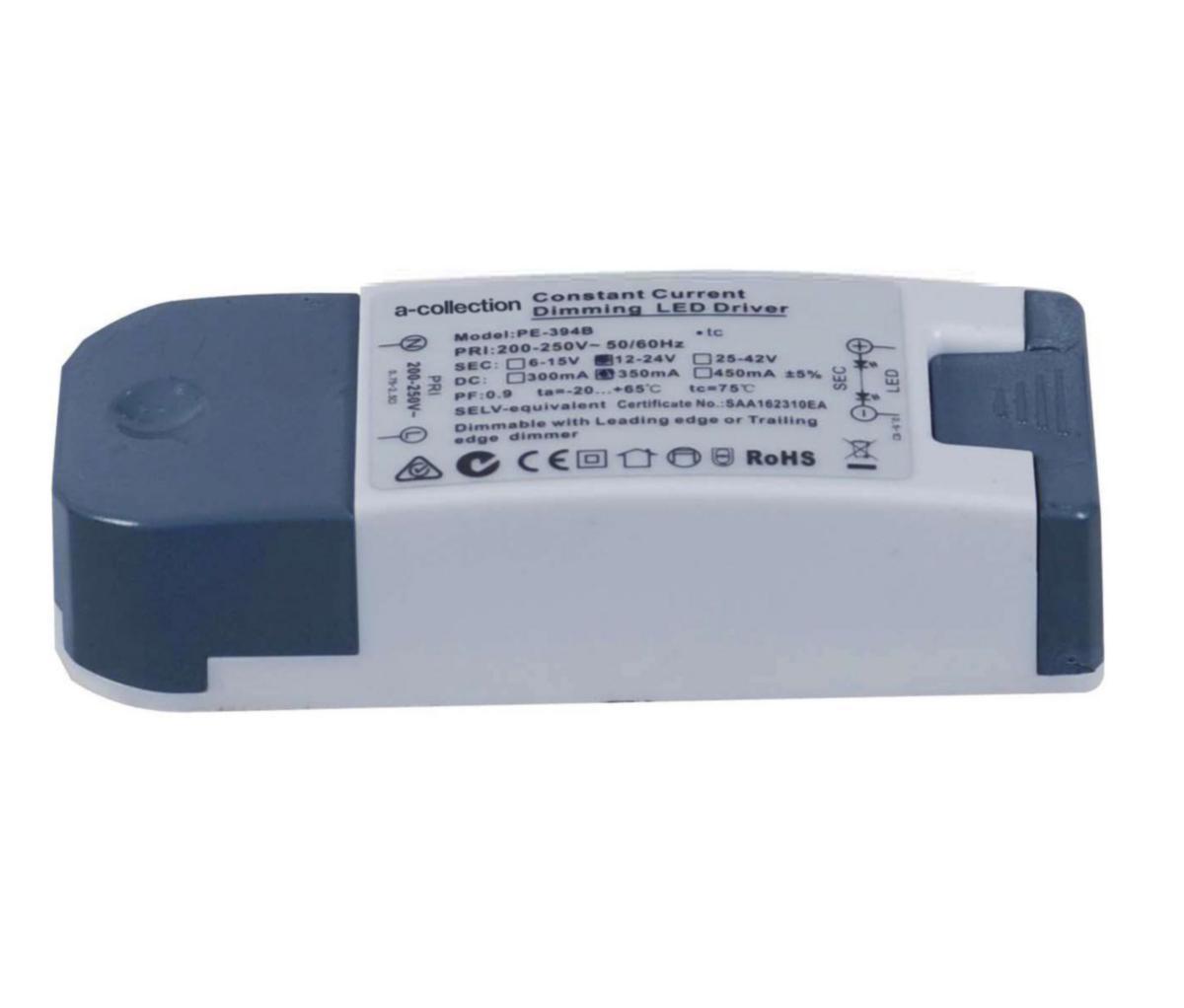

DRIVER LED 5-9W 350MA ALED D9
Article number:
7981927
to see price and stock
Dimmable actuator for 350mA loads. The load is connected in series on the secondary side. Light control is done on the primary side.
- Article number: 7981927
- Ean no: 7333123855428
- Material class QQ380B
Technical data
- Packagin Size: 1 ST/100 ST
- Type: aLED D9
- Output current: 350 mA
- Output power: 5-9 W
- Degree of protection (IP): IP20
- Height: 26 mm
- Length: 105 mm
- Width: 40 mm
- Housing: Plastic housing
- Dimming Sine Wave Reduction: Yes
- Dimming mains voltage modulation: Yes
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
