Designlight
LED Drivdon, Designlight

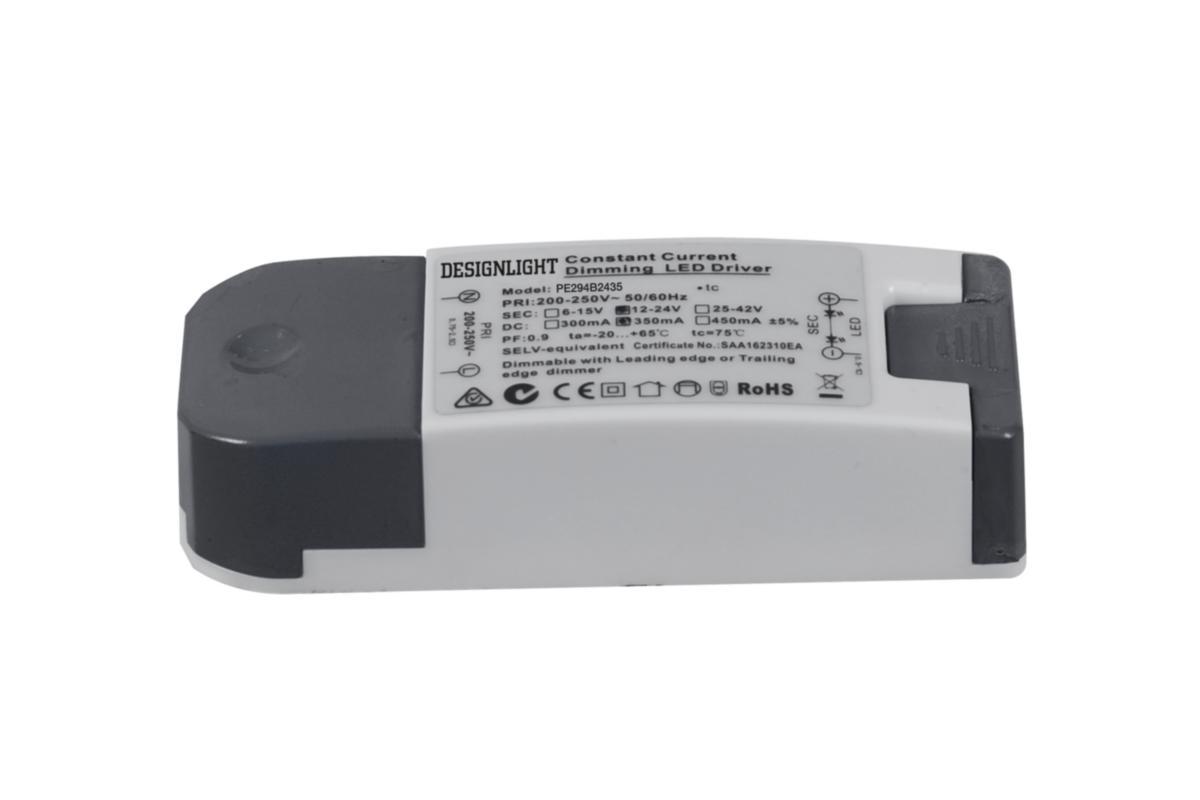

DRIVDON 5-9W DIM. IP20 D-MA9D
Article number: Suppl. article no:
7981794
D-MA9D
to see price and stock
Dimmable driver intended for 350mA LED luminaires. In systems where the majority of actuators are to be controlled via the same light control, these are easily connected in parallel on the primary side.
- Article number: 7981794
- Suppl. article no: D-MA9D
- Ean no: 7340132802190
- Material class QQ3840
Technical data
- Packagin Size: 1 ST/10 ST
- Type: D-MA9D
- Output current: 350 mA
- Output voltage: 12-24 V
- Output power: 5-9 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: No
- Suitable for constant current: Yes
- Suitable for DC-voltage (primary side): No
- Suitable for outdoor use: No
- Height: 26 mm
- Length: 105 mm
- Width: 40 mm
- Housing: Plastic housing
- Protection class according to IEC 61140: III
- Dimming DALI: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: Yes
- Dimming mains voltage modulation: Yes
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- REACH Date: 2021-08-16
- REACH Information obligation: No
- Dimming GPRS: No
