Hide-a-lite

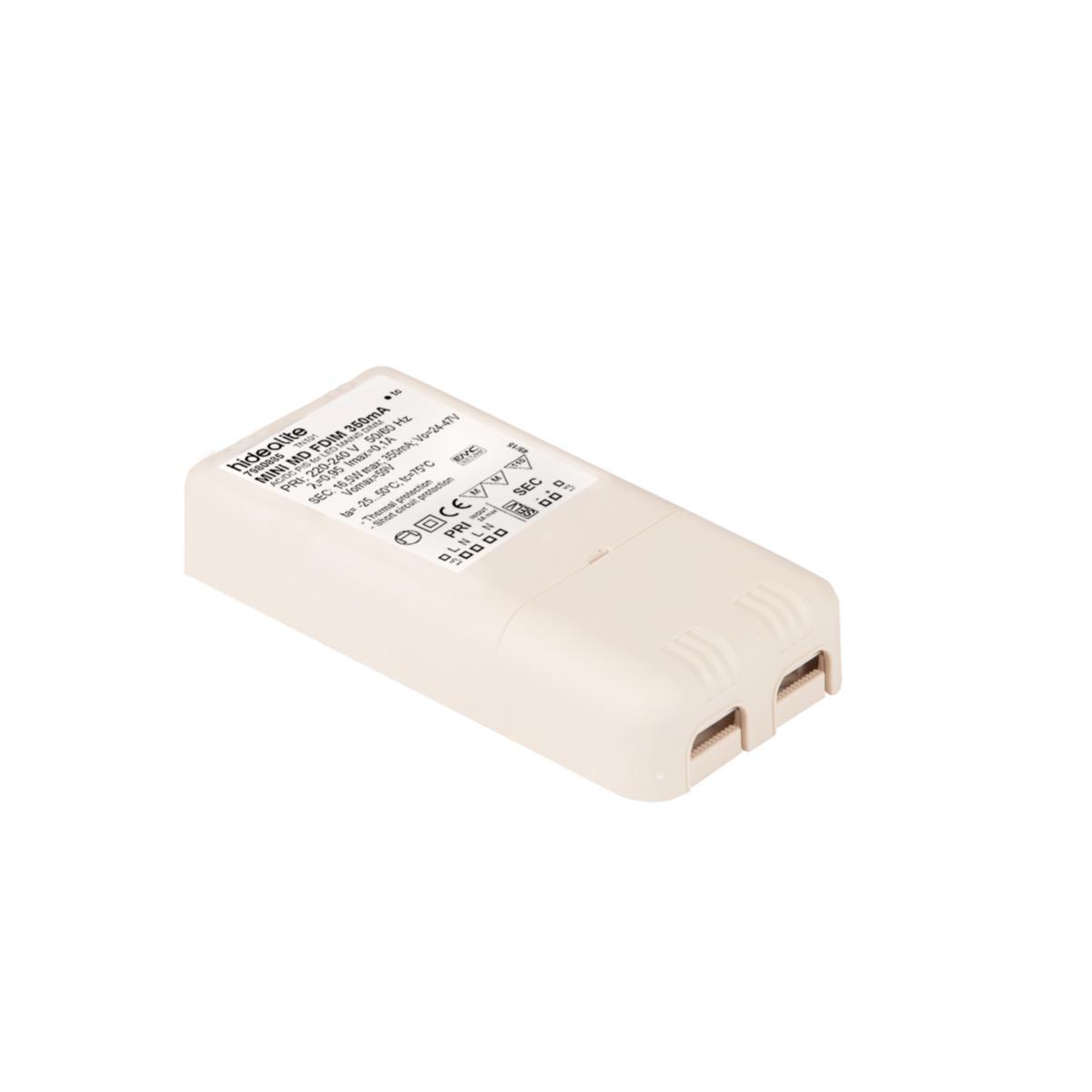

Converter Jolly Mini MD, Hide-a-lite
DRIVER MINI MD FDIM 350MA
Article number: Suppl. article no:
7980885
7980885
to see price and stock
Phase-dimmable converter for constant current 350mA and 700mA, light source can be controlled with standard rotary/push dimmers, for front and rear control. For a list of recommended dimmers, see: www.hidealite.se. Slim form for mounting in 1 1/2½ box or together with the fixture in Spot Guard Gles (74 667 02). Quick-connect terminals with space for further coupling, designed for easy installation.
- Article number: 7980885
- Suppl. article no: 7980885
- Ean no: 7392971126609
- Material class QQ382A
Technical data
- Packagin Size: 1 ST/20 ST
- Type: Jolly Mini MD
- Output current: 350 mA
- Output voltage: 24-47 V
- Output power: 8.4-16.5 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: No
- Suitable for constant current: Yes
- Suitable for DC-voltage (primary side): No
- Suitable for outdoor use: No
- Height: 22 mm
- Length: 111 mm
- Width: 52 mm
- Housing: Plastic housing
- Model: Dynamic
- Protection class according to IEC 61140: II
- Dimmable: Yes
- Dimming DALI: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- REACH Date: 2022-06-01
- REACH Information obligation: No
- Dimming GPRS: No
