Hide-a-lite

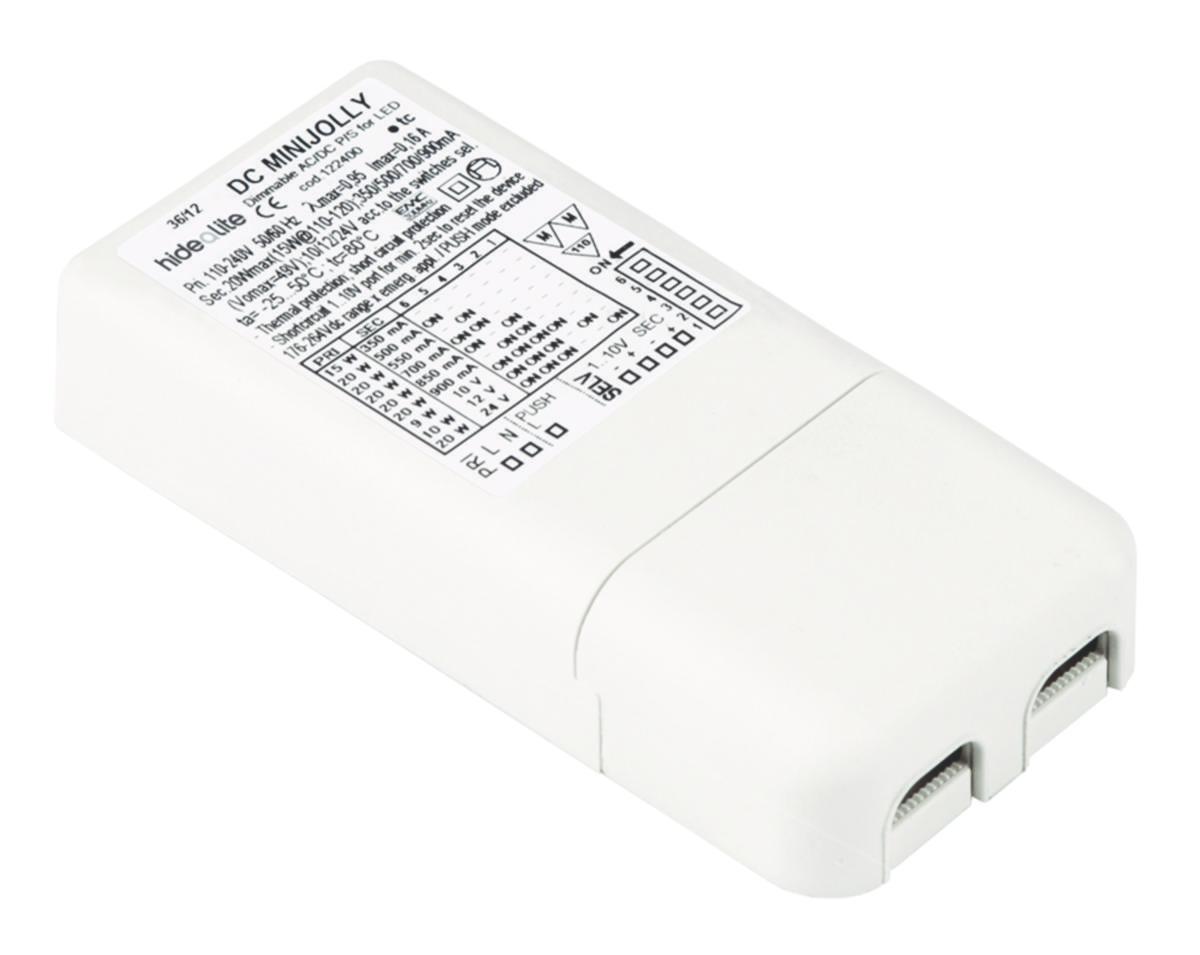

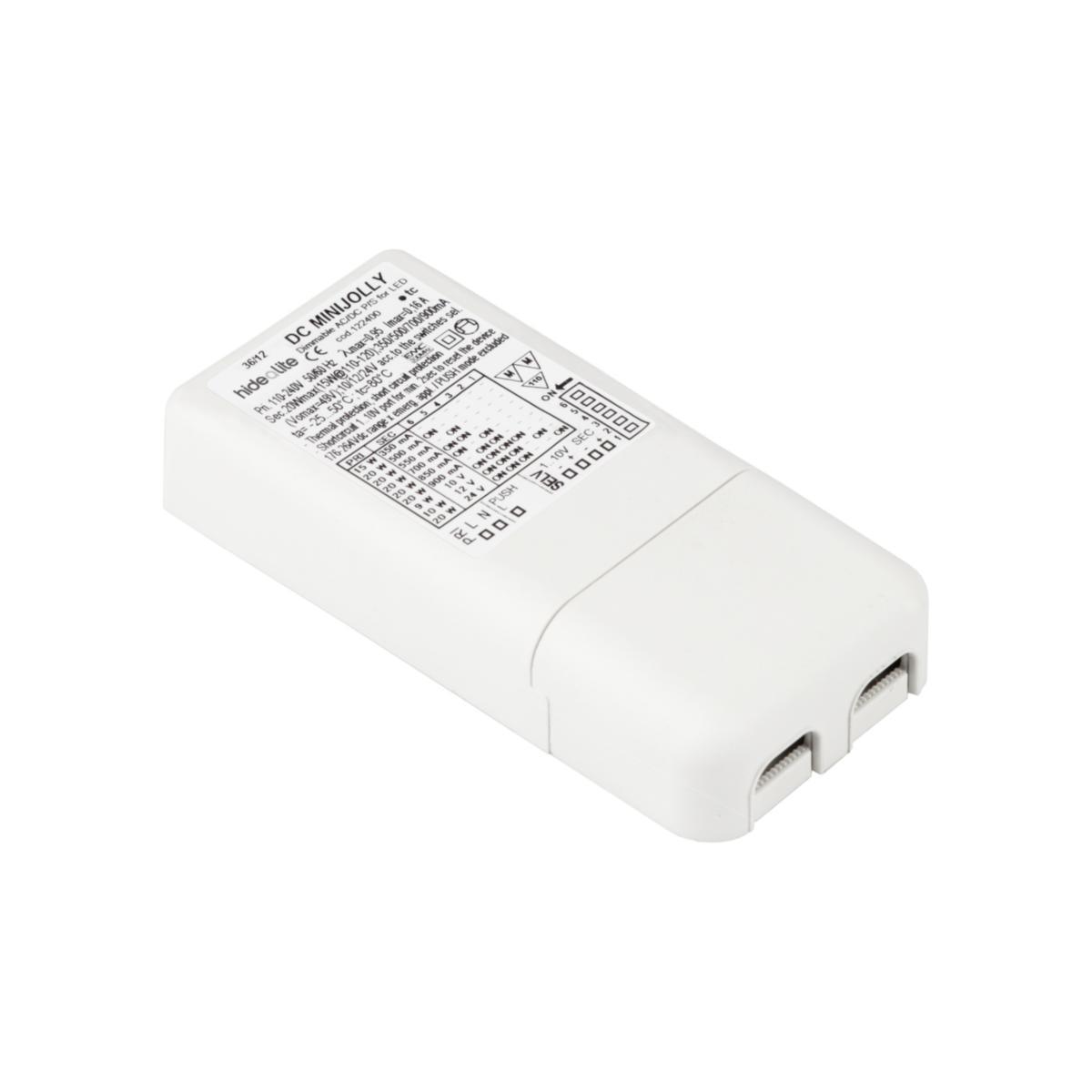

Converter LED Dim Jolly Mini, Hide-a-lite
LED DRIVER DIM JOLLY MINI UNI
Article number: Suppl. article no:
7980474
7980474
to see price and stock
All-in-one converter for LED with integrated PWM dimmer. With a simple setting, it copes with operating and adjusting up several types of LED light sources, both constant voltage DC (10,12 and 24V) constant current DC (350, 500, 550, 700, 850 and 900mA). Can be linked and controlled from one or more places via a spring-return push button, via a potentiometer, via 1-10V or a bus/KNX-system via actuator. Slim format for simple mounting in 1½ box or together with the fitting in Spot Guard Sparse (74 667 02).
- Article number: 7980474
- Suppl. article no: 7980474
- Ean no: 7392971122601
- Material class QQ3821
Technical data
- Packagin Size: 1 ST/20 ST
- Type: Jolly Mini
- Output current: 350-900 mA
- Output voltage: 2-43 V
- Output power: 0-20 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: Yes
- Suitable for constant current: Yes
- Suitable for DC-voltage (primary side): No
- Suitable for outdoor use: No
- Height: 22 mm
- Length: 111 mm
- Width: 52 mm
- Housing: Plastic housing
- Model: Dynamic
- Protection class according to IEC 61140: II
- Dimmable: Yes
- Dimming DALI: No
- Dimming 0-10 V: No
- Dimming 1-10 V: Yes
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: Yes
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming with push-button: Yes
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- REACH Date: 2022-06-01
- REACH Information obligation: No
- Dimming GPRS: No
