Philips
Malaga street light
BRP101 LED41/730 II DM
Artikelnummer: Lev. artikelnr:
7729285
910925869868
för att se saldo och pris

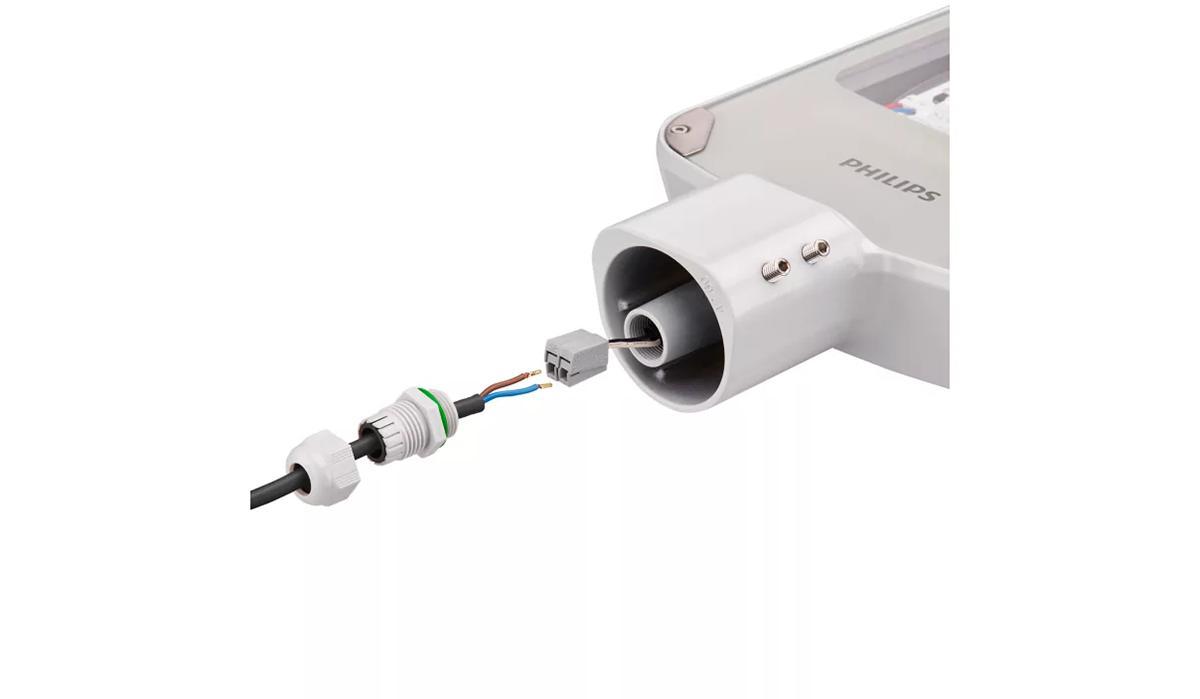

The CoreLine Malaga LED family is designed for road, street and residential applications and is available in two different sizes. The light source is a standard Philips LED motor with an associated standard Philips Xitanium outdoor ballast. Thanks to the sealing function, the installation is smooth; the luminaire does not need to be opened to connect to the mains cable. At the same time, the flat glass cover can be removed to connect to the actuator for maintenance if required
- Article number: 7729285
- Suppl. article no: 910925869868
- Ean no: 8720169471979
- Material class QU0720
Teknisk data
- Packagin Size: 1 PCS/192 PCS
- Max. system power: 28 W
- Rated luminous flux according to IEC 62722-2- 1: 4125 lm
- Colour temperature: 3000 K
- Colour rendering index CRI: 70-79
- Housing colour: Grey
- Lamp type: LED not exchangeable
- Degree of protection (IP): IP65
- Dimmable: No
- Dimming DALI: No
- Protection class according to IEC 61140: II
- Impact strength: IK08
- Housing material: Aluminium
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Adjustable optics: No
- Lamp holder: Other
- With light source: Yes
- Mounting method: Side entry
- Nominal voltage: 220-240 V
- Suitable for spigot size: 42-60 mm
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Material cover: Glass transparent
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 197 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.91
- Remote control: None
- Dimming phase cut-on (leading edge): No
- Height/depth: 78 mm
- Constant light output (CLO): No
- Conductor cross section: 0.75 mm²
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 166 lm/W
- Length: 333 mm
- With connection cable: No
- With light regulation program control: No
- With radio control: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM5
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 70 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 98 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 5 %
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 11
- With light sensor: No
- Nominal current: 700 mA
- Connection type: Other
- REACH Date: 2024-08-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
