Moramast
Post root-lacquered with single arm, Moramast

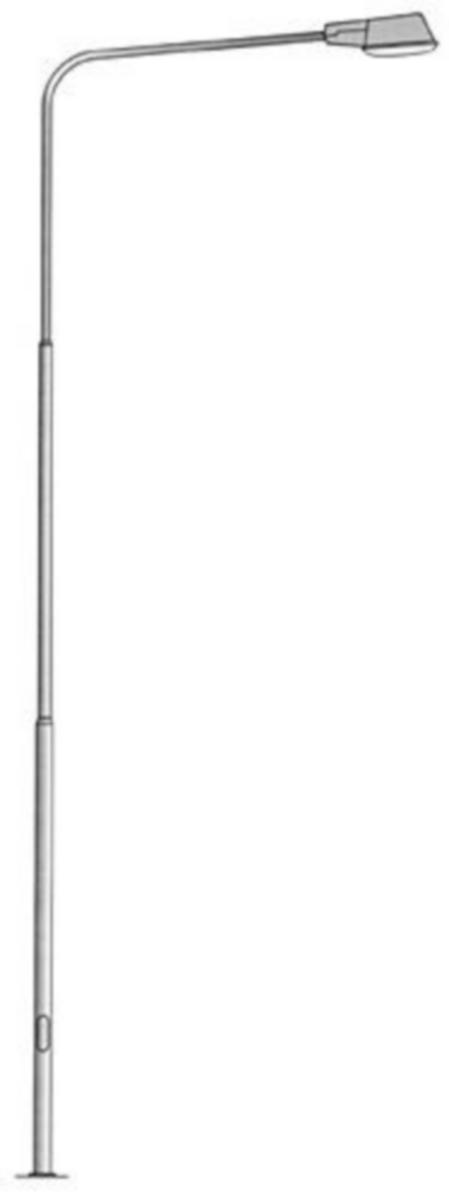

SINGLE ARM POLE MMSD80 E15 RL
Artikelnummer: Lev. artikelnr:
7780428
7780428
för att se saldo och pris
Material: Welded steel tubes in accordance with EN 10219-1 CFCHS.
Steel type: S235JRH and S355J2H.
Cover: Fittings in accordance with SS 2776 and SS 2777. The hatch is placed 1,200 mm above ground.
Hatch width: Bottom diameter: 108-140; 85 mm. Bottom diameter: 152-219; 100 mm.
Screws: 2 stainless A2 MCS M6x12 for post insertion and earthing screw; 2 stainless A2 K6S M6x16 for the hatch.
Surface treatment: Hot-dip galvanised in accordance with SS-EN ISO 1461 and lacquered with root protection in iron mica epoxy for one metre at the root.
Steel type: S235JRH and S355J2H.
Cover: Fittings in accordance with SS 2776 and SS 2777. The hatch is placed 1,200 mm above ground.
Hatch width: Bottom diameter: 108-140; 85 mm. Bottom diameter: 152-219; 100 mm.
Screws: 2 stainless A2 MCS M6x12 for post insertion and earthing screw; 2 stainless A2 K6S M6x16 for the hatch.
Surface treatment: Hot-dip galvanised in accordance with SS-EN ISO 1461 and lacquered with root protection in iron mica epoxy for one metre at the root.
- Article number: 7780428
- Suppl. article no: 7780428
- Material class QU6321
Teknisk data
- Packagin Size: 1 ST/15 ST
- Type: MMSD80 E15 RL
- Light centre height: 8 m
- Top end diameter: 48.3 mm
- Total length: 8.5 m
- Diameter at base: 108 mm
- Mounting arm length: 1500 mm
- Conical tapering: No
- With base plate: No
- Supporting bracket: Single
- Material: Steel
- Stepped shape: Yes
- Wall thickness: 5 mm
- Surface protection: Galvanised
- Protection of base part: Lacquered
- Model: Cylindrical
- Weight: 69 kg
- REACH Date: 2022-02-02
- LPH: 8
- REACH Information obligation: No
