Norlys

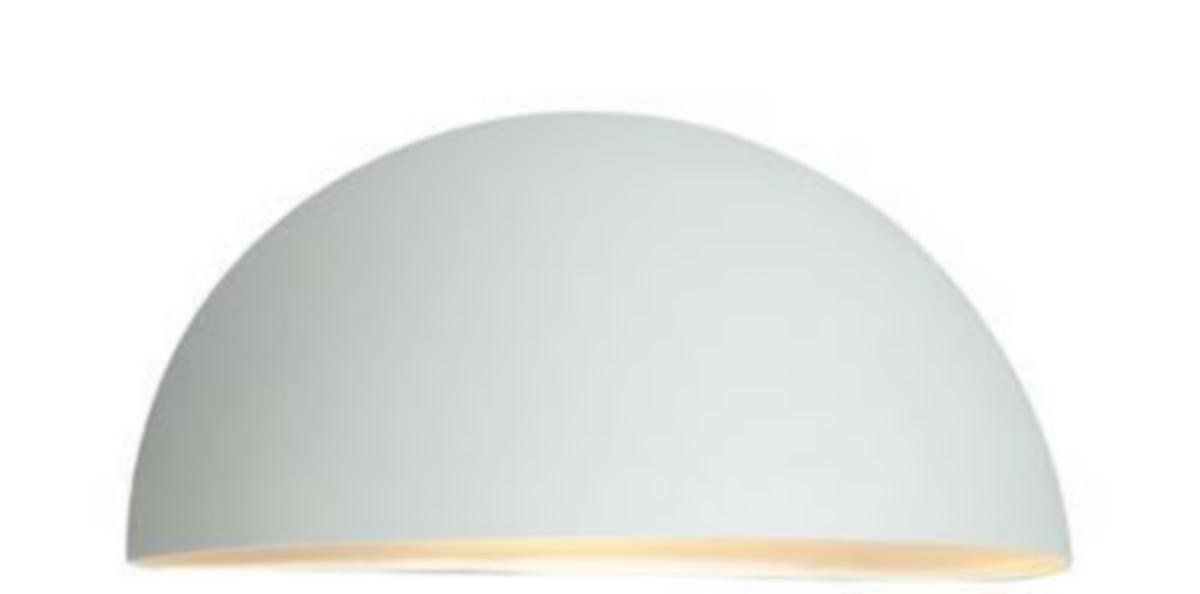

Wall fixture Paris 160, Norlys

WALLAMP PARIS 160W
Artikelnummer:
7722208
Lev. artikelnr:
160W
‌
‌
‌
‌
‌
 för att se saldo och pris
Fixture made of galvanised copper or lacquered steel. Glass made of frosted acrylic plastic. IP33, class 1.
Observe that the copper becomes oxidised after some time
  • Article number:
    7722208
  • Suppl. article no:
    160W
  • Ean no:
    7042891600016
  • Material class
    QU023A
Teknisk data
  • Packagin Size: 1 ST/6 ST/144 ST
  • Housing colour: White
  • Dimming DALI: No
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Housing material: Steel
  • Material cover: Plastic, opal
  • Lamp holder: E27
  • Lamp type: Incandescent lamp
  • With light source: No
  • Width: 230 mm
  • Height/depth: 140 mm
  • Length: 115 mm
  • Suitable for number of light sources: 1
  • Protection class according to IEC 61140: I
  • Degree of protection (IP): IP43
  • Type of control gear: Not required
  • With control gear: No
  • Colour of light: White
  • With movement sensor: No
  • With air slots: No
  • With light sensor: No
  • Suitable for surface mounting: Yes
  • Suitable for suspended mounting: No
  • Suitable for built-in mounting: No
  • Light distribution: Symmetric
  • Suitable for emergency lighting: No
  • Suitable for ceiling mounting: No
  • Type of grid: None
  • Covering of the luminaire with thermally insulating material possible: No
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming potentiometer (integrated): No
  • Dimming manufacturer's proprietary system: No
  • Filament test according to IEC 60695-2-11: None
  • Conductor cross section: 2.5 mm²
  • Suitable for light line configuration: No
  • Type of wiring: Suitable for loop-through wiring
  • Suitable for wall mounting: Yes
  • Connection type: Other
  • REACH Date: 2021-06-15
  • REACH Information obligation: No
  • Dimming GPRS: No
