Westal
Wall fixture Tratt, Westal
WALL LIGHT TRATT RAW CU E27 438-900
Artikelnummer: Lev. artikelnr:
7701856
438-900
för att se saldo och pris

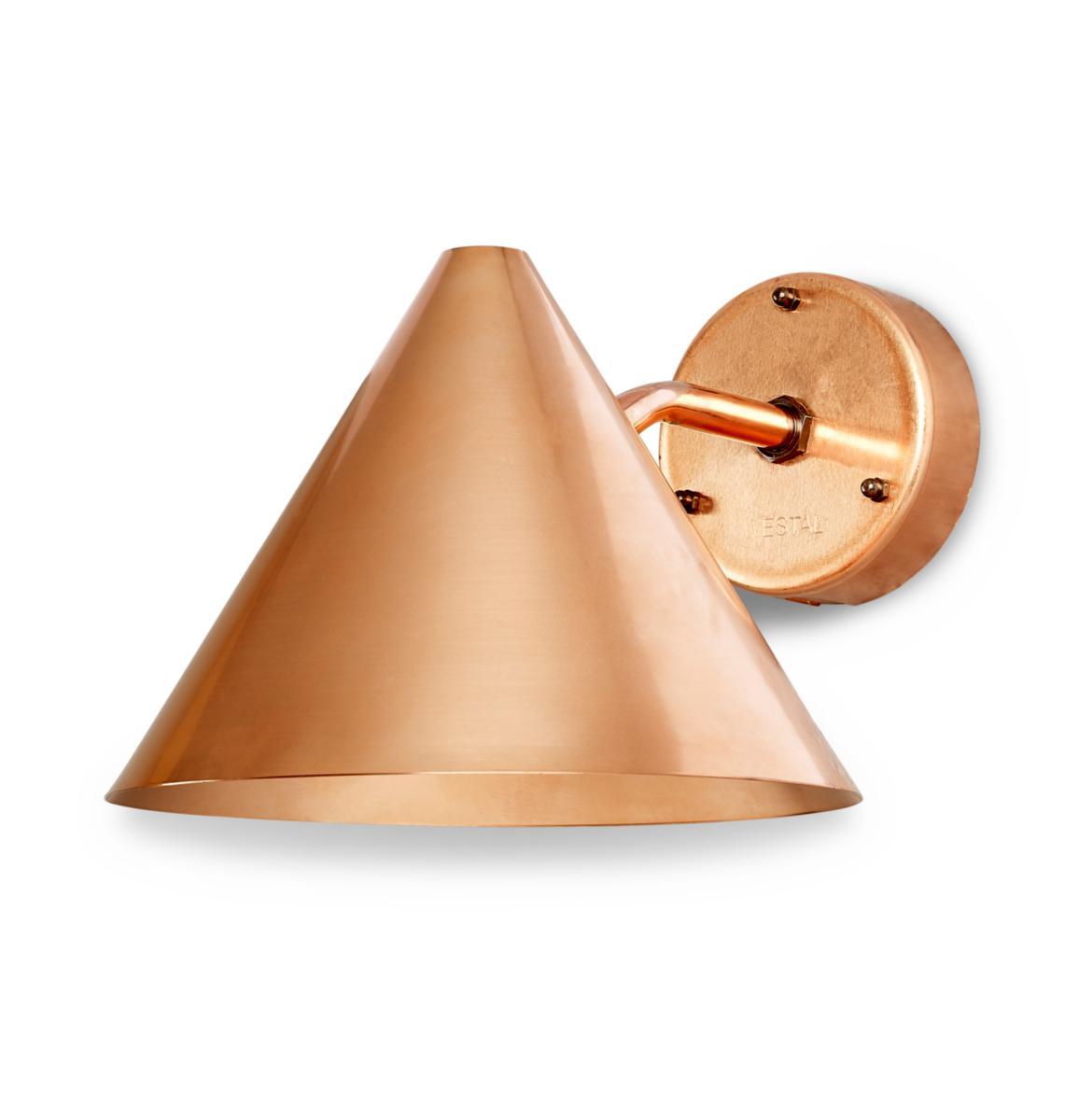

Wall luminaire facing downwards with a radiant light image. The luminaire has an E27 lamp holder for a maximum of 75W. The back piece has two inputs and outputs as well as a quick-connect terminal block. The luminaire is for outdoor use, IP23, suitable for use in both private and public environments.
- Article number: 7701856
- Suppl. article no: 438-900
- Material class QT9040
Teknisk data
- Design: Crude copper
- Housing colour: Copper
- Nominal voltage: 220-240 V
- Voltage type: AC
- Housing material: Other
- Material cover: Other
- Lamp holder: E27
- With light source: No
- Outer diameter: 250 mm
- Width: 250 mm
- Height/depth: 330 mm
- Length: 210 mm
- Suitable for number of light sources: 1
- Protection class according to IEC 61140: I
- Degree of protection (IP): IP23
- Type of control gear: Not required
- With movement sensor: No
- With air slots: No
- With light sensor: No
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: No
- Type of grid: None
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Conductor cross section: 2.5 mm²
- Light distributor: Reflector
- Suitable for lamp power: 1-75 W
- Suitable for light line configuration: No
- Type of wiring: Suitable for loop-through wiring
- Suitable for wall mounting: Yes
- Suitable for wall mounting: Yes
- REACH Date: 2023-06-08
- REACH Information obligation: No
