Hide-a-lite
Ground spotlight Spot It
Spot It L Black 38° 830/840
Artikelnummer: Lev. artikelnr:
7766982
7766982
för att se saldo och pris

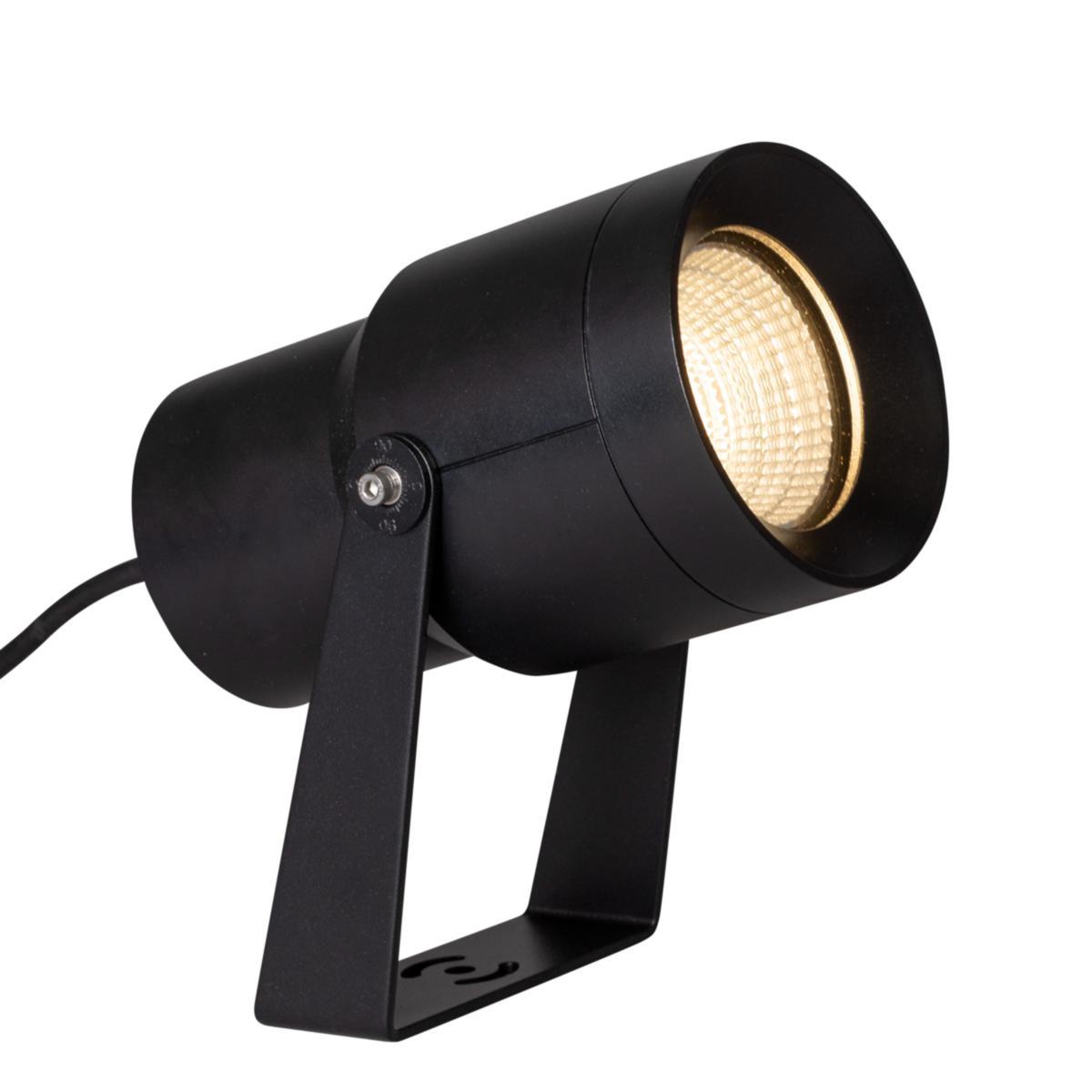

Compact phase dimmable spotlight in modern LED technology with a stylish design. Adjust the amount of light as needed and easily let the amount of light grow in step with your garden. Illuminate trees, bushes, patios and facades and create pleasant effects. In black, which gives a modern impression. IP67 design with luminaire housing made of corrosion-treated cast aluminum with durable powder coating to cope with our Nordic climate. Selectable color temperature via DIP switch ColourTemp. Mounted with jumper or supplied ground spike. Supplied complete with built-in dimmable driver and 2m rubber cable. Dimmable with the most common dimmers on the market.
- Article number: 7766982
- Suppl. article no: 7766982
- Ean no: 7392971143484
- Material class QU0260
Teknisk data
- Packagin Size: 1 PCS/6 PCS
- Design: 38°
- Max. system power: 25 W
- Rated luminous flux according to IEC 62722-2-1: 2100 lm
- Colour temperature: 3000-4000 K
- Housing colour: Black
- Housing material: Aluminium
- Degree of protection (IP): IP67
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Outer diameter: 115 mm
- Length: 195 mm
- Beam angle: Medium beam 21-40°
- Protection class according to IEC 61140: I
- Reflector: High-gloss
- Colour rendering index CRI: 80-89
- Adjustability: Rotating and swivelling
- Luminous flux: 2100-2300 lm
- Colour of light: White
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Number of poles: 3
- Material cover: Glass transparent
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for light-track mounting: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for traverse mounting: No
- Suitable for low voltage cable system: No
- Colour consistency (McAdam ellipse): SDCM3
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Height/depth: 145 mm
- Covering of the luminaire with thermally insulating material possible: No
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distributor: Reflector
- Light outlet: Direct
- Luminous intensity: 4050 cd
- Luminaire efficacy: 84 lm/W
- With movement sensor: No
- With light source: Yes
- With light sensor: No
- Nominal voltage: 220-240 V
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Surface protection: Lacquered
- Impact strength: IK10
- Voltage type: AC
- Connectable conductor cross section: 1 mm²
- Type of wiring: Ending
- Dimmable: Yes
- Power factor: 0.9
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 78 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 89 %
- Flickering value Pst LM: 0.024
- Colour of light adjustable: Positions
- Beam angle adjustable: No
- Luminous flux adjustable: Continuously variable
- Constant light output (CLO): No
- Suitable for wall mounting: Yes
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 70
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 70
- Connection type: Push-in clamp
- Exchangeable control gear: No
- REACH Date: 2022-05-24
- REACH Information obligation: No
