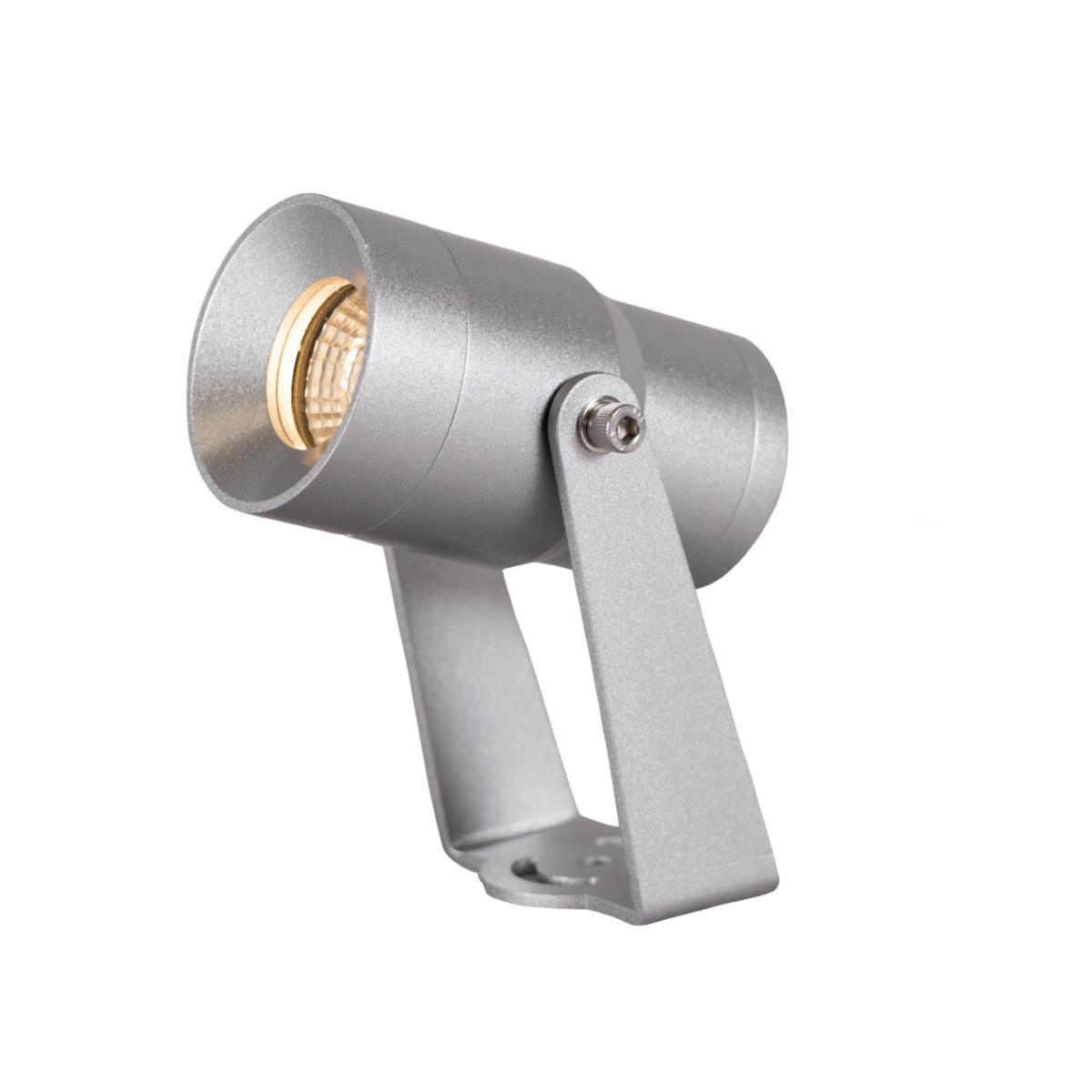

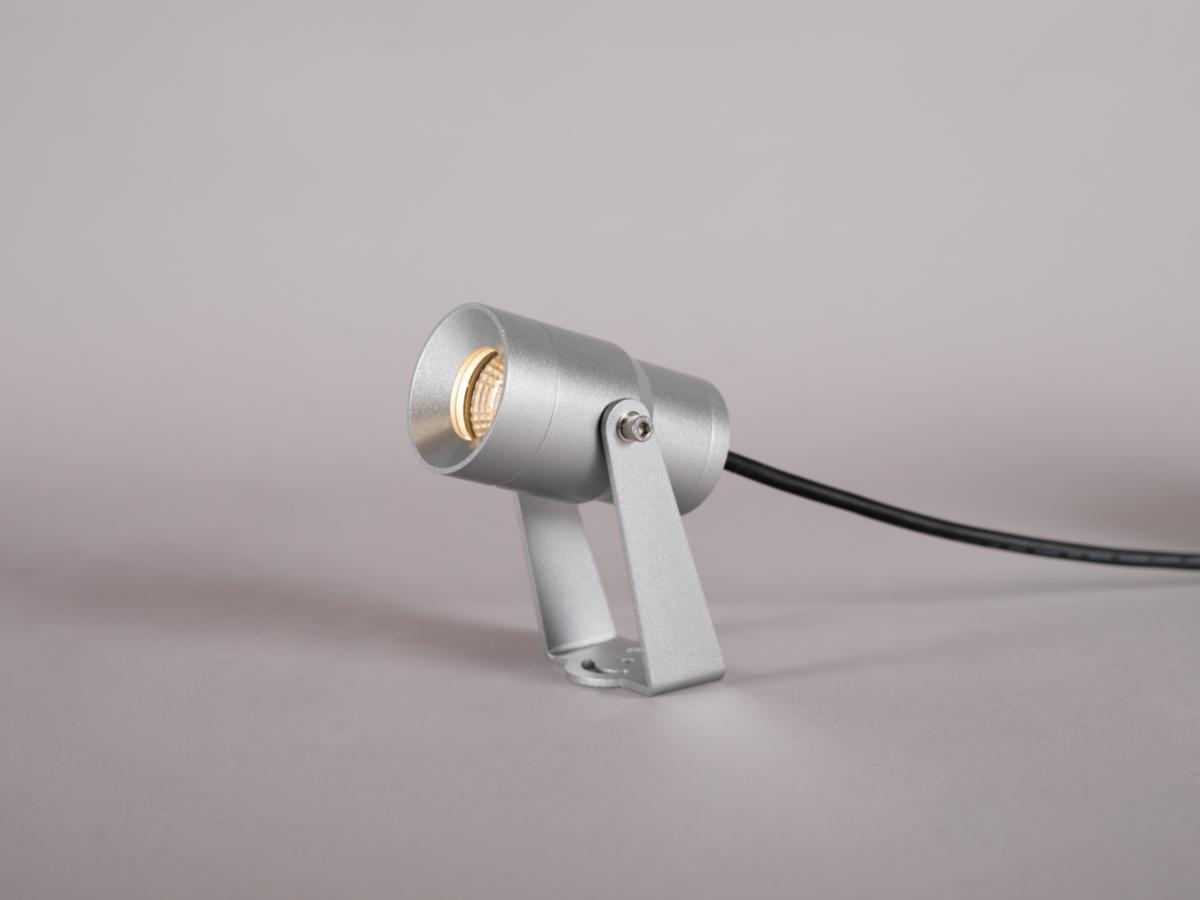

Ground spotlight Spot It, Hide-a-Lite
SPOT IT S ALU 3000K SPOT IT INKL 2M GUMMIKABEL
Artikelnummer: Lev. artikelnr:
7766694
7766694
för att se saldo och pris
Compact phase-dimmable spotlight in modern LED technology with a stylish design. Adjust the amount of light as needed and easily let the amount of light grow in step with your garden. Illuminate trees, shrubs, patios and facades and create pleasant effects. IP65 design and luminaire housing of cast aluminum, corrosion-treated and powder-coated. Mounted with stirrup or included ground skewer. Comes complete with built-in phase dimmable drive and 2m rubber cable. Dimmable with the most common dimmers on the market.
- Article number: 7766694
- Suppl. article no: 7766694
- Ean no: 7392971141589
- Material class QU0260
Teknisk data
- Packagin Size: 1 ST/12 ST
- Max. system power: 5.5 W
- Rated luminous flux according to IEC 62722-2-1: 400 lm
- Colour temperature: 3000 K
- Housing colour: Silver
- Housing material: Aluminium
- Degree of protection (IP): IP67
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Outer diameter: 55 mm
- Length: 95 mm
- Beam angle: 21-40° - Medium beam
- Protection class according to IEC 61140: I
- Reflector: High-gloss
- Colour rendering index CRI: 80-89
- Adjustability: Rotating and swivelling
- Luminous flux: 400 lm
- Colour of light: White
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Number of poles: 3
- Material cover: Glass transparent
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Surface brushed: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DALI: No
- Dimming DALI-2: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Touch and Dim: No
- Dimming Zigbee: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming potentiometer (integrated): No
- Dimming mains voltage modulation: No
- Dimming programmable: No
- Dimming Sine Wave Reduction: No
- Dimming with push-button: No
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for light-track mounting: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for traverse mounting: No
- Suitable for low voltage cable system: No
- Colour consistency (McAdam ellipse): SDCM3
- Suitable for workplace according to EN 12464-1: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Height/depth: 90 mm
- Covering of the luminaire with thermally insulating material possible: No
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distributor: Reflector
- Light outlet: Direct
- Luminous intensity: 800 cd
- Luminaire efficacy: 73 lm/W
- With movement sensor: No
- With light source: Yes
- With light sensor: No
- Nominal voltage: 220-240 V
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Surface protection: Lacquered
- Impact strength: IK08
- Voltage type: AC
- Connectable conductor cross section: 0.75 mm²
- Type of wiring: Ending
- Dimmable: Yes
- Power factor: 0.9
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 83 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 91 %
- Energy efficiency class: A+
- Colour of light adjustable: No
- Emergency power supply integrated: No
- Beam angle adjustable: No
- Luminous flux adjustable: Continuously variable
- Constant light output (CLO): No
- Suitable for wall mounting: Yes
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 100
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 100
- Connection type: Push-in clamp
- Exchangeable control gear: No
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
