Hide-a-lite

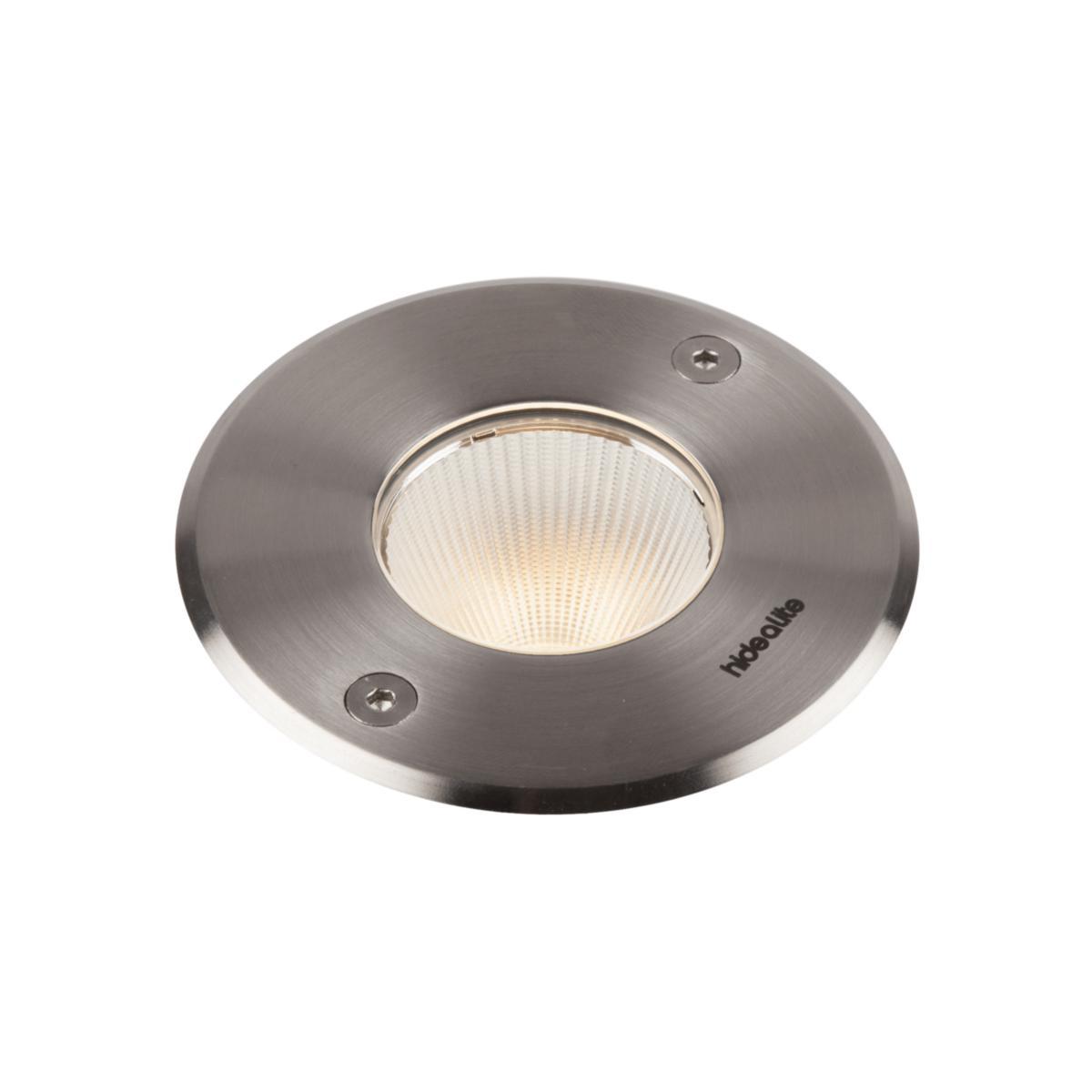

In-ground light fittings Spot Up Multi, Hide-a-lite

GROUND FL LIGHT 7W 3000K IP67 SPOT UP MULTI 7
Artikelnummer:
7761308
Lev. artikelnr:
7761308
‌
‌
‌
‌
‌
 för att se saldo och pris
Produkten är miljöbedömd av SundaHus

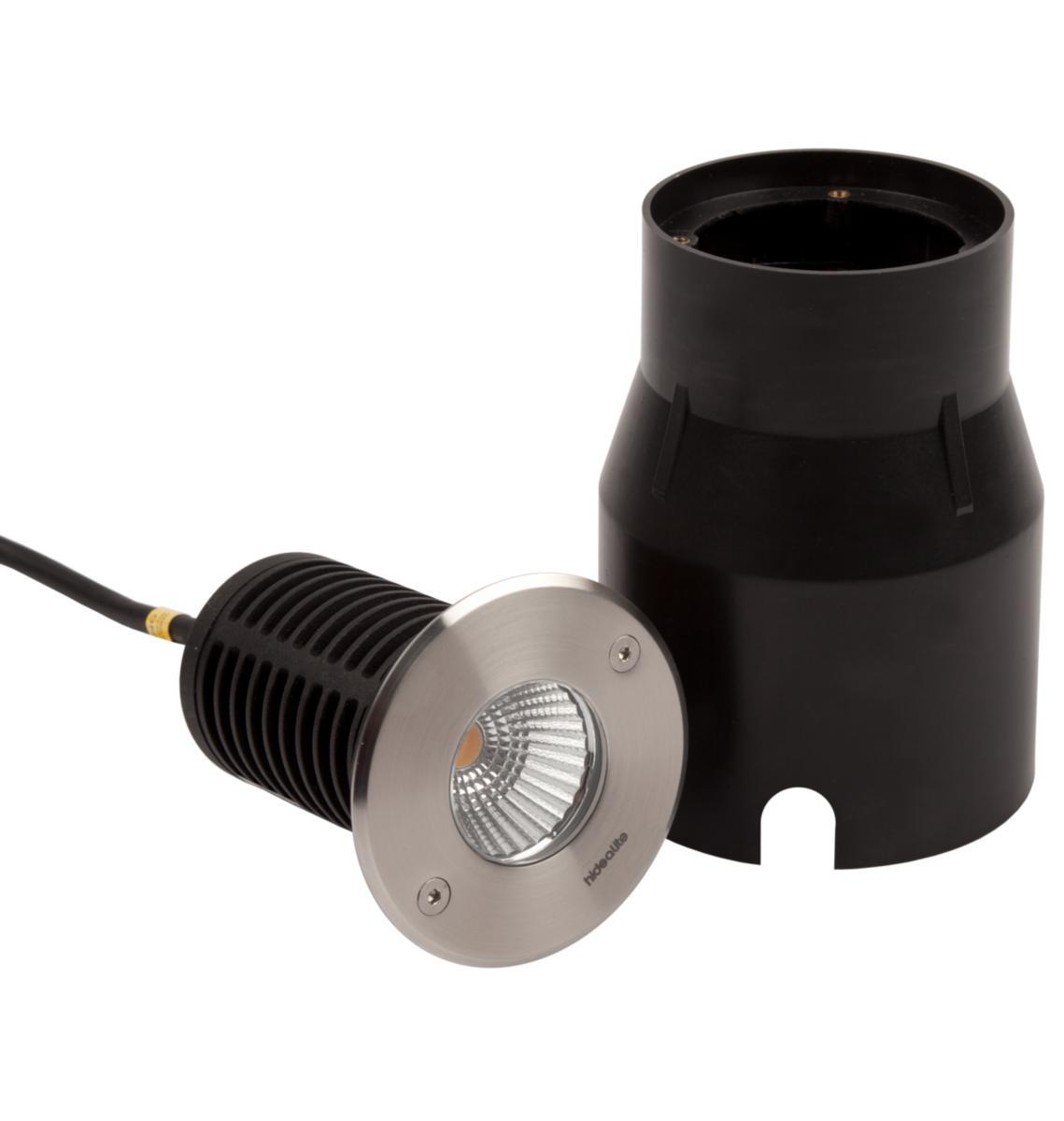

A stylish, energy efficient ground searchlight for gardens or buildings. Multi-chip and reflector optics give excellent light with a halogen character. The fitting housing is made of cast aluminium the outer ring is made of stainless steel (316) and hardened protective glass. Can be mounted on wooden decks or in the ground together with a mounting box. Delivered with a integrated actuator, 2m rubber cable and a mounting box.
  • Article number:
    7761308
  • Suppl. article no:
    7761308
  • Ean no:
    7392971123318
  • Material class
    QU3740
Teknisk data
  • Packagin Size: 1 ST/10 ST/10 ST
  • Type: Spot Up Multi 7
  • Max. system power: 8.3 W
  • Rated luminous flux according to IEC 62722-2-1: 370 lm
  • Colour temperature: 3000 K
  • Beam angle: Medium beam 21-40°
  • Height/depth: 118 mm
  • Outer diameter: 85 mm
  • Degree of protection (IP): IP67
  • Housing colour: Stainless steel
  • Lamp type: LED not exchangeable
  • Suitable for number of light sources: 1
  • Colour rendering index CRI: 80-89
  • Lamp holder: Other
  • With light source: Yes
  • With control gear: Yes
  • Electrical connection with connector system: No
  • Material cover: Glass transparent
  • Adjustable: No
  • Light distribution: Symmetric
  • Nominal voltage: 230 V
  • Voltage type: AC
  • Protection class according to IEC 61140: I
  • Type of control gear: LED operating device current-controlled
  • Over rollable: Yes
  • Number of poles: 3
  • Dimmable: No
  • Dimming phase cut-off (trailing edge): No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DALI: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming phase cut-on (leading edge): No
  • Conductor cross section: 1.5 mm²
  • Colour of light: White
  • Light distributor: Reflector
  • Max. load: 1220 kg
  • Dimming Touch and Dim: No
  • Type of wiring: Ending
  • Built-in diameter: 80 mm
  • Built-in height/depth: 115 mm
  • Connection type: Other
  • REACH Date: 2022-06-01
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: No
  • Dimming GPRS: No
