Ledvance
Floodlight 10

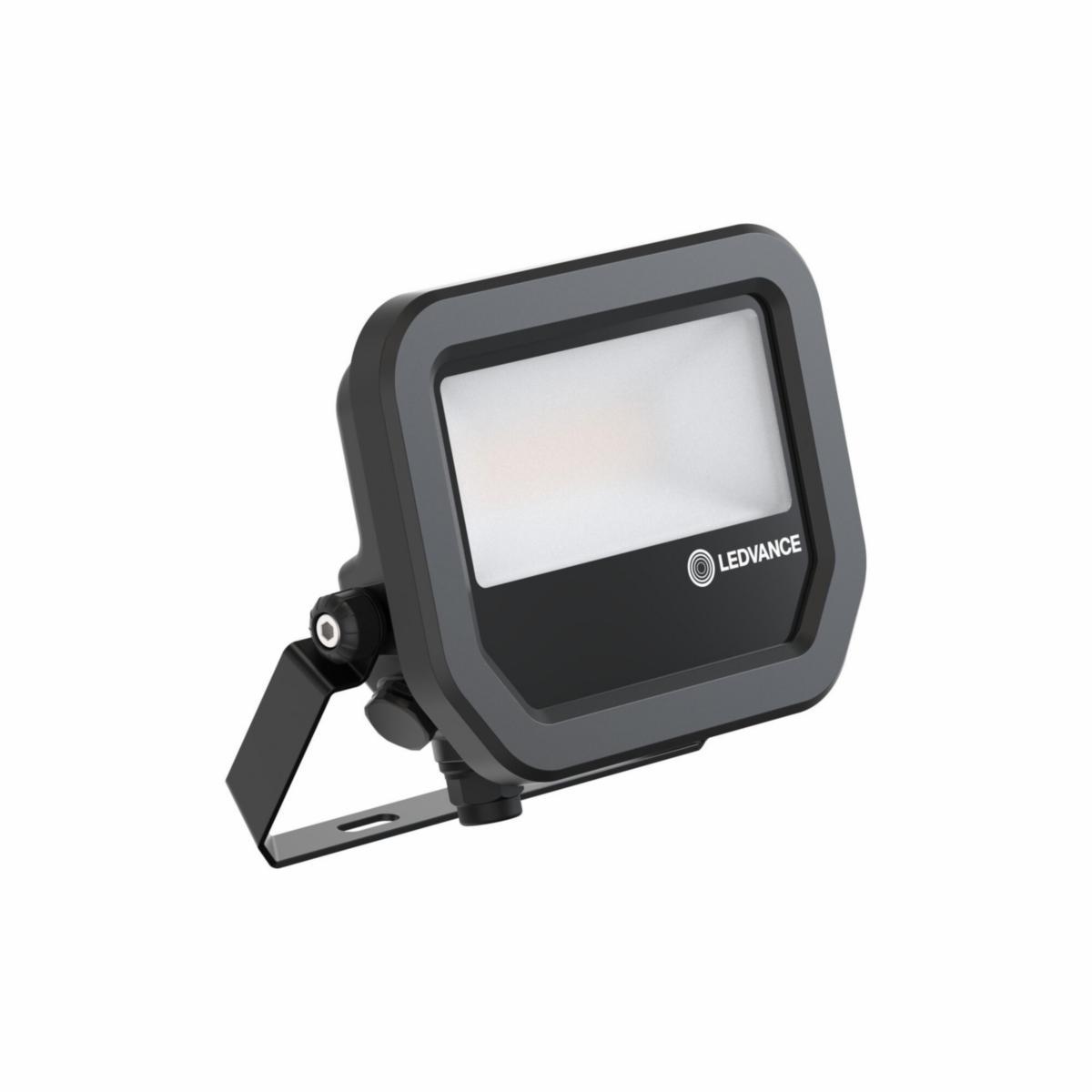

FLOODLIGHT 10 PS 840 BLACK
Article number: Suppl. article no:
7770298
4099854305665
to see price and stock
LEDVANCE FLOODLIGHT PERFORMANCE with symmetrical light distribution replaces traditional floodlight fixtures with halogen light sources. High efficiency of up to 150 lm/W. Available in 7 different effects, 3 color temperatures and with black or white luminaire housing. All variants have POWER-SELECT function with adjustable lumen directly on the luminaire. Matt diffuser in tempered glass for a uniform light pattern and low glare. Mounting bracket with 30° angle and wide rotation range. With breathing membrane to optimize air exchange and prevent condensation inside the fixture. Durable design with robust cable entry and integrated water stop function for outdoor applications such as building facades, residential areas, gardens, parking lots and tunnels. 5 year warranty.
- Article number: 7770298
- Suppl. article no: 4099854305665
- Ean no: 4099854305665
- Material class QU2180
- This is an alternative to item 7766585
Technical data
- Packagin Size: 1 PCS/12 PCS
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2-1: 1200 lm
- Colour temperature: 4000 K
- Dimming DALI-2: No
- Light distribution: Symmetric
- Luminous flux: 850-1200 lm
- Housing colour: Black
- Length: 136 mm
- Width: 36 mm
- Height/depth: 127 mm
- Nominal voltage: 220-240 V
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 0
- Material cover: Glass opal
- Impact strength: IK07
- Degree of protection (IP): IP66
- With control gear: Yes
- Type of control gear: Electronic ballast
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Surface brushed: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimmable: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DALI: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Colour consistency (McAdam ellipse): SDCM5
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Adjustability: Swivelling
- Housing material: Aluminium
- Lamp holder: None
- Colour of light: White
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 145 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -30-50 °C
- Reflector: Matt
- Protection class according to IEC 61140: I
- Beam angle: Open beam/diffuse
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 98
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 125
- IFTTT support available: Yes
- Emergency power supply integrated: No
- Exchangeable control gear: No
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Reflector colour: White
- Nominal current: 40 mA
- Connection type: Push-in clamp
- Compatible with Casambi: No
- UK Building Regs Part B fire rated - 30 minutes: No
- UK Building Regs Part B fire rated - 90 minutes: No
- UK Building Regs Part B fire rated - 60 minutes: No
- REACH Date: 2024-01-01
- REACH Information obligation: No
