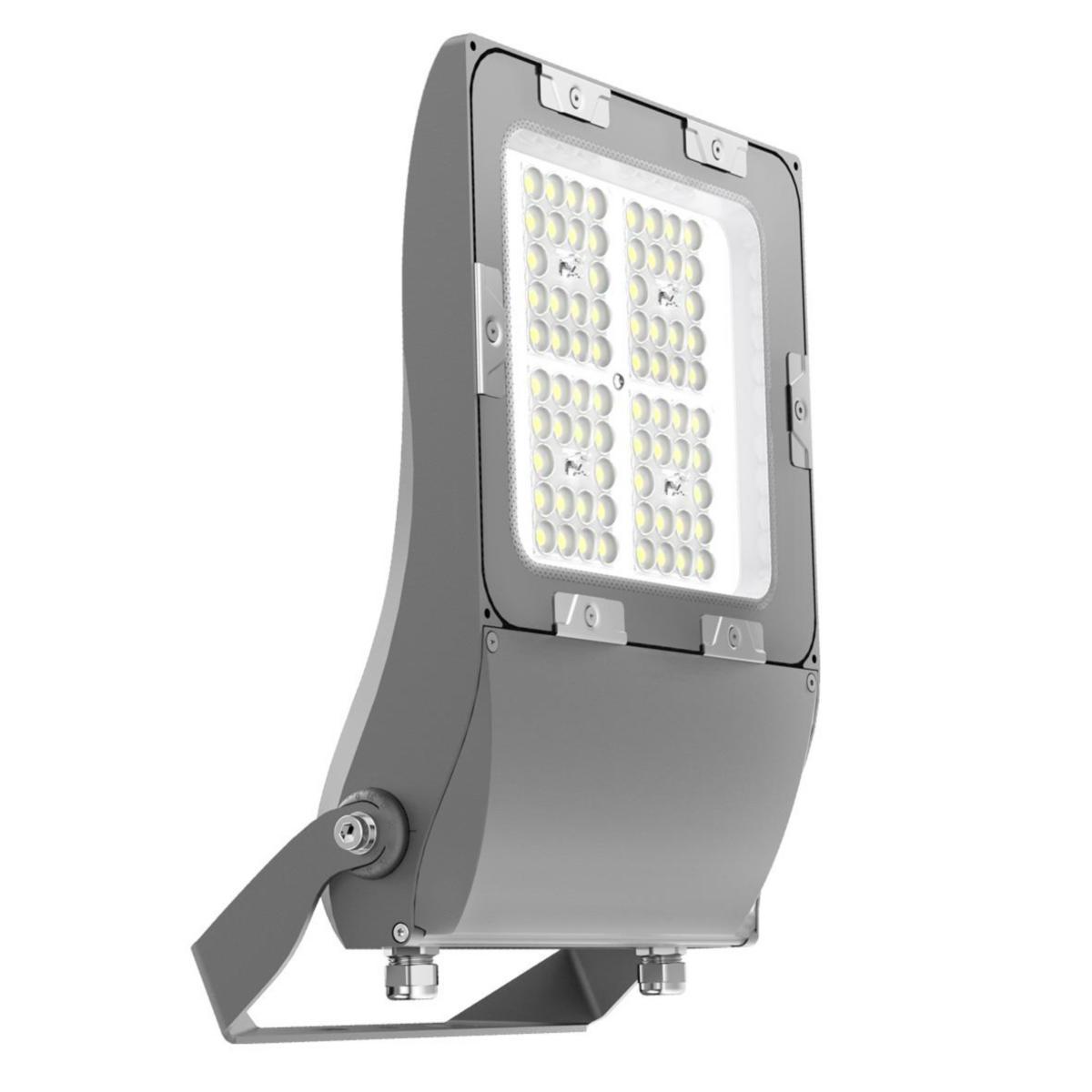

Floodlight Elly, asymmetrical 90x40°
Floodl. Elly 100W 4´K
Article number: Suppl. article no:
7770195
EB-100
to see price and stock
Durable and energy-efficient floodlight. With high luminous flux, 160-170lm/W. On/off, 0-10V. Asymmetric 90x40° beam angle. IP66. IK08. Easy to install, adjustable bracket with clear degree marking. (Connection cable not included). Connection of 0-10V is via a separate screw connection and is connected separately with a joint inside the luminaire. Cast aluminum housing. Gray fade-resistant powder coating. Corrosion class C4 - which makes Elly extra durable for exposed environments. Suitable for both general lighting in warehouses and industries. Can be used both indoors and outdoors. Also suitable for illuminating gardens or buildings.
Eco-Design = easy to maintain and possibility to change LED and Driver.
Recommended ambient temperature -20 – 50C°. D-marked.
Eco-Design = easy to maintain and possibility to change LED and Driver.
Recommended ambient temperature -20 – 50C°. D-marked.
- Article number: 7770195
- Suppl. article no: EB-100
- Ean no: 7340132806471
- Material class QU2110
Technical data
- Packagin Size: 1 PCS/4 PCS
- Energy label: C
- Max. system power: 100 W
- Rated luminous flux according to IEC 62722-2- 1: 17200 lm
- Colour temperature: 4000 K
- Light distribution: Asymmetric
- Luminous flux: 16282-17200 lm
- Housing colour: Grey
- Length: 386 mm
- Width: 260 mm
- Height/depth: 151 mm
- Nominal voltage: 100-240 V
- Lamp type: LED exchangeable
- Suitable for lamp power: 100 W
- Impact strength: IK08
- Degree of protection (IP): IP66
- With control gear: Yes
- Connectable conductor cross section: 1 mm²
- Number of poles: 3
- Surface brushed: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimmable: Yes
- Dimming 0-10 V: Yes
- Power factor: 0.95
- Colour rendering index CRI: 70-79
- Adjustability: Swivelling
- Housing material: Aluminium
- Lamp holder: None
- Conductor cross section: 1 mm²
- Colour of light: White
- Light outlet: Direct
- Luminaire efficacy: 170 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Beam angle: Open beam/diffuse
- Voltage type: AC
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 8
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 14
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- REACH Date: 2024-03-18
- REACH Information obligation: No
