SG Armaturen
Spotlight LED Wax, SG-Armaturen
LUMINAIRE WAX 15/28W 3K 27° GR
Article number: Suppl. article no:
7764465
8246090986
to see price and stock

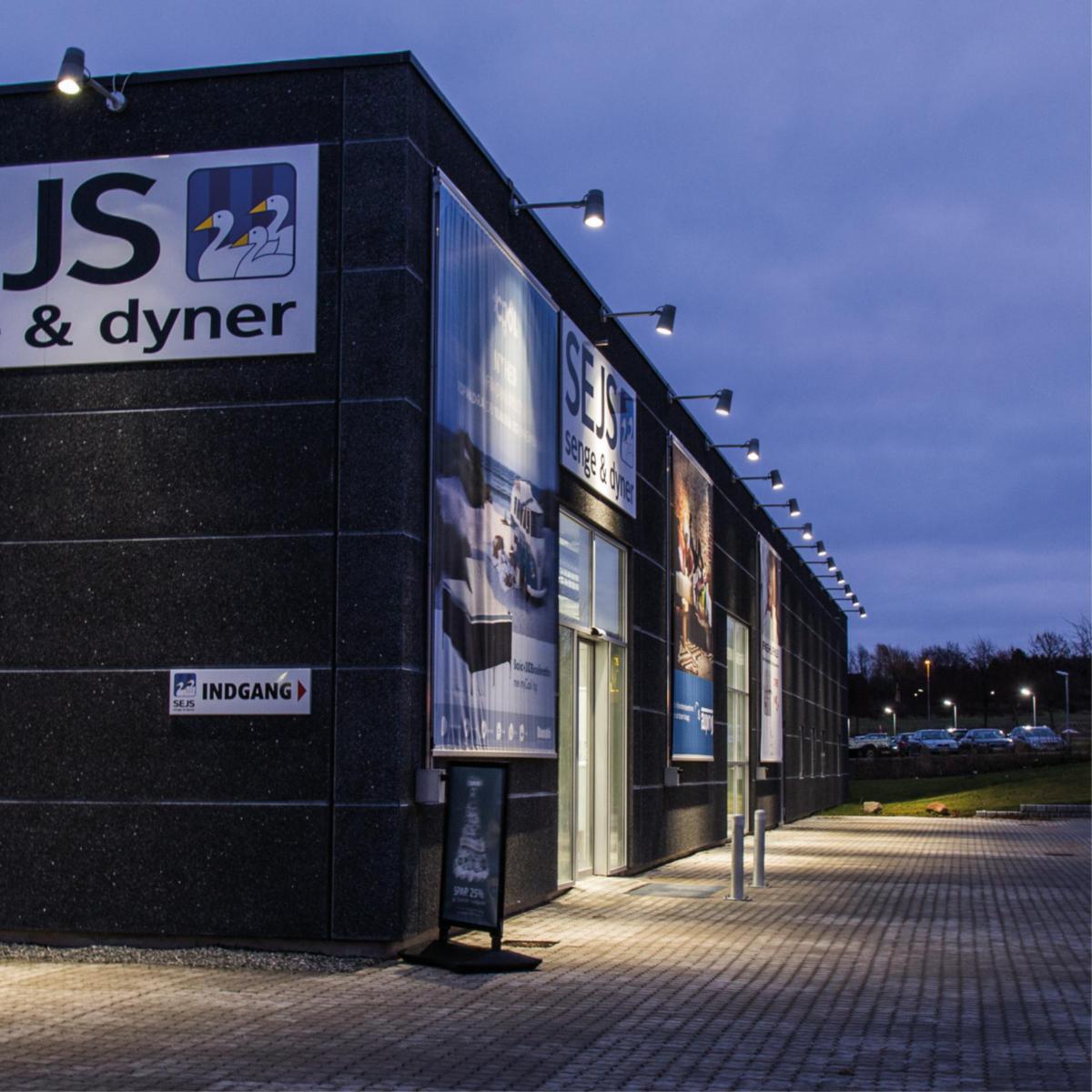

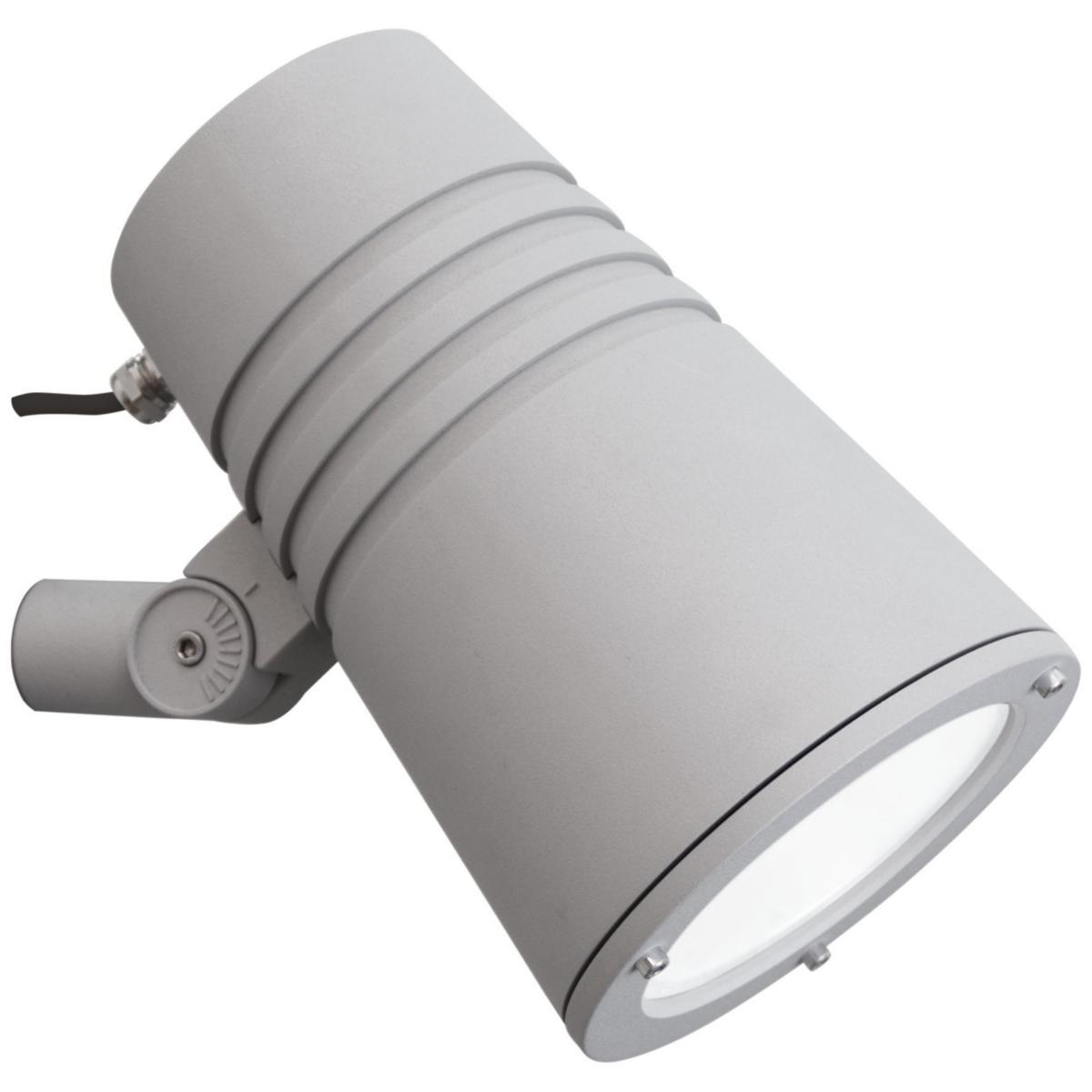

Wax is a compact IP66 LED headlight in a stylish design that is used to create creative lighting environments in parks, activity areas or squares. The adjustable headlights are available with different scattering angles and light flows, which gives the opportunity to create different effects in the conservatory. Mounted on a facade or post using different accessories that are ordered separately. Frame of lacquered cast aluminum with tempered glass. Available in light gray and black outdoor paint. Incl. 10m 2x1 mm² connection cable.
- Article number: 7764465
- Suppl. article no: 8246090986
- Ean no: 5703821172776
- Material class QU2100
Technical data
- Packagin Size: 1 ST/45 ST/45 ST
- Max. system power: 27 W
- Rated luminous flux according to IEC 62722-2-1: 2440 lm
- Colour temperature: 3000 K
- Light distribution: Symmetric
- Housing colour: Grey
- Length: 268 mm
- Width: 180 mm
- Height/depth: 268 mm
- Nominal voltage: 230 V
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 1
- Material cover: Glass transparent
- Suitable for lamp power: 27 W
- Impact strength: IK07
- Degree of protection (IP): IP66
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Surface brushed: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimmable: Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DALI: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 100
- Colour consistency (McAdam ellipse): SDCM2
- Colour rendering index CRI: 80-89
- Adjustability: Rotatable
- Housing material: Aluminium
- Lamp holder: Other
- Conductor cross section: 1 mm²
- Colour of light: White
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 90 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Reflector: High-gloss
- Protection class according to IEC 61140: II
- Degree of protection (NEMA): Other
- Beam angle: Medium beam 21-40°
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Galvanised
- Outer diameter: 180 mm
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- IFTTT support available: No
- Exchangeable control gear: No
- Connection type: Other
- Rated life time L90/B10 at 25 °C: 100000 h
- Rated life time L80/B10 at 25 °C: 0 h
- REACH Date: 2021-08-25
- Cable length: 10 m
- Diameter: 180 mm
- Lowest energy efficiency class of the exchangeable lamp: A
- With radio control: No
- With light regulation program control: No
- Adjustable optics: Yes
- Highest energy efficiency class of the exchangeable lamp: A++
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Type of connection for sensor/communication module: Other
- REACH Information obligation: No
- With connection cable: Yes
- Remote control: None
- Dimming depending on control gear: No
- Mounting method: Other
