Westal
Spotlight Zatt LED, Westal
FLOODLIGHT LED 30W 4000K SV
Article number: Suppl. article no:
7764222
2332-61
to see price and stock

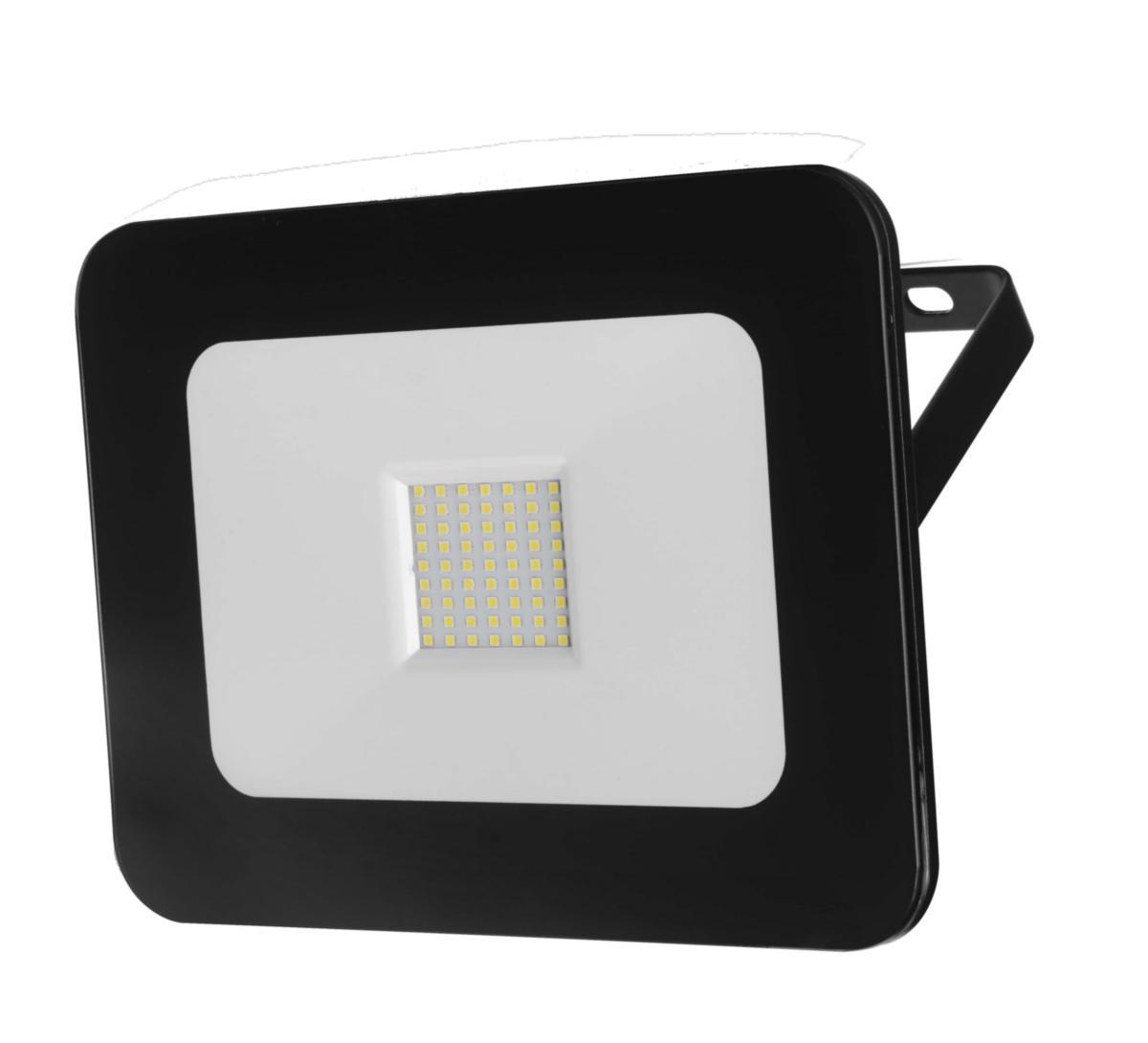

LED spotlight symmetrical light pattern and lockable jaw.
Integrated LED unit in powder-coated aluminium.
Complete with operating device for 230V, incl. 1 m rubber cable.
Integrated LED unit in powder-coated aluminium.
Complete with operating device for 230V, incl. 1 m rubber cable.
- Article number: 7764222
- Suppl. article no: 2332-61
- Ean no: 7393047642221
- Material class QU2130
Technical data
- Packagin Size: 1 ST/12 ST/12 ST
- Max. system power: 30 W
- Rated luminous flux according to IEC 62722-2- 1: 2420 lm
- Colour temperature: 4000 K
- Light distribution: Symmetric
- Housing colour: Black
- Length: 127 mm
- Width: 143 mm
- Height/depth: 27 mm
- Nominal voltage: 220-240 V
- Lamp type: LED not exchangeable
- Material cover: Glass transparent
- Impact strength: IK07
- Degree of protection (IP): IP65
- Type of control gear: Not required
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour consistency (McAdam ellipse): SDCM5
- Colour rendering index CRI: 70-79
- Adjustability: Swivelling
- Housing material: Aluminium
- Conductor cross section: 1 mm²
- Colour of light: White
- Light outlet: Direct
- Luminaire efficacy: 81 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: Yes
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
- Reflector: High-gloss
- Protection class according to IEC 61140: I
- Beam angle: 41-80° - Wide beam
- Voltage type: AC/DC
- Type of wiring: Ending
- Surface protection: Powder coating
- Connection type: Other
- REACH Date: 2021-12-08
- REACH Information obligation: No
