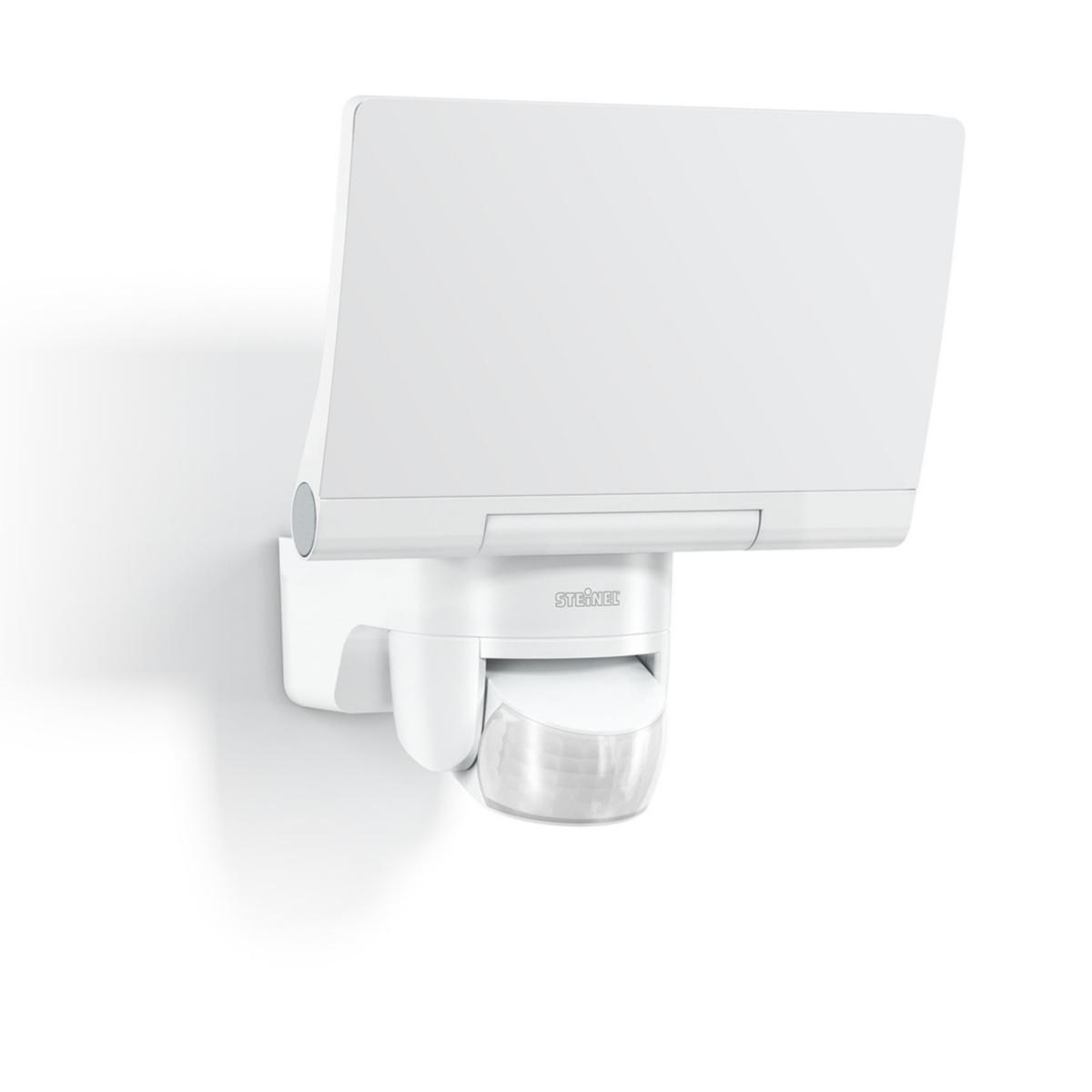

Spotlight XLED home2 Sensor, Steinel

The searchlight is lit and gives a strong light when the motion detector detects movement in the surveillance area. XLED Home can be used on driveways, courtyards, parking areas, around buildings, etc. XLED Home is intended and developed for operation with an integrated motion detector. The flow of light from the XLED Home is equivalent to a halogen serachlight with around a 120 W output. The searchlight is equipped with the ATC - Active Thermo Control function to ensure a long service life for the LED-lamps. The ATC function ensures that the max temperature for the LED lights is not exceeded.
Assembly: Wall mounting height is 1.80-2.70 m. If mounted higher, the range of the motion detector will be shorter. Outdoors, indoors. Two mounting holes c/c 53 mm.
Connection: Surface mounted cable entry from underneath or behind. Terminal block 4x2.5 mm² (phase, neutral, igniter, earth).
Version: Body, arm and wall bracket of polycarbonate. Floodlight head of die-cast aluminium with cooling fins. The floodlight head is pivotable 270° and can be angled 60-150° relative to the ground.
Motion detector: IR-sensor, monitors max 14 m for people walking (not straight towards the sensor), at the recommended mounting height. Surveillance angle 140° with undercreep protection. The illumination time, i.e. how long the floodlight should stay on after the last motion detection, is adjustable from 10 seconds to 35 minutes. Equipped with an adjustable twilight relay.
Light source: 170x LEDs with total output of 14.8 W.
Other: Equipped with Active Thermo Control (ATC), which monitors the operating temperature in the floodlights. When the temperature in the floodlight becomes to high, the voltage to the LED light sources is reduced, which lowers the temperature. Class I.
