Westal

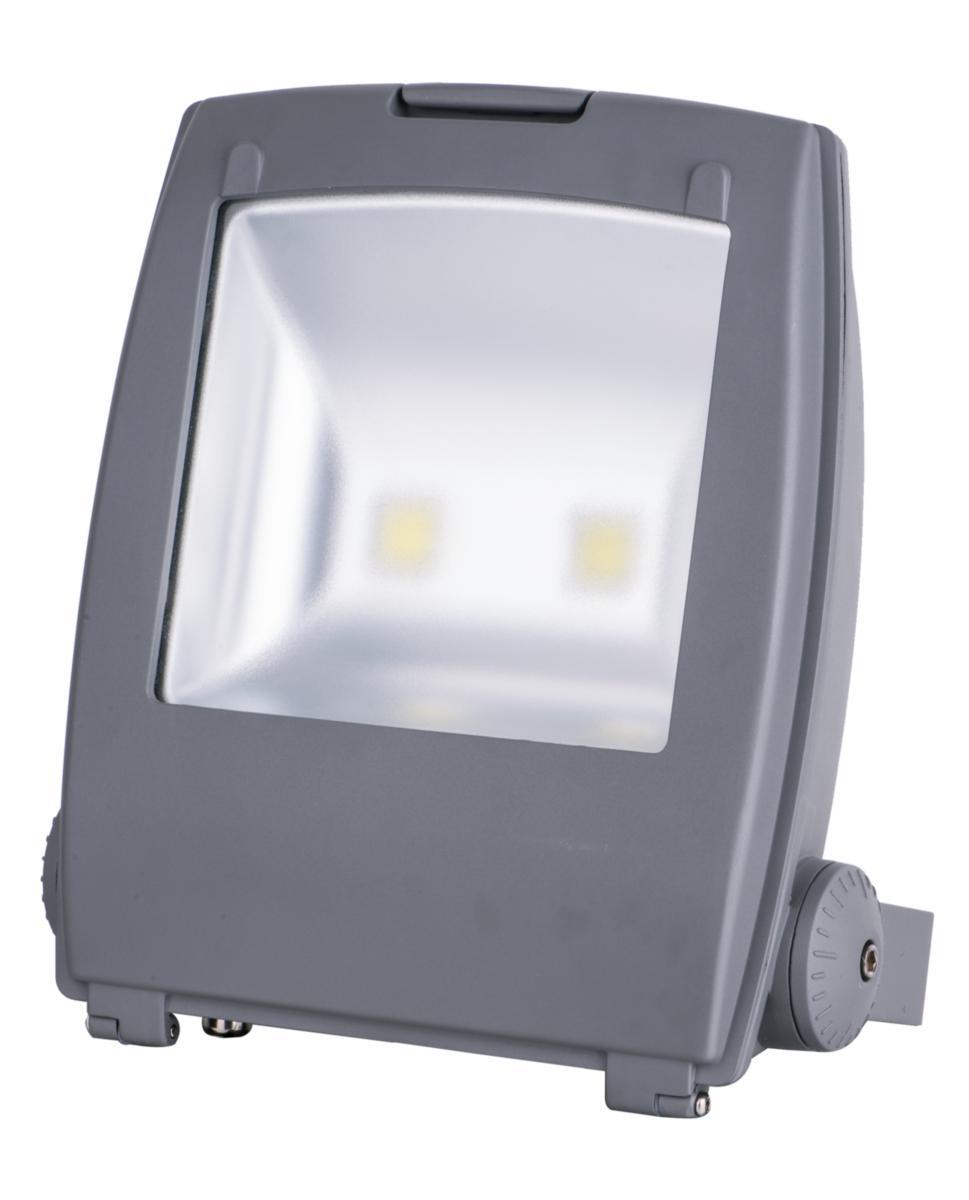

Spotlight LED Magnum Symmetrical, Westal
FLOODL 100W 7830LM 4500K ALU MAGNUM
Article number: Suppl. article no:
7761566
2433-60
to see price and stock
Symmetrical headlamp made of chromed and powder-coated aluminIum with openable service door.
The LED insert is exchangeable. The fitting is easy to install using the adjustable jaw on walls, ceilings or beams, etc.
Comes with 1 m earthed rubber cable without plug for connection to coupling box, dusk relay or attendance detector.
Suitable for lighting of, for example, parking spaces, gates, around buildings and ramps.
With and without built-in presence sensor and light relay.
The LED insert is exchangeable. The fitting is easy to install using the adjustable jaw on walls, ceilings or beams, etc.
Comes with 1 m earthed rubber cable without plug for connection to coupling box, dusk relay or attendance detector.
Suitable for lighting of, for example, parking spaces, gates, around buildings and ramps.
With and without built-in presence sensor and light relay.
- Article number: 7761566
- Suppl. article no: 2433-60
- Ean no: 7393047743362
- Material class QU2130
Technical data
- Packagin Size: 1 ST/2 ST
- Max. system power: 100 W
- Rated luminous flux according to IEC 62722-2- 1: 8120 lm
- Colour temperature: 4500 K
- Light distribution: Symmetric
- Housing colour: Grey
- Length: 470 mm
- Width: 390 mm
- Height/depth: 127 mm
- Nominal voltage: 220-240 V
- Lamp type: LED exchangeable
- Material cover: Glass matt/satinized
- Impact strength: IK09
- Degree of protection (IP): IP65
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour consistency (McAdam ellipse): SDCM5
- Colour rendering index CRI: 70-79
- Adjustability: Swivelling
- Housing material: Aluminium
- Conductor cross section: 1.5 mm²
- Colour of light: White
- Light outlet: Direct
- Luminaire efficacy: 81 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: Yes
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Reflector: Matt
- Protection class according to IEC 61140: I
- Beam angle: > 80° - Extreme wide beam
- Voltage type: AC/DC
- Type of wiring: Ending
- Connection type: Other
- REACH Date: 2021-12-08
- Type: Magnum Symmetrical
- REACH Information obligation: No
