Hide-a-lite

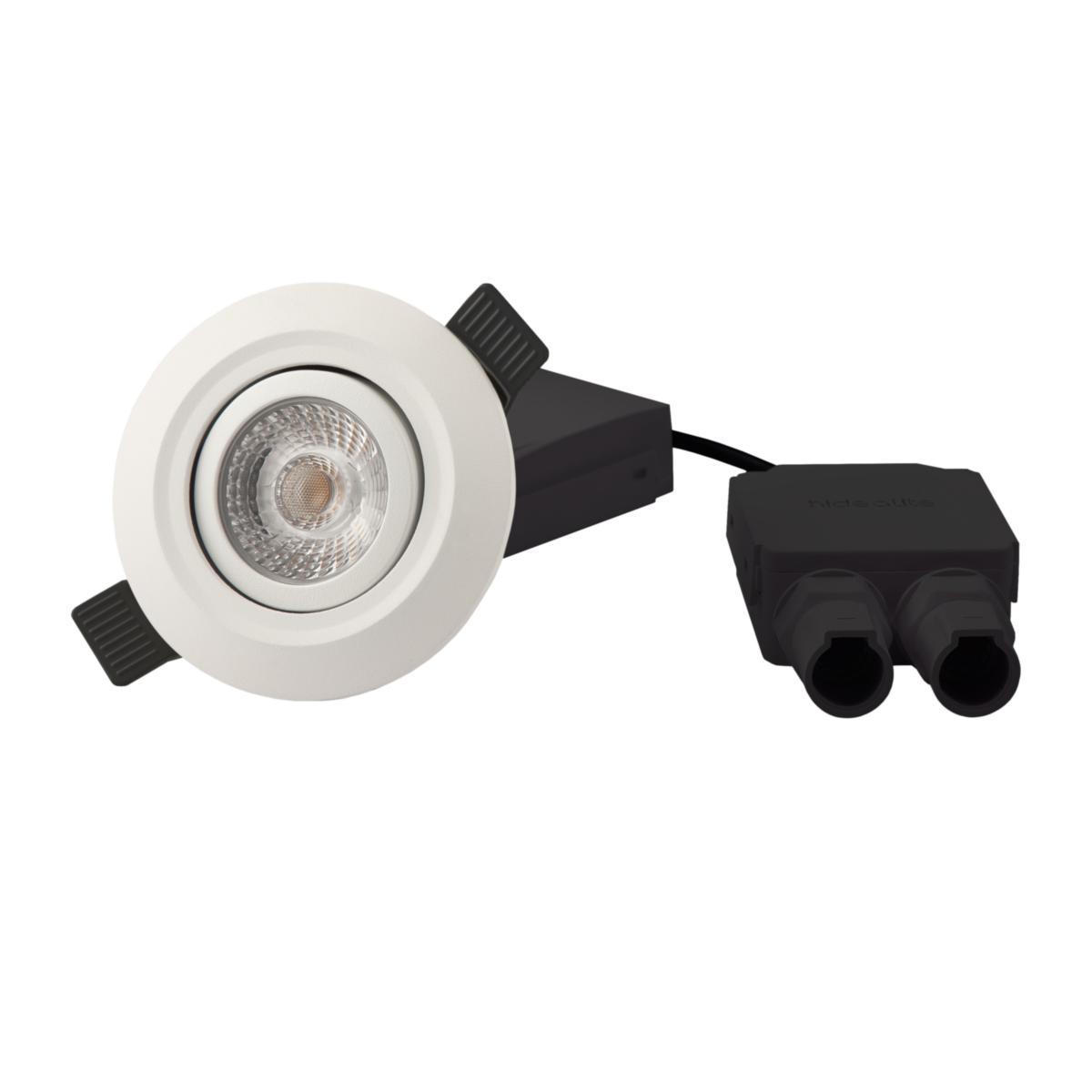

Downlight LED Comfort Quick Outdoor, Hide-a-lite
DOWNL QUICK OUTDOOR WHIT 3000K
Artikelnummer: Lev. artikelnr:
7702967
7702967
för att se saldo och pris
Low-profile and adjustable outdoor luminaire in the Comfort series with a built-in height of only 40 mm. All parts are IP44 and approved for installation in open roof constructions or directly against insulation. Available in white, gray and anthracite. Punching dimensions between 73-85 - perfect for ROT work. Complete with phase-dimmable drive unit, junction box with quick terminals for forwarding and screw-free strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.
- Article number: 7702967
- Suppl. article no: 7702967
- Ean no: 7392971130019
- Material class QT4320
Teknisk data
- Packagin Size: 1 PCS/30 PCS/30 PCS
- Max. system power: 6 W
- Rated luminous flux according to IEC 62722-2-1: 435 lm
- Colour temperature: 3000 K
- Housing colour: White
- Luminous flux: 435 lm
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Outer diameter: 95 mm
- Height/depth: 40 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 920 cd
- Reflector: Other
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-45 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: None
- Material cover: Plastic, transparent
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 73 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Built-in height/depth: 32 mm
- Connection type: Push-in clamp
- Dimming GPRS: No
- Dimming depending on control gear: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2022-06-01
- REACH Information obligation: No
