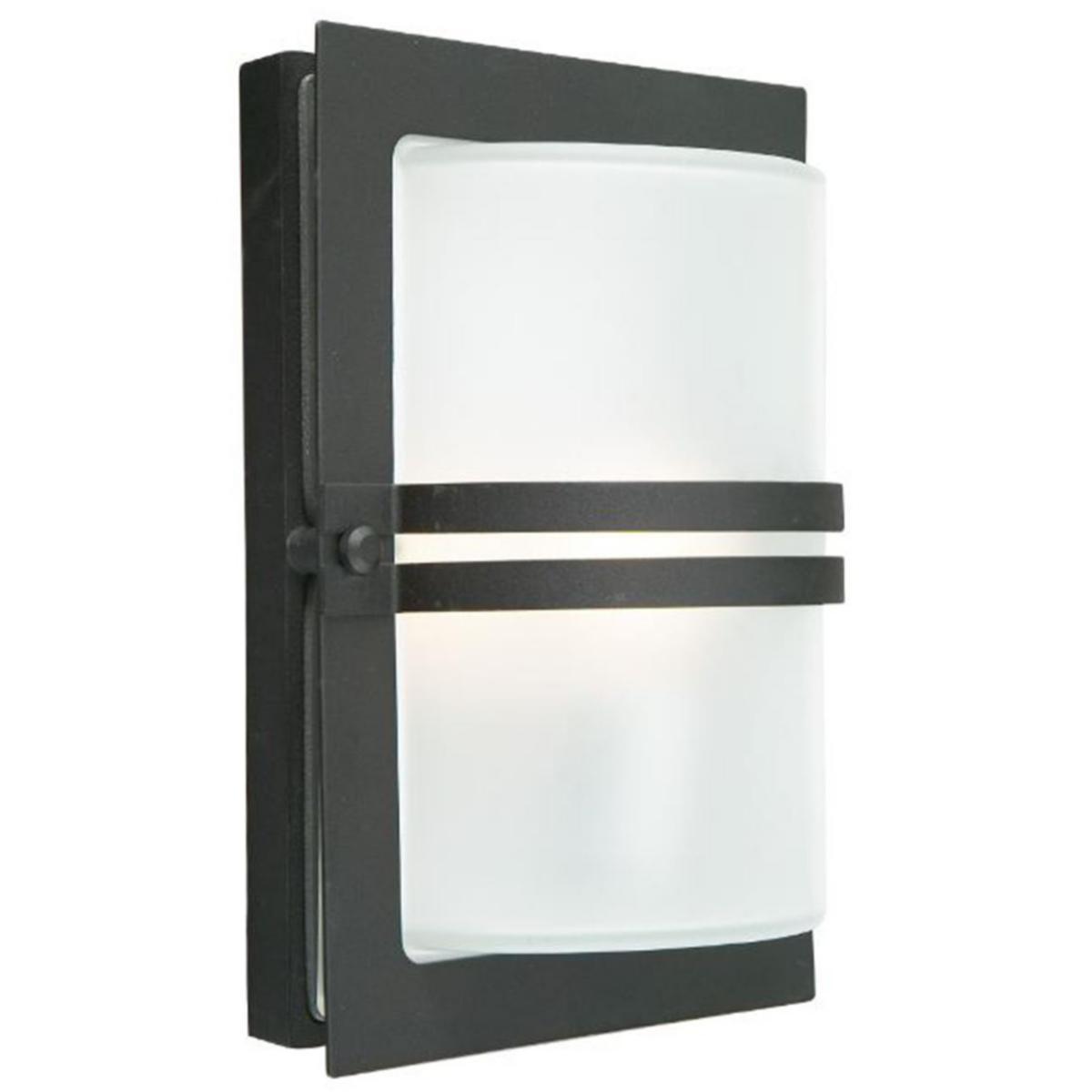

Wall fixture Basel, Norlys
WALL LUM 661 BASEL BLACK
Article number: Suppl. article no:
7722237
661B
to see price and stock
Wall fixture with a base in cast aluminium and front in galvanised, stainless or black powder-coated steel.
Fixture available with clear or frosted glass.
The light around the fixture makes for an intriguing pattern on the wall.
Stainless steel is not maintenance-free and must be oiled. The copper becomes oxidised after some time.
Fixture available with clear or frosted glass.
The light around the fixture makes for an intriguing pattern on the wall.
Stainless steel is not maintenance-free and must be oiled. The copper becomes oxidised after some time.
- Article number: 7722237
- Suppl. article no: 661B
- Ean no: 7042896610065
- Material class QU023A
Technical data
- Packagin Size: 1 ST/4 ST/4 ST/24 ST
- Type: Basel 661
- Housing colour: Black
- Dimming DALI: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Housing material: Aluminium
- Material cover: Glass opal
- Lamp holder: E27
- Lamp type: Incandescent lamp
- With light source: No
- Width: 210 mm
- Height/depth: 120 mm
- Length: 310 mm
- Suitable for number of light sources: 1
- Protection class according to IEC 61140: I
- Degree of protection (IP): IP54
- Type of control gear: Not required
- With control gear: No
- Colour of light: White
- With movement sensor: No
- With air slots: No
- With light sensor: No
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: No
- Type of grid: None
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming potentiometer (integrated): No
- Dimming manufacturer's proprietary system: No
- Filament test according to IEC 60695-2-11: None
- Conductor cross section: 2.5 mm²
- Suitable for light line configuration: No
- Type of wiring: Suitable for loop-through wiring
- Suitable for wall mounting: Yes
- Connection type: Other
- REACH Date: 2021-06-15
- REACH Information obligation: No
- Dimming GPRS: No
