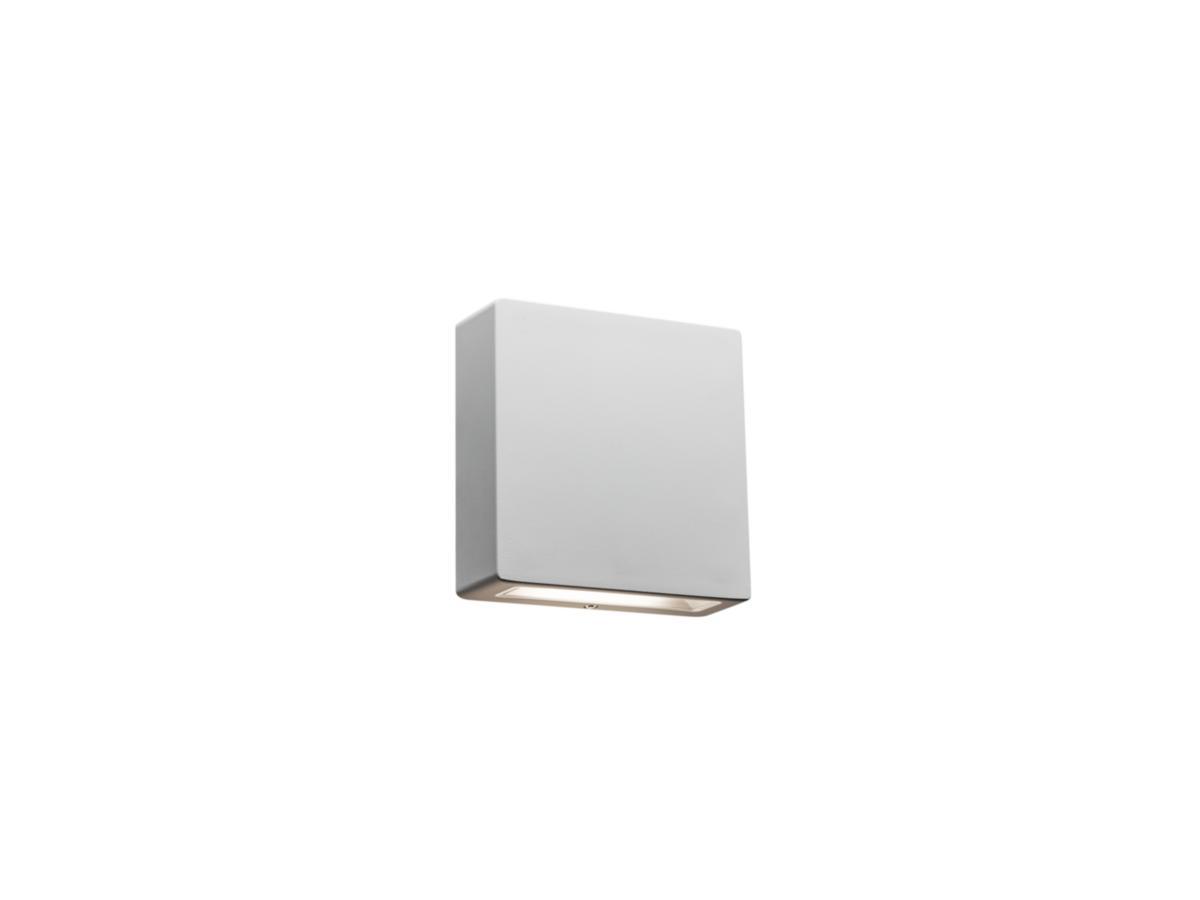

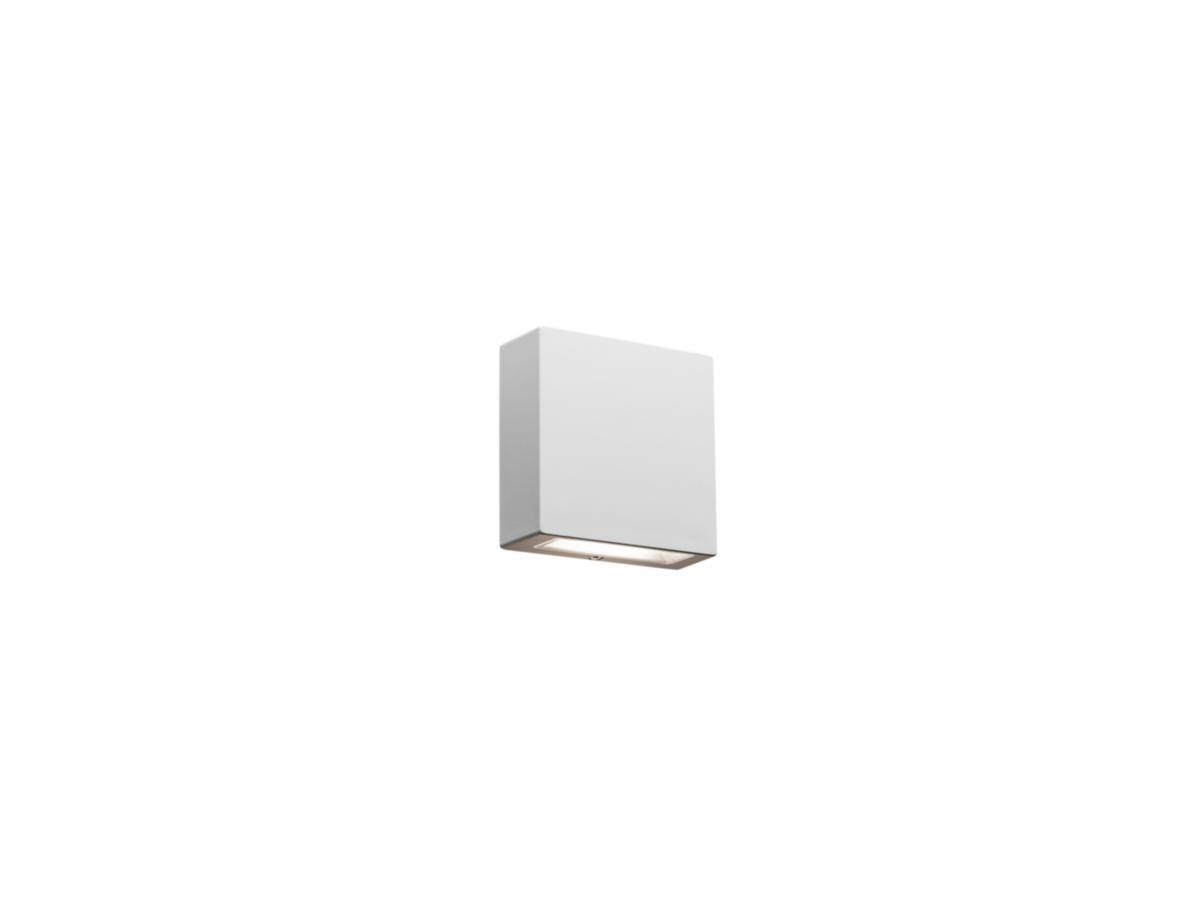

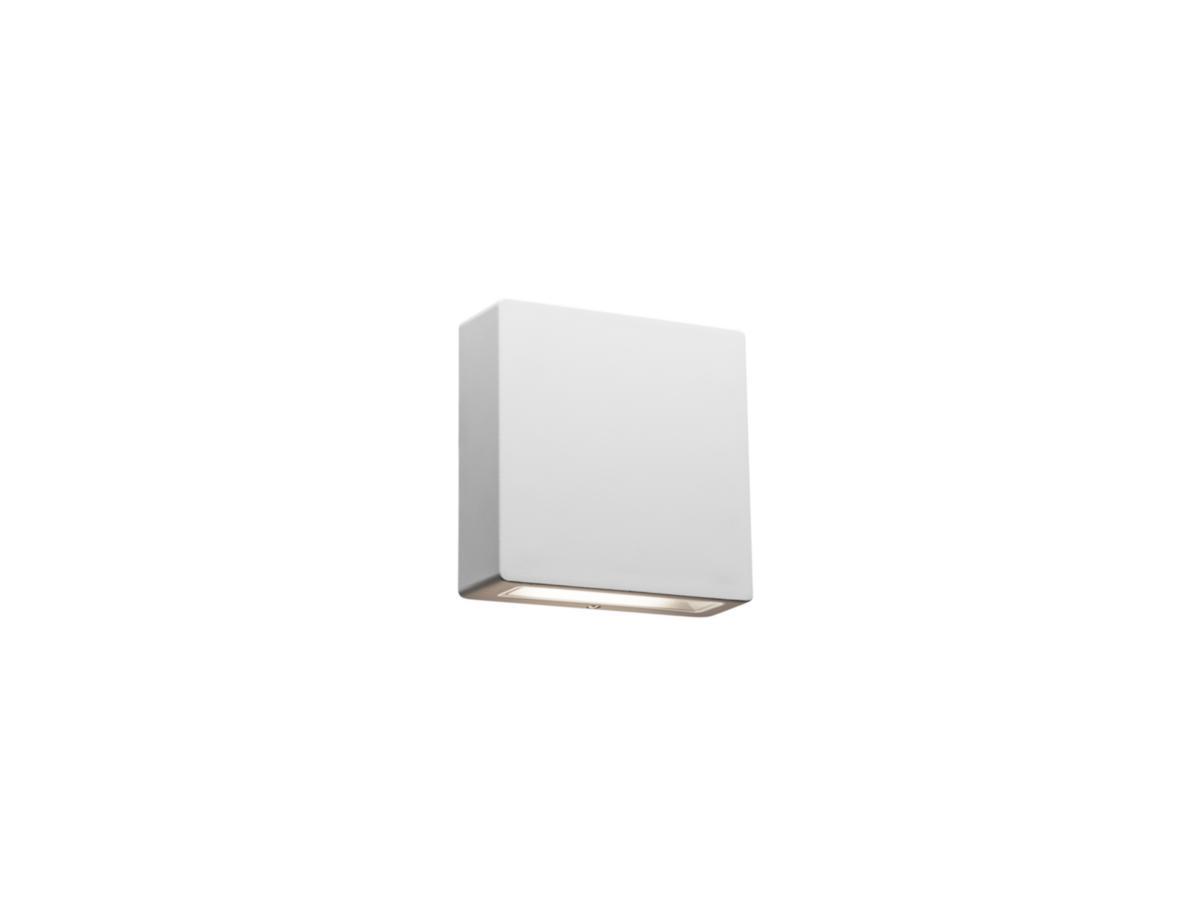

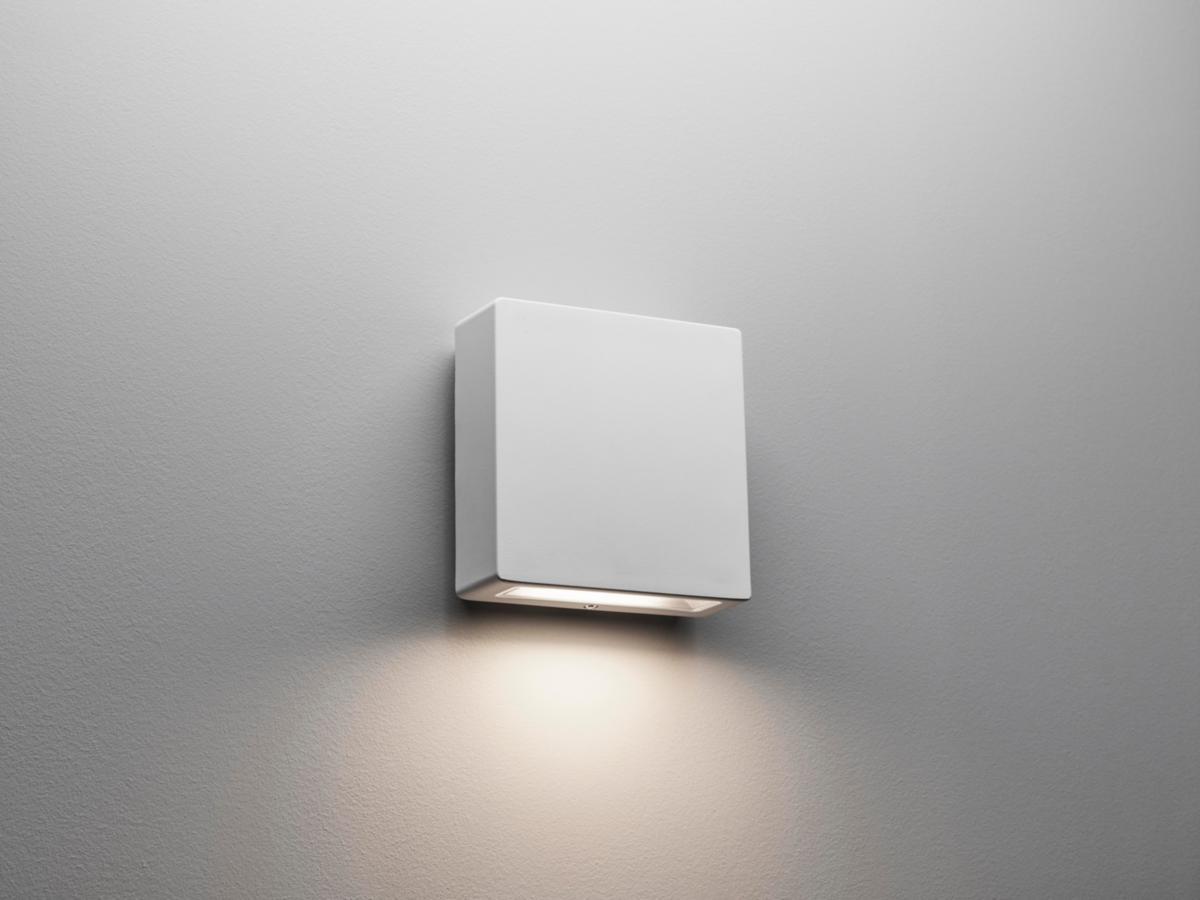

Wall luminaire Pixo M I

Wallfixt Pixo M I White

Article number:

7706234

Suppl. article no:

4843

Normally in stock

to view the store status of the store

to see price and stock

Pixo is not just a facade fixture; it is a style icon – an ultimate luminaire for both indoor and outdoor use in both private and public environments. It not only highlights your facade, but also your taste for Nordic design. Easily installed dimmable luminaire in two sizes for direct connection to 230V. Separate back cover and built-in distance frame where the back cover is equipped with cable entries that enable external cabling. Replaceable LED and driver. Selectable color temperature and adjustable light flow via DIP switch. Pixo is designed with IP65 design, IK10 and durable powder coating for tough outdoor climates. With accessories such as decorative fronts, you can dim the luminaire and change its appearance to create a unique style that harmonizes with the aesthetics of your facade. The decorative fronts can be painted in any color on request.

Article number:
7706234
Copy to clipboard
Suppl. article no:
4843
Copy to clipboard
Ean no:
7392971149103
Copy to clipboard
Material class
QT7020
Copy to clipboard

Technical data

Packagin Size: 1 PCS/8 PCS
Max. system power: 21 W
Rated luminous flux according to IEC 62722-2- 1: 1790 lm
Colour temperature: 2700-4000 K
Housing colour: White
Dimming DALI: No
Dimming DALI-2: No
Light distribution: Symmetric
Lamp type: LED exchangeable
Suitable for number of light sources: 1
Beam angle: > 80° - Extreme wide beam
Lamp holder: Other
Degree of protection (IP): IP65
Length: 160 mm
Width: 160 mm
Height/depth: 68 mm
Type of control gear: LED operating device current-controlled
Material cover: Plastic, opal
Housing material: Aluminium
Surface protection housing: Powder coating
With control gear: Yes
With light source: Yes
Protection class according to IEC 61140: I
Impact strength: IK10
Nominal voltage: 220-240 V
Voltage type: AC
Colour rendering index CRI: 80-89
Light outlet: Direct
Suitable for workplace according to EN 12464-1: No
Number of poles: 5
Dimming phase cut-off (trailing edge): Yes
Luminous intensity: 960 cd
Power factor: 0.9
Dimming phase cut-on (leading edge): No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
Dimmable: Yes
Conductor cross section: 2.5 mm²
Colour of light: White
Light distributor: Diffuser lens/optic/panel
Luminaire efficacy: 85 lm/W
Suitable for built-in mounting: No
Suitable for light line configuration: No
Suitable for suspended mounting: No
Suitable for surface mounting: Yes
Rated lifetime L70/B50 at 25 °C: 100000 h
Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
Suitable for ceiling mounting: No
Type of grid: None
Type of wiring: Suitable for loop-through wiring
Total harmonic distortion (THD): 30 %
Colour consistency (McAdam ellipse): SDCM3
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 89 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 83 %
Flickering value Pst LM: 0.013
Beam angle adjustable: No
Colour of light adjustable: Positions
Luminous flux adjustable: Continuously variable
Max. number of luminaires per miniature circuit breaker B16 (MCB): 98
Max. number of luminaires per miniature circuit breaker C16 (MCB): 98
Stroboscope effect value SVM: 0.091
Exchangeable control gear: Yes
Energy efficiency class of the light source according to EU regulation 2019/2015: F
Suitable for wall mounting: Yes
Connection type: Push-in clamp
REACH Date: 2023-11-24
REACH Information obligation: No
