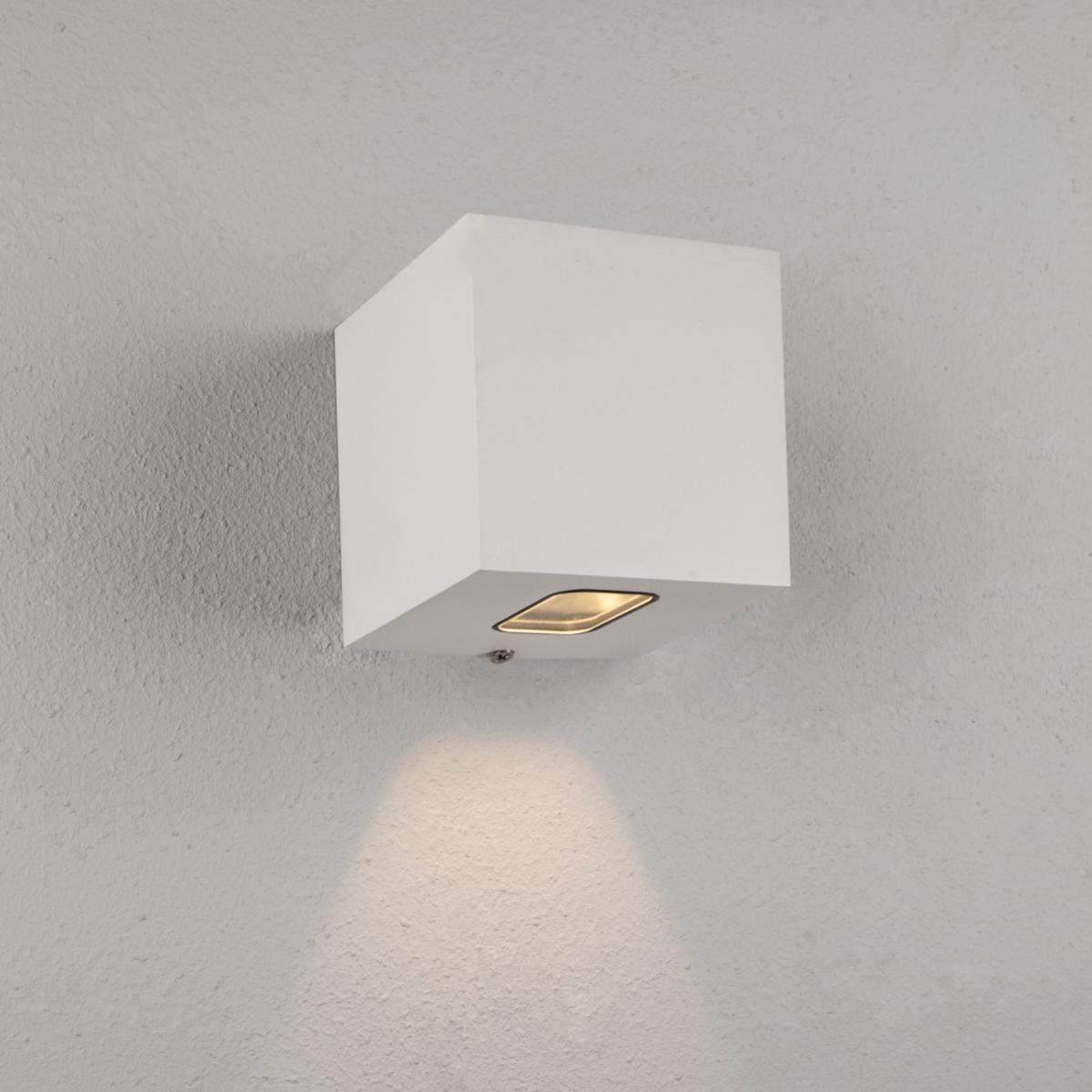

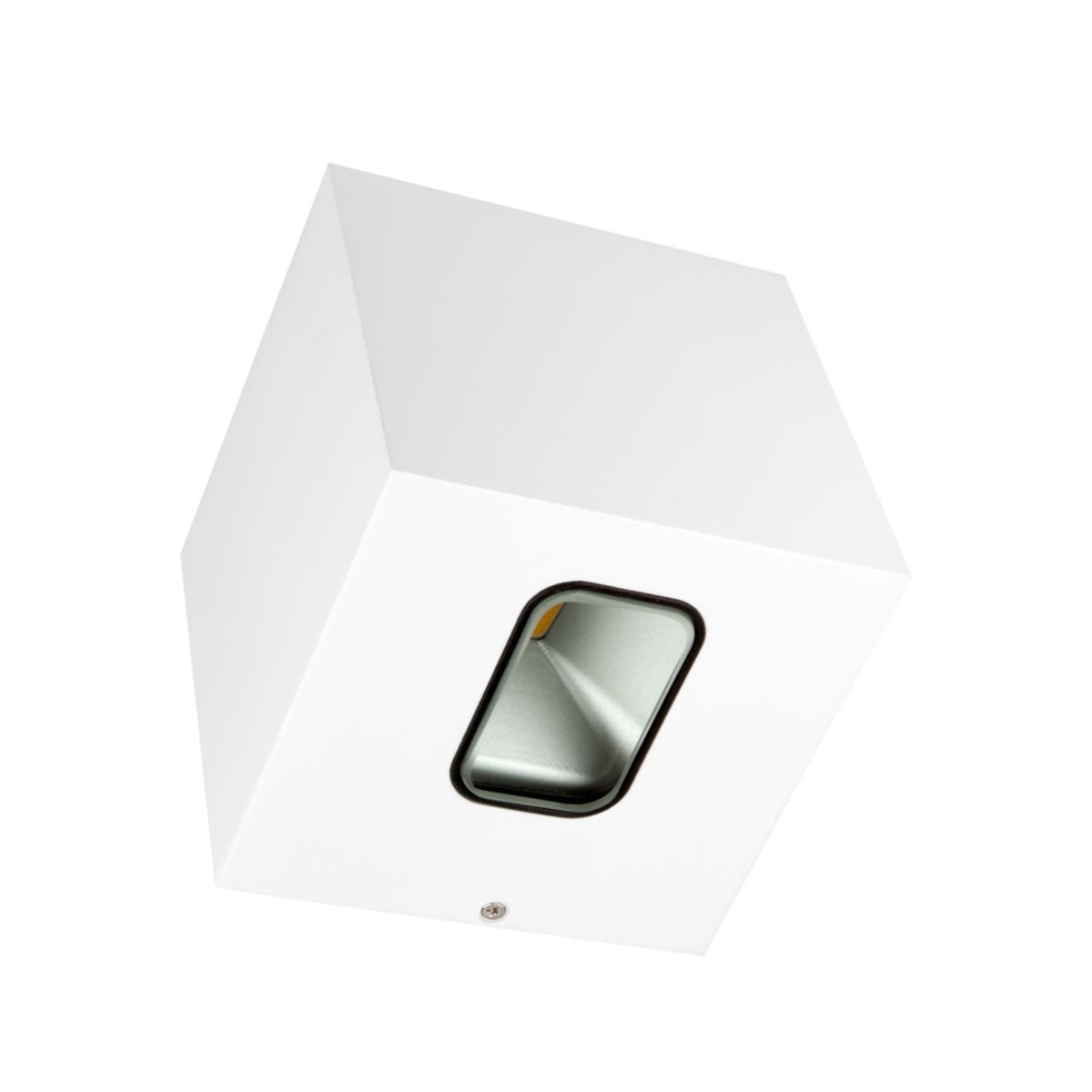

Wall fixture LED Cube I, Hide-a-lite
WALLFIXT CUBE I VIT 3000K CUBE I
Article number: Suppl. article no:
7704597
7704597
to see price and stock
Simple and stylish design makes our popular Cube a timeless favorite that lights up your facade and gives a welcoming impression. Separate back piece with double bushings and divergent quick-release terminal block for easy installation. IP65 rating and durable surface treatment with sandblasted finish in white, gray or anthracite. Built-in drive with adjustable light level via DIP switch. Possibility of dimming is available with external drive. Distance for surface-mounted cabling is available as an accessory.
- Article number: 7704597
- Suppl. article no: 7704597
- Ean no: 7392971140186
- Material class QT902B
Technical data
- Packagin Size: 1 ST/8 ST/8 ST
- Design: Light down
- Max. system power: 4 W
- Rated luminous flux according to IEC 62722-2-1: 155 lm
- Dimmable: Yes
- Colour temperature: 3000 K
- Housing colour: White
- Lamp type: LED not exchangeable
- Beam angle: Wide beam 41-80°
- Lamp holder: Other
- Dimming DALI: No
- Dimming DALI-2: No
- Material cover: Glass transparent
- Length: 100 mm
- Number of poles: 3
- Width: 100 mm
- Height/depth: 100 mm
- Type of control gear: LED operating device current-controlled
- Degree of protection (IP): IP65
- Housing material: Aluminium
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light distribution: Symmetric
- Light outlet: Direct
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 1
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Conductor cross section: 2.5 mm²
- Light distributor: Reflector
- Luminaire efficacy: 39 lm/W
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Colour consistency (McAdam ellipse): SDCM3
- Luminous intensity: 190 cd
- Emergency power supply integrated: No
- Surface protection housing: Powder coating
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 92 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 89 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 140
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 150
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Rated life time L80/B10 at 25 °C: 100000 h
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
