Hide-a-lite

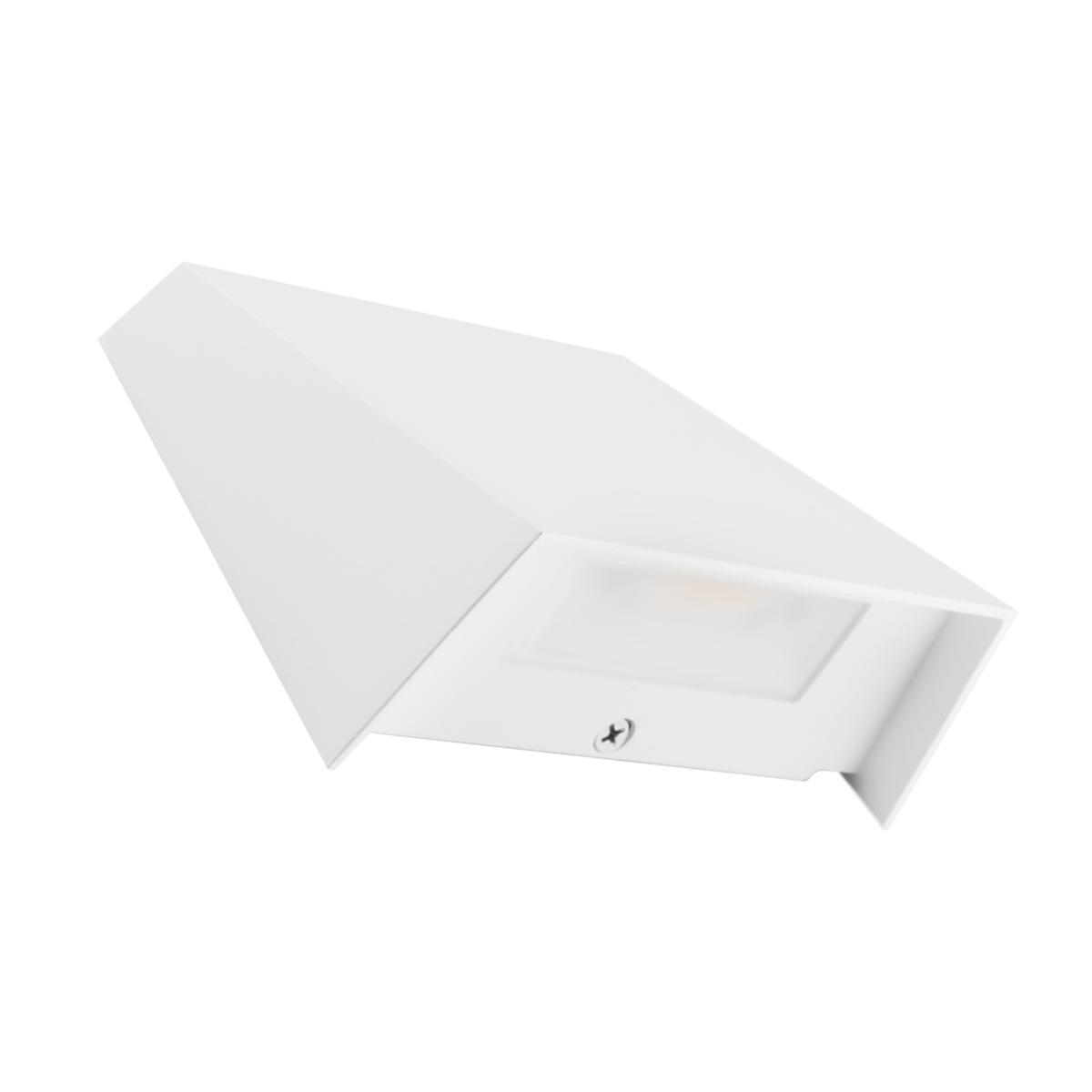

Wall fixture LED Edge

WALLFIXT EDGE VIT 3000K EDGE
Artikelnummer:
7704594
Lev. artikelnr:
7704594





 för att se saldo och pris
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.
Facade luminaire in a timeless design with a wide beam of light for facades and walls. Integrated phase dimmable driver for setting the desired light level via DIP-Switch Power. Impact-resistant (IK10) IP65 luminaire with durable powder coating to cope with our Nordic climate. Easy to install thanks to separate rear panel with double feed-throughs and transferable quick terminal. Distances for external cable routing are included. Integrated phase dimmable driver.
  • Article number:
    7704594
  • Suppl. article no:
    7704594
  • Ean no:
    7392971140155
  • Material class
    QT902B
Teknisk data
  • Packagin Size: 1 ST/16 ST/16 ST
  • Max. system power: 4 W
  • Rated luminous flux according to IEC 62722-2- 1: 215 lm
  • Colour temperature: 3000 K
  • Housing colour: White
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Light distribution: Symmetric
  • Lamp type: LED not exchangeable
  • Suitable for number of light sources: 1
  • Beam angle: Extreme wide beam >80°
  • Lamp holder: Other
  • Degree of protection (IP): IP65
  • Length: 120 mm
  • Width: 55 mm
  • Height/depth: 115 mm
  • Type of control gear: LED operating device current-controlled
  • Material cover: Glass transparent
  • Housing material: Aluminium
  • Surface protection housing: Powder coating
  • With control gear: Yes
  • With light source: Yes
  • Protection class according to IEC 61140: I
  • Impact strength: IK10
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Colour rendering index CRI: 80-89
  • Light outlet: Direct
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Dimming phase cut-off (trailing edge): Yes
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Dimming phase cut-on (leading edge): No
  • Filament test according to IEC 60695-2-11: 650 °C - 30 s
  • Dimmable: Yes
  • Conductor cross section: 1.5 mm²
  • Colour of light: White
  • Light distributor: Reflector
  • Luminaire efficacy: 54 lm/W
  • Suitable for built-in mounting: No
  • Suitable for light line configuration: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • Suitable for surface mounting: Yes
  • With light sensor: No
  • With air slots: No
  • With movement sensor: No
  • Rated ambient temperature according to IEC 62722-2-1: -20-45 °C
  • Suitable for ceiling mounting: No
  • Type of grid: None
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Covering of the luminaire with thermally insulating material possible: No
  • Operation by Bluetooth: No
  • Colour consistency (McAdam ellipse): SDCM3
  • Luminous intensity: 90 cd
  • Emergency power supply integrated: No
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 92 %
  • Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 89 %
  • Beam angle adjustable: No
  • Colour of light adjustable: No
  • Luminous flux adjustable: Continuously variable
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 140
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 150
  • Exchangeable control gear: Yes
  • Suitable for wall mounting: Yes
  • Connection type: Push-in clamp
  • Rated life time L80/B10 at 25 °C: 100000 h
  • REACH Date: 2022-06-01
  • Dimming GPRS: No
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: No
  • Dimming depending on control gear: No
