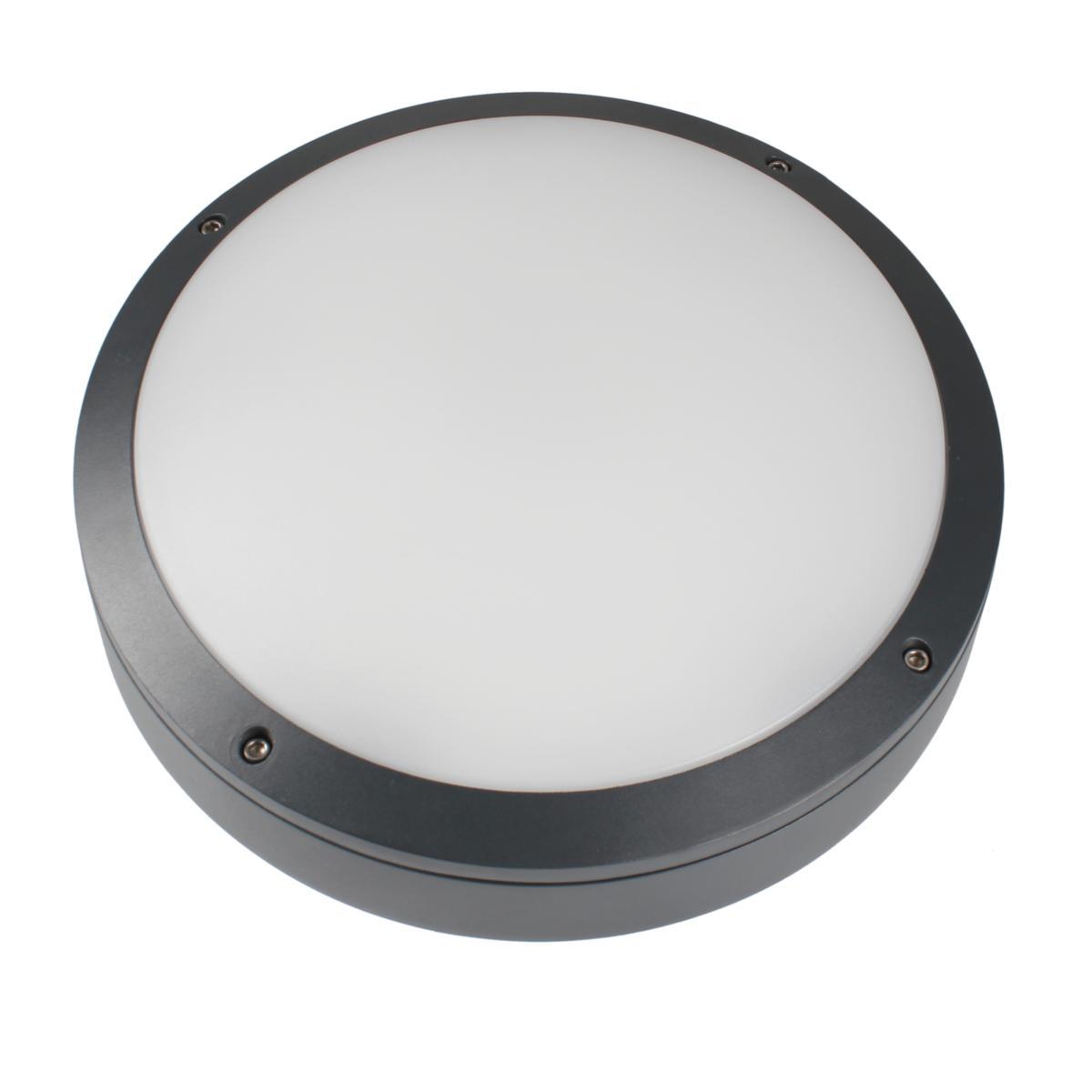

Wall / ceiling luminaire aRmour
WALL/CEIL LUM 1900LM 3000K ANT ARMOUR
Article number:
7704530
to see price and stock
Robust luminaire for mounting on facade, wall or ceiling. Can be completed with crosses or eyelids for decoration or shielding. The luminous flux can be set in four steps from 820lm to 1920lm. Mounted eye lid halves the light flow. Also available with built-in light relay.
- Article number: 7704530
- Ean no: 7333123059659
- Material class QT6800
Technical data
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2-1: 1920 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Lamp type: LED not exchangeable
- Degree of protection (IP): IP65
- Height/depth: 78 mm
- Outer diameter: 275 mm
- Material cover: Plastic, opal
- Housing material: Aluminium
- Surface protection housing: Powder coating
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Colour rendering index CRI: 80-89
- Number of poles: 3
- Dimmable: No
- Conductor cross section: 1.5 mm²
- Suitable for ceiling mounting: Yes
- Colour consistency (McAdam ellipse): SDCM3
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Rated luminous flux according to IEC 62722-2- 1: 1920 lm
- Rated life time L80/B10 at 25 °C: 50000 h
