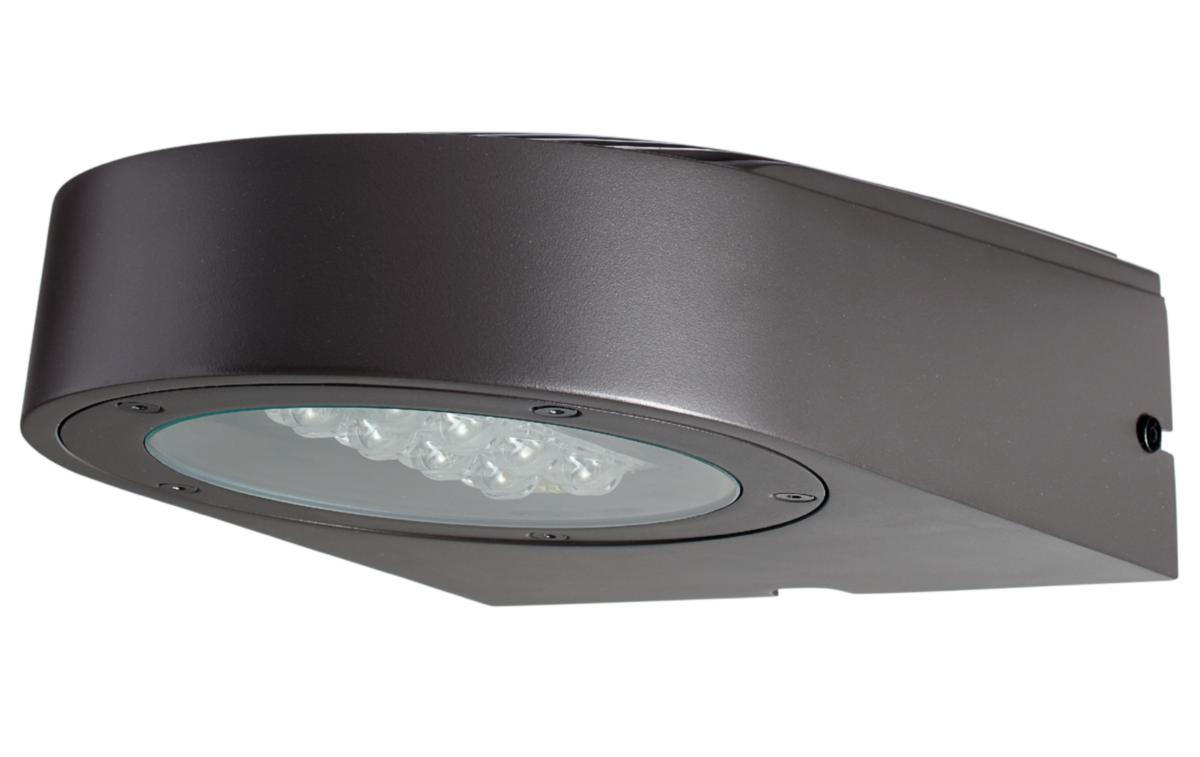

Wall luminaire Fevik, SG-Armaturen
AERO ASYMM G 3000 LED 3000K FEVIK ASYM
Article number: Suppl. article no:
7703919
623250
to see price and stock
Fevik is a versatile luminaire with a slim profile that fits in many environments. Accessories are available in the form of an adjustable wall / corner bracket, pipe arm bracket and bracket for mounting on posts. With these options, it opens up for more creative solutions for lighting over doors, gates and walkways. This model has a radiant light and is available in three different effects.
- Article number: 7703919
- Suppl. article no: 623250
- Ean no: 7021986232509
- Material class QT903A
Technical data
- Packagin Size: 1 ST/6 ST/6 ST/60 ST
- Max. system power: 25 W
- Rated luminous flux according to IEC 62722-2- 1: 2320 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Light distribution: Asymmetric
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 1
- Beam angle: Extreme wide beam >80°
- Lamp holder: Other
- Degree of protection (IP): IP65
- Length: 300 mm
- Width: 223 mm
- Height/depth: 110 mm
- Type of control gear: Not required
- Material cover: Glass transparent
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: No
- With light source: Yes
- Protection class according to IEC 61140: I
- Degree of protection (NEMA): Other
- Impact strength: IK10
- Nominal voltage: 230 V
- Voltage type: AC
- Colour rendering index CRI: 70-79
- Light outlet: Direct
- Number of poles: 2
- Power factor: 0.9
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: Other
- Luminaire efficacy: 93 lm/W
- Suitable for lamp power: 25 W
- Suitable for emergency lighting: No
- Suitable for surface mounting: Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Type of grid: High-gloss
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Photobiological safety according to EN 62471: Other
- Colour consistency (McAdam ellipse): SDCM3
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 16
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 26
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
