Wall fixture LED Cone GU10, Hide-a-lite

LUMINAIRE LED GU10 IP54 WHITE LUMINAIRE CONE GU10 WHITE
Artikelnummer:
7703461
Lev. artikelnr:
7703461
‌
‌
‌
‌
‌
 för att se saldo och pris
Produkten är miljöbedömd av SundaHus

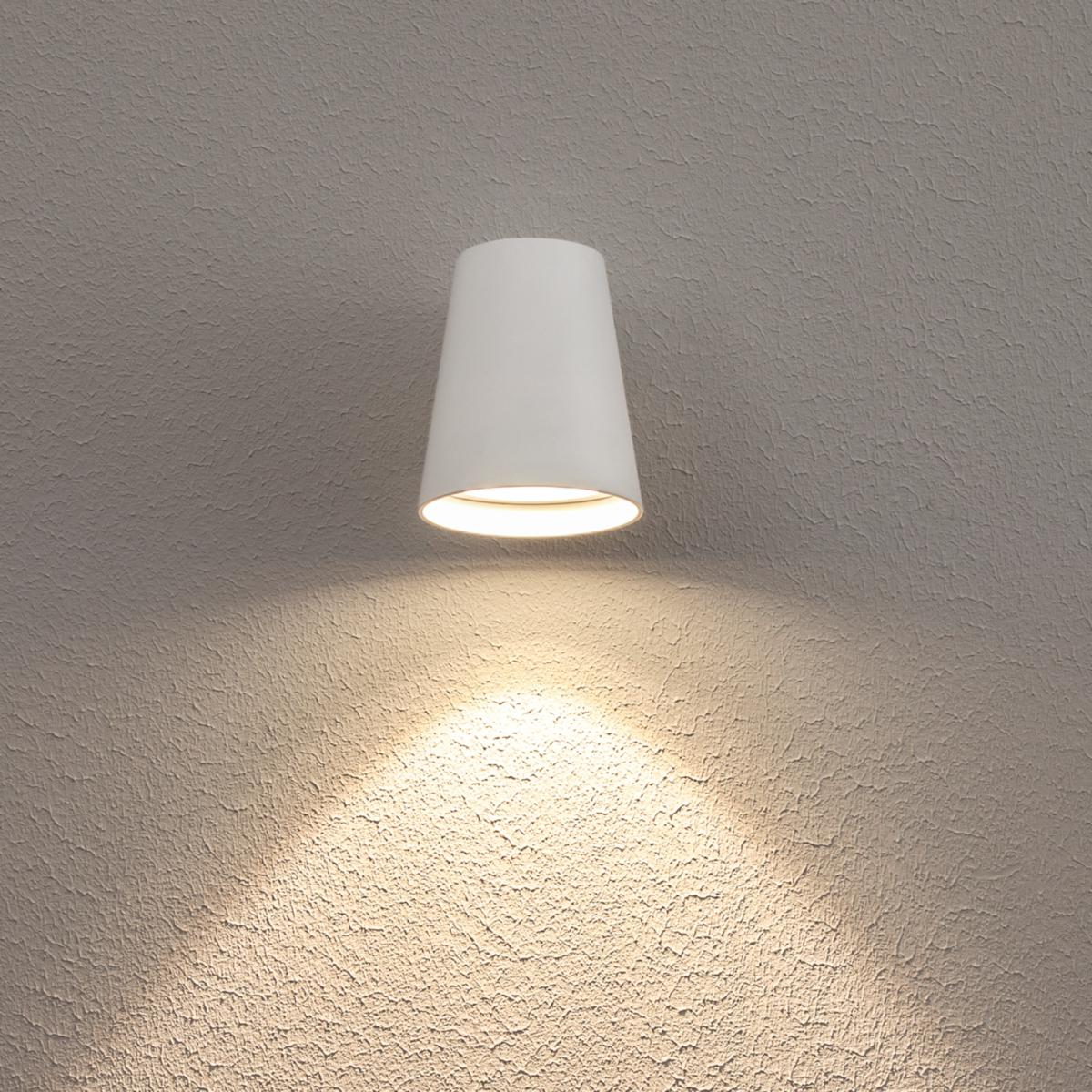

A neat façade luminaire with GU10 base in a stylish cone-shaped design with an asymmetrical light image that illuminates both wall and ground. Easy installation thanks to a separate back piece with double bushings and a connectable quick-connect terminal block. Spacers for surface wiring are included. IP65-rated with durable powder coating for harsh environments, in white, gray or anthracite. Choose the light source yourself for the desired color temperature and brightness.
  • Article number:
    7703461
  • Suppl. article no:
    7703461
  • Ean no:
    7392971133119
  • Material class
    QT902A
Teknisk data
  • Packagin Size: 1 ST/8 ST
  • Dimmable: No
  • Housing colour: White
  • Lamp type: LED exchangeable
  • Lamp holder: GU10
  • Dimming DALI: No
  • Material cover: Glass transparent
  • Length: 140 mm
  • Number of poles: 3
  • Width: 105 mm
  • Height/depth: 135 mm
  • Outer diameter: 105 mm
  • Type of control gear: Not required
  • Housing material: Aluminium
  • With control gear: No
  • With light source: No
  • Protection class according to IEC 61140: I
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Light distribution: Symmetric
  • Light outlet: Direct
  • Covering of the luminaire with thermally insulating material possible: No
  • Type of grid: None
  • Suitable for built-in mounting: No
  • Suitable for light line configuration: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • With light sensor: No
  • With air slots: No
  • With movement sensor: No
  • Suitable for workplace according to EN 12464-1: No
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Suitable for number of light sources: 1
  • Suitable for surface mounting: Yes
  • Suitable for ceiling mounting: No
  • Dimming phase cut-off (trailing edge): No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming phase cut-on (leading edge): No
  • Filament test according to IEC 60695-2-11: None
  • Conductor cross section: 2.5 mm²
  • Light distributor: None
  • Suitable for lamp power: 0-50 W
  • Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Suitable for wall mounting: Yes
  • Connection type: Push-in clamp
  • REACH Date: 2022-06-01
  • Lowest energy efficiency class of the exchangeable lamp: E
  • REACH Information obligation: No
  • Dimming depending on control gear: No
  • Highest energy efficiency class of the exchangeable lamp: A++
  • Dimming GPRS: No
