Hide-a-lite

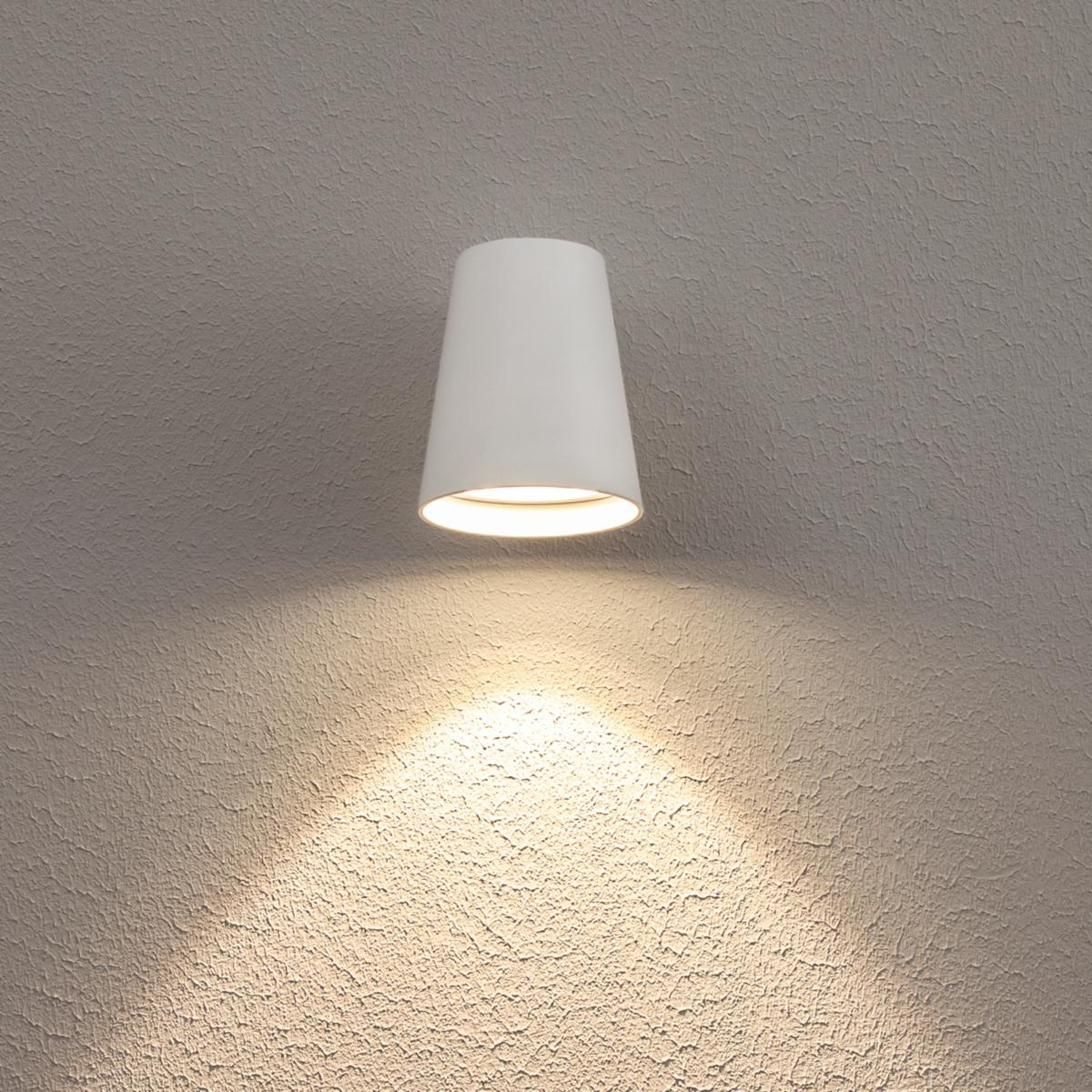

Wall fixture LED Cone, Hide-a-lite
LUMINAIRE LED 3W 3K 160LM WH LUMINAIRE CONE WHITE
Article number: Suppl. article no:
7703458
7703458
to see price and stock
A neat facade luminaire in a stylish cone-shaped design. LED COB with reflector optics provides an asymmetrical light image that illuminates both wall and ground. Easy installation thanks to a separate back piece with double bushings and a connectable quick-connect terminal block. Spacers for surface wiring are included. IP65-rated with durable powder coating for harsh environments, in white, gray or anthracite. Built-in drive with adjustable light level via DIP switch. Possibility of dimming is available with external drive, see operating instructions
- Article number: 7703458
- Suppl. article no: 7703458
- Ean no: 7392971133089
- Material class QT902A
Technical data
- Packagin Size: 1 ST/8 ST
- Max. system power: 3 W
- Rated luminous flux according to IEC 62722-2-1: 160 lm
- Dimmable: No
- Colour temperature: 3000 K
- Housing colour: White
- Lamp type: LED not exchangeable
- Beam angle: 21-40° - Medium beam
- Lamp holder: Other
- Dimming DALI: No
- Material cover: Glass transparent
- Length: 140 mm
- Number of poles: 3
- Width: 105 mm
- Height/depth: 135 mm
- Outer diameter: 105 mm
- Type of control gear: LED operating device current-controlled
- Housing material: Aluminium
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light distribution: Symmetric
- Light outlet: Direct
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 1
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Conductor cross section: 2.5 mm²
- Light distributor: Reflector
- Luminaire efficacy: 54 lm/W
- Rated lifetime L70/B50 at 25 °C: 80000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
