Hide-a-lite

Wall fixture LED Arc, Hide-a-lite

WALLFIXTURE ARC WHITE
Artikelnummer:
7703327
Lev. artikelnr:
7703327
‌
‌
‌
‌
‌
 för att se saldo och pris
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.

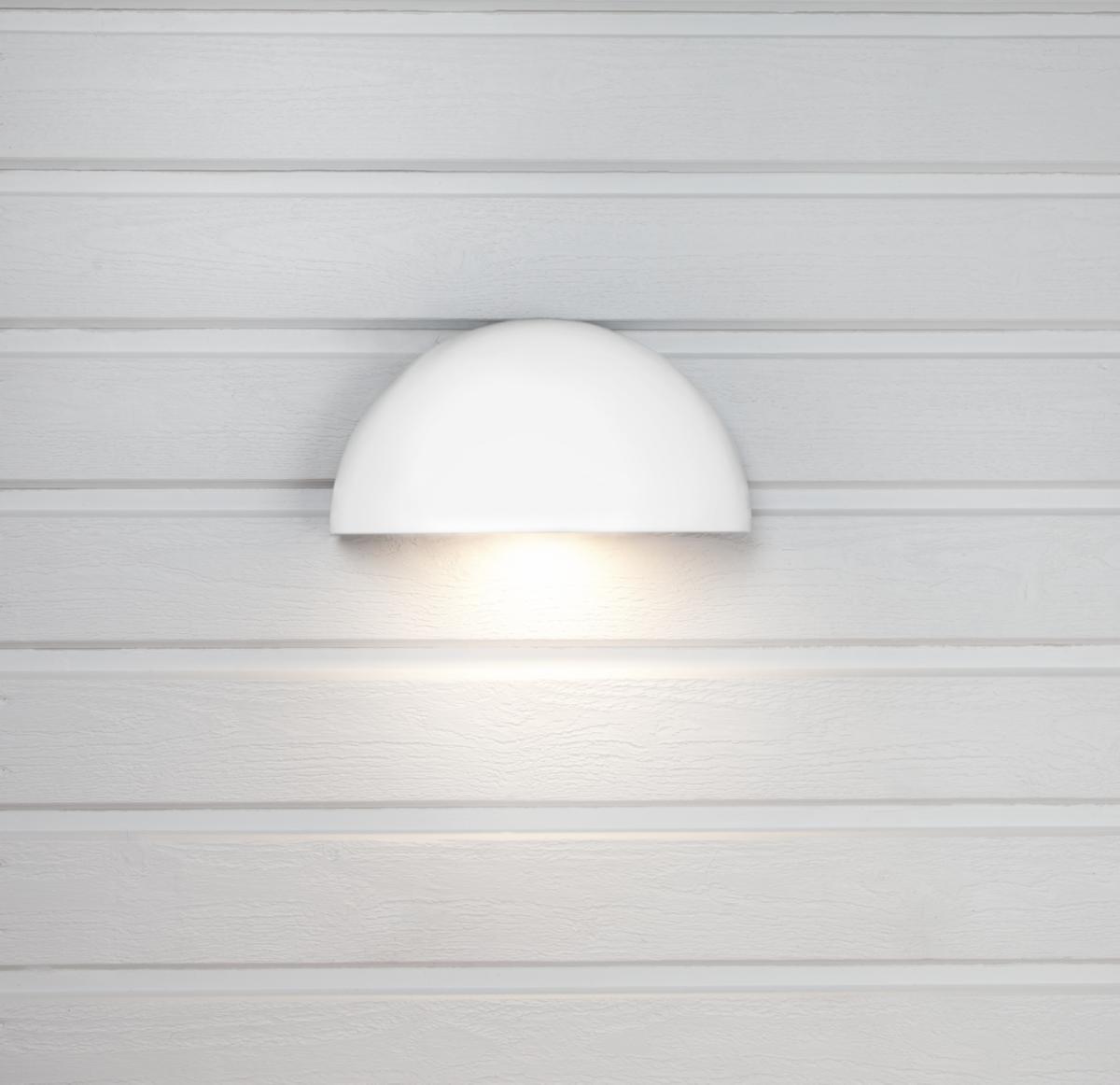

Facade luminaire in traditional design with a pleasantly even and wide light image. The luminaire is available with or without two integrated electrical outlets on the underside, which can be controlled separately if required. Very easy installation - separate back piece with double bushings and divergent quick terminal, plenty of space and few screws. Outlets in the back cover enable surface wiring. Built-in drive with adjustable light level via DIP switch. Can be dimmed via external drive, see operating instructions.
  • Article number:
    7703327
  • Suppl. article no:
    7703327
  • Ean no:
    7392971131290
  • Material class
    QT902A
Teknisk data
  • Packagin Size: 1 ST/4 ST/4 ST
  • Max. system power: 7 W
  • Rated luminous flux according to IEC 62722-2- 1: 370 lm
  • Colour temperature: 3000 K
  • Housing colour: White
  • Dimming DALI: No
  • Type of control gear: LED operating device current-controlled
  • Dimming with push-button: No
  • Length: 270 mm
  • Width: 140 mm
  • Height/depth: 150 mm
  • Degree of protection (IP): IP65
  • Impact strength: IK08
  • Protection class according to IEC 61140: I
  • Colour consistency (McAdam ellipse): SDCM3
  • Housing material: Aluminium
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • With control gear: Yes
  • Suitable for light line configuration: No
  • Rated lifetime L70/B50 at 25 °C: 80000 h
  • Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
  • Colour rendering index CRI: 80-89
  • Material cover: Plastic, opal
  • Luminous intensity: 225 cd
  • Lamp type: LED not exchangeable
  • Suitable for built-in mounting: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • Suitable for surface mounting: Yes
  • With light source: Yes
  • With light sensor: No
  • With movement sensor: No
  • Suitable for ceiling mounting: No
  • Type of grid: None
  • Beam angle: > 80° - Extreme wide beam
  • Suitable for workplace according to EN 12464-1: No
  • Covering of the luminaire with thermally insulating material possible: No
  • Number of poles: 3
  • Conductor cross section: 2.5 mm²
  • Dimming phase cut-off (trailing edge): No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming Touch and Dim: No
  • Dimming phase cut-on (leading edge): No
  • Dimmable: No
  • Colour of light: White
  • Luminaire efficacy: 53 lm/W
  • Type of wiring: Suitable for loop-through wiring
  • Operation by Bluetooth: No
  • Emergency power supply integrated: No
  • Surface protection housing: Powder coating
  • Light distribution: Asymmetric
  • Light distributor: Reflector
  • Suitable for wall mounting: Yes
  • Connection type: Push-in clamp
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Light outlet: Direct
  • Suitable for number of light sources: 1
  • With air slots: No
  • REACH Date: 2022-06-01
  • Dimming LineSwitch: No
  • Dimming Sine Wave Reduction: No
  • REACH Information obligation: No
