Westal

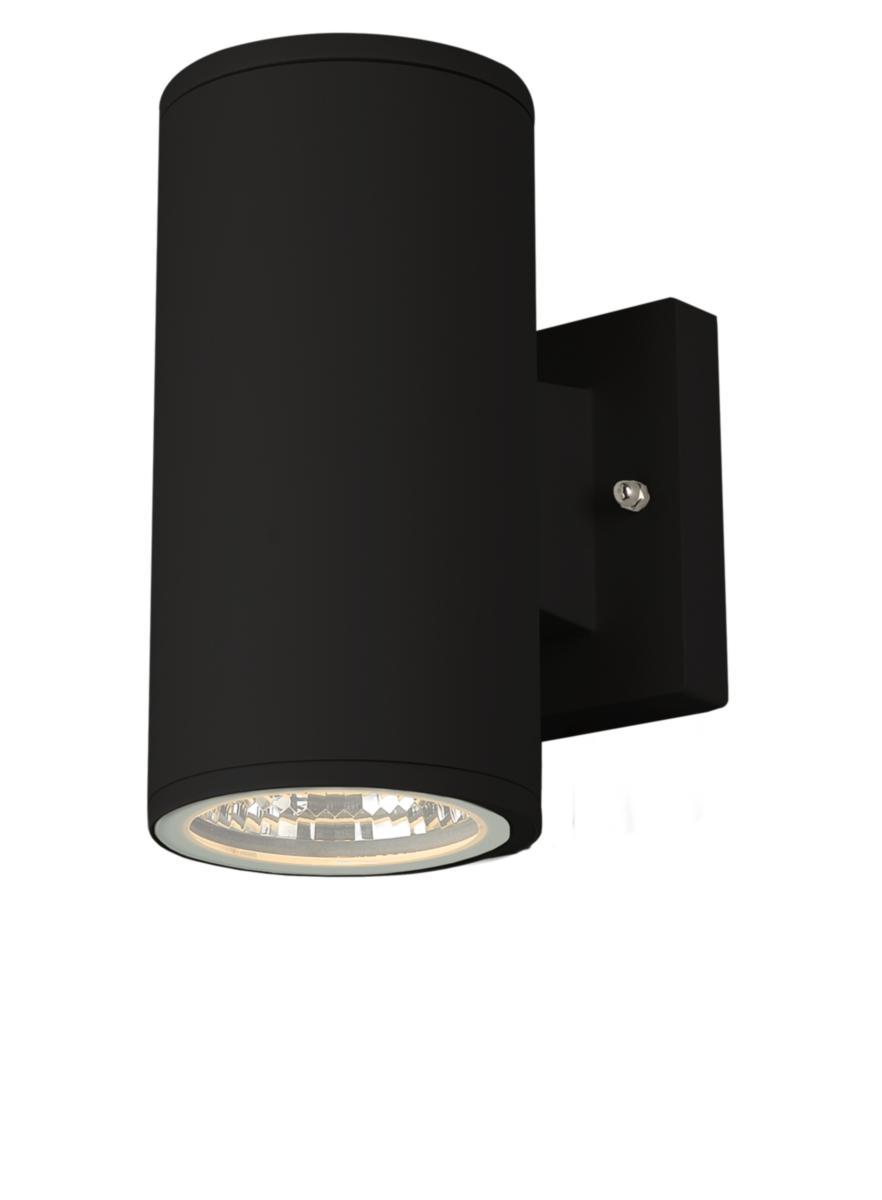

Wall fixture LED Heron II, Westal

WALL LUM 2X6W 3K 2X854LM S
Artikelnummer:
7703184
Lev. artikelnr:
2951-60
‌
‌
‌
‌
‌
 för att se saldo och pris
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Wall luminaire with up and down lights. Anodised and powder-coated aluminum frame. The luminaire is equipped with LED COB of 2x6W. The color temperature is warm white, 3000K with a light image that shines up and down, 2x854lm. The drive is integrated and the back piece has an input / output. The luminaire is for outdoor use, IP54 but is also suitable for indoor use as well as in both private and public environments.
  • Article number:
    7703184
  • Suppl. article no:
    2951-60
  • Ean no:
    7393041295164
  • Material class
    QT904A
Teknisk data
  • Packagin Size: 1 ST/12 ST/12 ST
  • Max. system power: 12 W
  • Rated luminous flux according to IEC 62722-2- 1: 960 lm
  • Colour temperature: 3000 K
  • Housing colour: Black
  • Light distribution: Symmetric
  • Lamp type: LED not exchangeable
  • Suitable for number of light sources: 2
  • Beam angle: Medium beam 21-40°
  • Degree of protection (IP): IP54
  • Length: 185 mm
  • Width: 90 mm
  • Height/depth: 130 mm
  • Type of control gear: LED operating device current-controlled
  • Material cover: Glass transparent
  • Housing material: Aluminium
  • Surface protection housing: Powder coating
  • With control gear: Yes
  • With light source: Yes
  • Protection class according to IEC 61140: I
  • Impact strength: IK08
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Colour rendering index CRI: 80-89
  • Light outlet: Direct
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Dimmable: No
  • Conductor cross section: 2.5 mm²
  • Colour of light: White
  • Light distributor: Reflector
  • Luminaire efficacy: 142 lm/W
  • Suitable for built-in mounting: No
  • Suitable for light line configuration: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • Suitable for surface mounting: Yes
  • With light sensor: No
  • With movement sensor: No
  • Rated lifetime L70/B50 at 25 °C: 50000 h
  • Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
  • Suitable for ceiling mounting: No
  • Type of grid: None
  • Type of wiring: Suitable for loop-through wiring
  • Suitable for wall mounting: Yes
  • Connection type: Screwed terminal
  • REACH Date: 2021-12-08
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: No
